YSM10-BOM - 第41页
2 3 11 12 1 31 18 44 41 23 33 (47) 35 27 48 29 26 23 (37) 13 39 48 47 22 42 48 42 46 38 15 20 10 19 43 14 37 17 16 23 24 8 25 32 45 9 28 34 5 7 21 40 36 30 4 6 5 2 3 11 12 1 31 18 44 41 23 33 (47) 35 27 48 29 26 23 (37) …
13
12
13
12

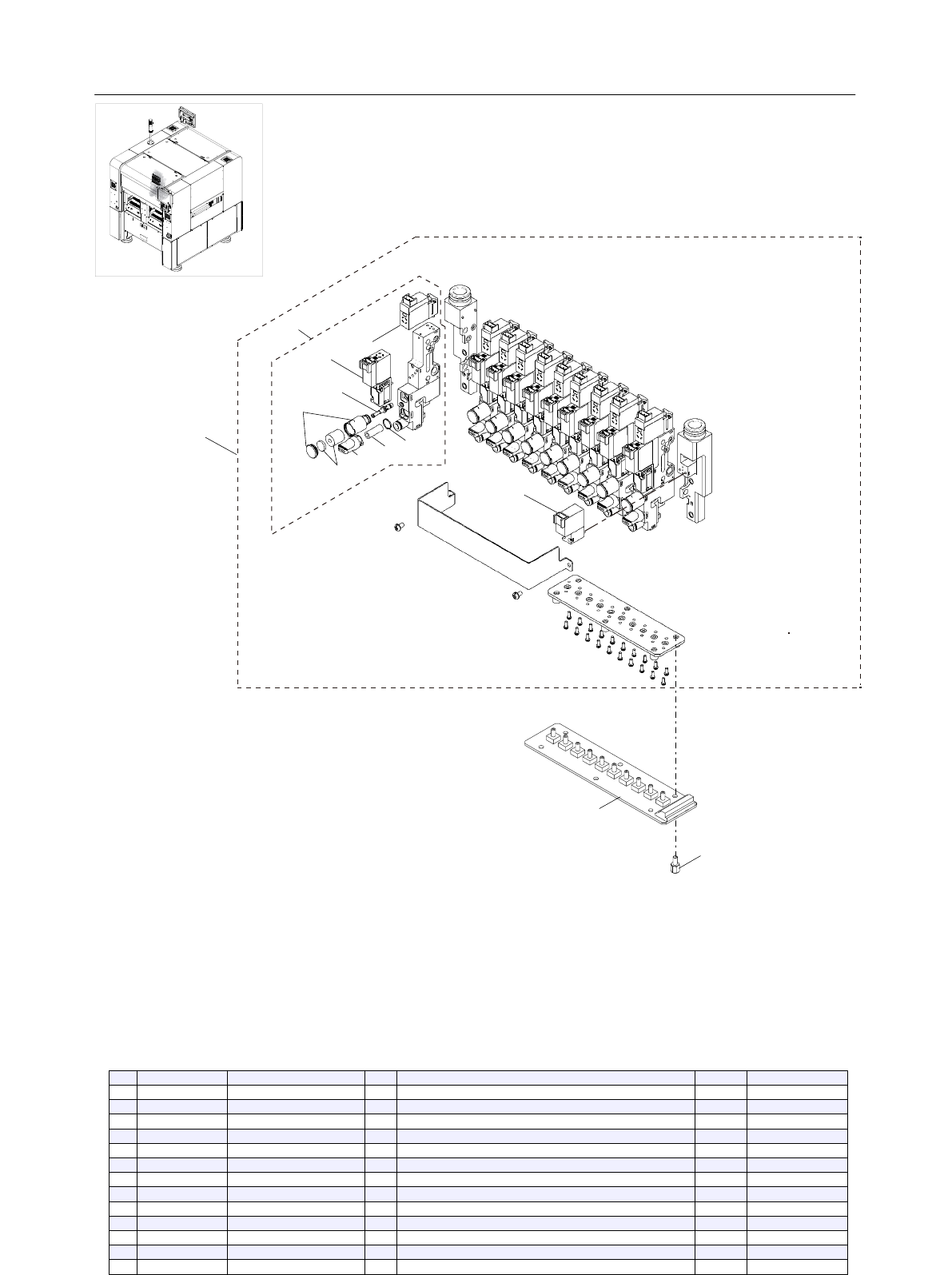

Ejector (HM)
Head Section
KMG-1702
5-12
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KLW-M7151-04
EJECTOR,RESIN
1
YV201 ~ YV221
2
KLF-M7152-00
VALVE
1
YV201,-3,-5,-7,-9,-11,-13,-15,-17,-19 : for head blow
3
KLF-M7153-00
VALVE
1
YV202,-4,-6,-8,-10,-12,-14,-16,-18,-20 : for vacuum generating
4
KLW-M7154-00
BIT
1
5
KLW-M7156-00
BIT CAP
1
6
KLW-M7157-00
EJECTOR
1
7
KLW-M7158-00
VALVE
1
YV221 : for shaft blow
8
KLW-M715A-00
MUFFLER
1
9
KLW-M715B-00
GASKET
1
10
KLW-M8527-00
FILTER
1
11
KLW-M7155-00
FILTER CAP
1
12
KHY-M4592-01
VAC SENSOR BRD ASSY
1
P073 : VAC
13
90563-23J060
SPACER BOLT
4
6
10
9
3
8
7
5
1
4
2
11
2
3
11
12
1
31
18
44
41
23
33
(47)
35
27
48
29
26
23
(37)
13
39
48
47
22
42
48
42
46
38
15
20
10
19
43
14
37
17
16
23
24
8
25
32
45
9
28
34
5
7
21
40
36
30
4
6
5
2
3
11
12
1
31
18
44
41
23
33
(47)
35
27
48
29
26
23
(37)
13
39
48
47
22
42
48
42
46
38
15
20
10
19
43
14
37
17
16
23
24
8
25
32
45
9
28
34
5
7
21
40
36
30
4
6
5
Scan Unit (HM)
Head Section
KMG-1704
5-13
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KMG-M7850-00
SC MOTOR ASSY.
1
M43 : SC-axis
2
KMG-M78C0-00
SCAN CAM. ASSY.,CX.
1
3
KLW-M78H0-00
HNS.SCAN ASSY.
1
4
KHY-M13D8-00
STICKER
1
head number guide sticker
5
90K41-001400
LABEL,CAUTION
2
"Strong magnetic field" pictogram
6
90K41-001330
LABEL,CAUTION
1
"Do not touch." message
7
90K43-200580
LABEL,SERIAL
1
manufacturing serial number
8
KMG-M7A13-00
DIFFUSER, MAIN
1
9
KMG-M7A16-00
COVER,PRIZM
1
10
KMG-M7A21-01
COVER,LIGHT
1
11
KMG-M755S-00
SC.LIGHT BRD. SET
1
12
KMG-M7A30-00
SIDE LIGHT ASSY.
1
13
KMG-M7A31-00
BLOCK,LIGHT SIDE
1
14
KHY-M7A34-01
DIFFUSER, SIDE
1
15
KMG-M7905-00
SC.SV.LIGHT BRD ASSY
1
16
90990-08J020
SCREW, PAN HEAD
3
17
90990-28J002
WASHER,PLAIN
3
18
KMG-M7A41-00
DIFFUSER,COAX.
2
19
KMG-M78C2-00
AR SHEET
1
20
KMG-M78C3-00
AR SHEET
1
21
90K41-001320
LABEL,CAUTION
1
"Do not touch." pictogram
22
KMG-M66N2-00
HNS,SCAN LIGHT
1
J0521 : SCAN
23
90990-08J018
SCREW, PAN HEAD
8
24
90990-08J020
SCREW, PAN HEAD
1
25
90990-08J026
SCREW, PAN HEAD
4
26
90990-55J001
CLAMP, CABLE
1
27
90112-02J008
BOLT,HEX.SOCKET HEAD
2
28
90112-2AJ005
BOLT,HEX.SOCKET HEAD
4
29
98902-03006
SCREW, BINDING HEAD
1
30
KLW-M78H1-00
PLATE,CABLE
1
31
KLW-M78H2-00
BRACKET,CABLE
1
32
KLW-M78H3-00
TAPE,SCAN CABLE
1
33
KLW-M78H5-00
BRACKET,CONNECTOR
1
34
KLW-M78H6-00
PLATE,CLAMP
1
35
KLW-M78H7-00
COVER,SENSOR
1
36
KLW-M78H8-00
CLAMP,CABLE
1
37
KLW-M66JA-00
HNS,SCAN FLEX
1
J0511 : connected to [2]
38
90172-00J030
WASHER,EXTL.TOOTHED
1
39
90172-00J040
WASHER,EXTL.TOOTHED
1
40
90990-01J106
BOLT,HEX.SOCKET HEAD
4
41
90990-01J107
BOLT,HEX.SOCKET HEAD
4
42
90990-11J001
SCREW, PAN HEAD W/W
2
43
90990-11J006
SCREW, PAN HEAD W/W
1
44
91312-03005
BOLT,HEX.SOCKET HEAD
2
45
91312-03008
BOLT,HEX.SOCKET HEAD
6
46
$NK-3N
NYLON CLIP
1
47
90K30-534006
HNS,EARTH
1
J0678 : connected to [2]
48
KGS-M5184-00
SEAL,EARTH 1
3
70 pieces per sheet : split piece by piece from sheet
6
1
5
2
4
15
3
22
9
19
15
8
21
7
14
11
17
18
10
12
23
16
13
16
20
5
6
1
5
2
4
15
3
22
9
19
15
8
21
7
14
11
17
18
10
12
23
16
13
16
20
5
Fiducial Camera (HM)
Head Section
KMG-1704
5-14
NO
Parts_No.
Parts_Name
Q'ty
Remarks
Compati
Revision_No._date
1
KMC-M7620-00
VISION ATTACHMENT R
1
<Preset>
2
KMG-M71CC-00
COVER,MULTI
1
<Preset> in case of Non-"W-FID CAMERA"
3
91312-03006
BOLT,HEX.SOCKET HEAD
1
fix [2]
4
91312-04006
BOLT,HEX.SOCKET HEAD
2
fix [2]
5
90K41-001320
LABEL,CAUTION
2
"Do not touch." pictogram
6
KMC-M7610-00
VISION ATTACHMENT L
1
<OP> in case of "W-FID CAMERA"
7
KLW-M7601-00
HOLDER,CAMERA
1
8
KLW-M76L4-00
STAY,FID. LIGHT
1
9
KLW-M76A0-00
FIDUCIAL LIGHT ASSY.
1
10
KLW-M7210-00
CCD CAMERA
1
11
KHT-M76B0-00
LENS FID.
1
12
KLW-M71C1-00
BRACKET,RIGHT
1
13
KLW-M71C6-00
COVER,CAMERA R
1
14
90563-04J100
SPACER
1
15
91312-03008
BOLT,HEX.SOCKET HEAD
6
16
91312-04006
BOLT,HEX.SOCKET HEAD
3
17
91312-04025
BOLT,HEX.SOCKET HEAD
2
18
91312-04040
BOLT,HEX.SOCKET HEAD
2
19
99480-04010
PIN,PARALLEL
2
20
KLW-M66K4-00
HNS,FID.CAM1
1
J0721
21
KLW-M71C2-00
BRACKET,LEFT
1
22
KLW-M71C8-00
COVER,CAMERA L
1
23
KLW-M66K5-00
HNS,FID.CAM2
1
J0722
