P Switch-disconnectors - Overview
Catalogue number system
Surface mounting ‘SE’ P1 and P3 switch-disconnectors tted in steel enclosure
P - Rated
current
(Amps)
/ Steel enclosure
type
/ Switch type, handle type / Accesories
P1 25 (P1 only) SE1 (P1 only)
SE3 (P3 only)
SVB: Main switch with red/yellow handle
32 (P1 only) SVB-SW: Main switch with black handle
40 (P1 only)
P3 63 (P3 only) (Blank) Switch with ON-OFF function
100 (P3 only)
P - Rated
current
(Amps)
/ Mounting form, switch type, handle type / Accesories
P1 25 (P1 only) V/SVB: Rear mounting, main switch with red/yellow handle
V/SVB-SW: Rear mounting, main switch with black handle
M4/SVB:Rear mounting, main switch with 400 mm extension shaft with red/yellow
handle
M4/SVB-SW: Rear mounting, main switch with 400 mm extension shaft with blank
handle
M4/K2-P..: Main switch with 400 mm extension shaft with K Line K2 handle,
padlockable
Z : ON-OFF switch with black thumb grip and front plate
Z/SVA(A) : ON-OFF switch with black thumb grip and front plate and SVA cylinder locks
32 (P1 only)
40 (P1 only)
P3 63 (P3 only)
100 (P3 only)
P5 125 (P5 only)
160 (P5 only)
250 (P5 only)
315 (P5 only)
Rear mounting ‘V/SVB’, ‘M4’ and ‘Z’ P1, P3 and P5 switch-disconnectors
Service distribution board mounting ‘IVS’ P1, P3 and P5 switch-disconnectors
P - Rated
current
(Amps)
/ Mounting form, switch type, handle type
P1 25 (P1 only) IVS: ON-OFF Service distribution board mounting switch with black thumb grip and
front plate
IVS-RT: ON-OFF Service distribution board mounting switch with red thumb grip
32 (P1 only)
40 (P1 only)
P3 63 (P3 only)
100 (P3 only)
For any Switch-disconnectors that currently holds a North American (NA) approval, a NA style variant can be made available to
order, please contact your local sales representative for more information.
9EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
T Rotary Cam switches - Overview
TM T0 T3 T5B T5 T6 T8
Rated current (Amps) ≤10 20 32 63 100 160 315
Rated voltage (V a.c.) 500 V 690 V 690 V 690 V 690 V 690 V 690 V
Max motor rating AC-23A 400/415 V 50/60 Hz 3.0 kW 6.5 kW 13 kW 22 kW 30 kW 55 kW 132 kW
Switch-disconnectors
Main switches maintenance/manual override switches
On-Off switches
Changeover switches
Reversing switch with 0 position
Star-delta switches
Reversing star-delta switches
Multi-speed switch
Reversing multi-speed switches
Control switches
Step switches
Control circuit isolators
On-Off switches
Changeover switches
Manual/Auto switches
On switches
Universal control switches
Coding switches
Series switches
Instrument selector switches
Mini Cam Group switches
Mini Cam ON-OFF switches
Mini Cam Reversing switches
Switches with locking mechanism - Panic switch
With cylinder lock SVA
With padlocking feature SVC
On-Off switch without emergency stop function
Mounting forms
‘E’ Flush mounting
‘EA/SVB’ Flush mounting main switch
‘EZ’ Centre mounting
‘I’ Enclosed switch-disconnector fitted in Ci-K Enclosure
‘IVS’ Service distribution board mounting
‘MBS’ Enclosed switch-disconnector fitted in Ci-K Enclosure, with
pre-assembled EMC screen
‘SE’ Enclosed switch-disconnectors fitted in steel enclosures
‘V/SVB’ Rear mounting main switches
‘Z’ Rear mounting
Range overview by switch-disconnectors type and mounting forms
10
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
T Rotary Cam switches - Overview

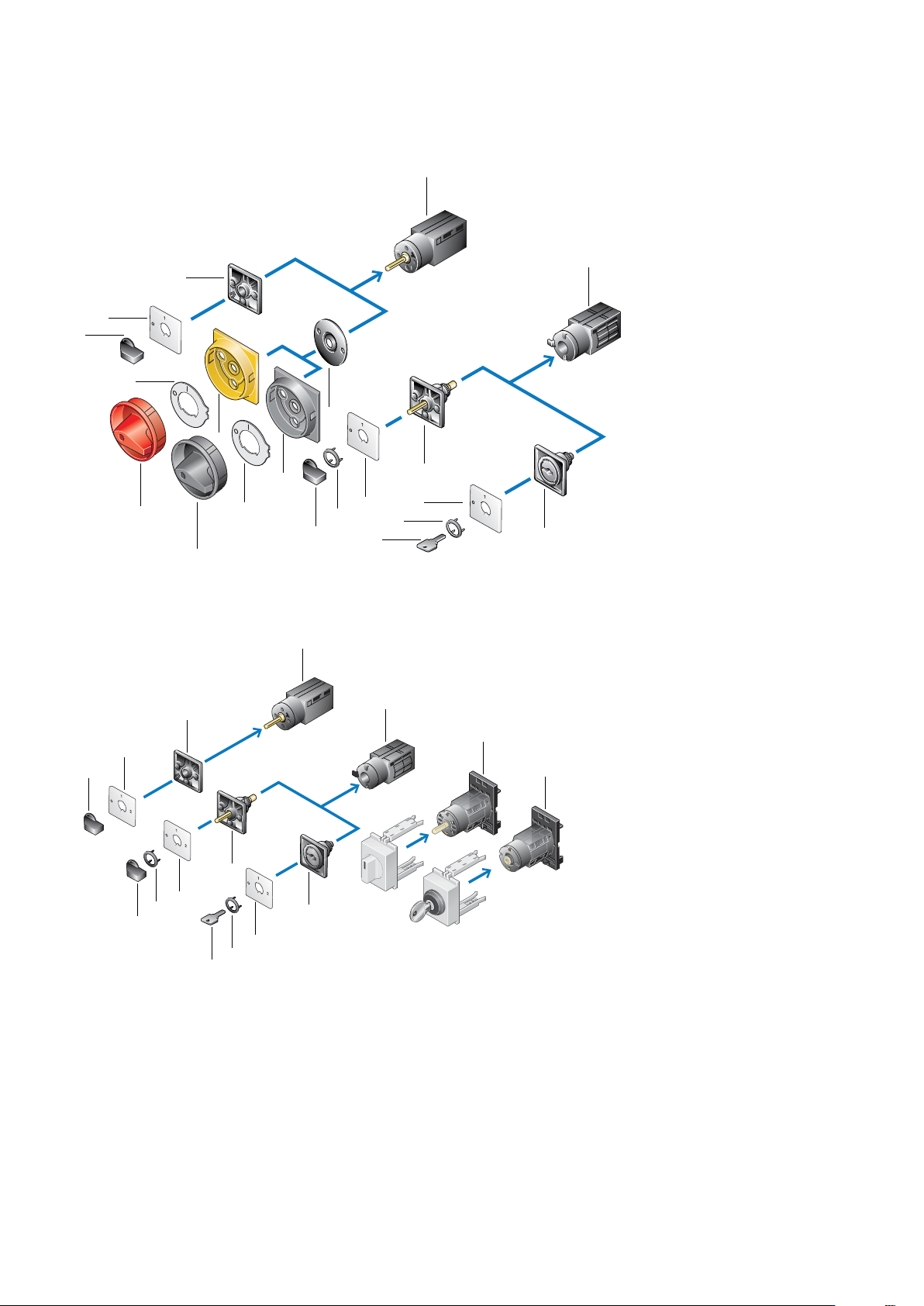

System overview
AUTO
HAND
O
1
0
2
9
3
4
4
4
5
6
6
6
7
7
8
1
9
TM - Control switches
TM Switch-disconnectors
1
2
5
3
4
4
4
6
6
6
7
8
8
8
8
9
8
9
10
8
1. Flush mounting
2.Center mounting
3 and 4 . Key operation for center mounting
5 and 6. Standard switches for center mount-
ing
7 and 8. Control circuit isolators
9 and 10. Standard switches for ush mount-
ing
1. Flush mounting
2.Center mounting
3 and 4 . Key operation for center mounting
5 and 6. Standard switches for center mount-
ing
7 and 8. Standard switches for ush mounting
9. Service distribution board mounting
