Enclosed switch-disconnectors
P1 Switch-disconnector
fitted in a Ci-K
Polycarbonate enclosure
T3 Switch-disconnector
fitted in a steel
enclosure
Photos are representative
Description
Enclosed switch-disconnectors can be installed alongside
traditional panels and assemblies, or as a standalone unit for
external applications (such as HVAC systems) with robust ingress
protection.
Standards/Approvals
See details page 178
Technical data
•
Voltage: 690 V a.c.
•
Current: 20 A to 275 A
Features
•
Available with or without emergency switching off/emergency stop
function
•
Available with and without auxiliary contacts
•
Available with red rotary handle and yellow locking collar and black
rotary handle and locking collar
•
1-pole to 8-pole options
•
Ci-K enclosed units can be optionally ordered with a North
American style variant, see details page 152
Soft and hard knockouts
Standard Ci-K enclosure have “soft knockouts” which utilises a
soft puncturable cable membrane for connection of supply and
load lines while maintaining ingress protection.
Hard knockouts are also referred to as metric knockouts, and are
made of a solid plastic where the central retainer is “knocked out”
from the enclosure, and a metric gable gland is used to secure
the ingress of supply and load lines
An option of “hard knockouts” are available for some products
as a standard selection, these can be identied within the part
number by the inclusion of hte letter ‘H’ after the enclosure size,
e.g. I1H or I2H. They can be requested, if the option is not stated
in the catalogue, for enclosure sizes I1 and I2
Parts numbers for ordering the optional hard knockouts and
associated cable glands can be found on page 151.
114
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Enclosed switch-disconnectors - Range overview
Rated current 20 A 25 A 32 A 40 A 63 A 95 A 100 A 160 A 275 A
On-Off switch-disconnectors
T0 P1 P1 T3 P1 P3 T5B P3 T5
Without auxiliary contacts
With auxiliary contacts
Main switch-disconnectors
T0 P1 P1 T3 P1 P3 T5B T5 P3 T5 T6 T8
Without auxiliary contacts
With auxiliary contacts
Changeover swtich-disconnectors
T0 T3 T5B T5
Without auxiliary contacts
Coding switch-disconnectors
T0
Without auxiliary contacts
Heater switch-disconnectors
T0
Without auxiliary contacts
Manual/auto switch-disconnectors
T0
Without auxiliary contacts
Multi speed switch-disconnectors
T0 T3 T5B
Without auxiliary contacts
Reversing switch-disconnectors
T0 T3 T5B
Without auxiliary contacts
Safety switch-disconnectors
P1 P1 P1 P3 T5B P3 T5
With auxiliary contacts
Selector switch-disconnectors
T0
Without auxiliary contacts
Star delta switch-disconnectors
T0 T3 T5B
Without auxiliary contacts
Step switch-disconnectors
T0
Without auxiliary contacts
Universal switch-disconnectors
T0
Without auxiliary contacts
115EATON P Switch-disconnectors and T Rotary cam switches CA042001EN

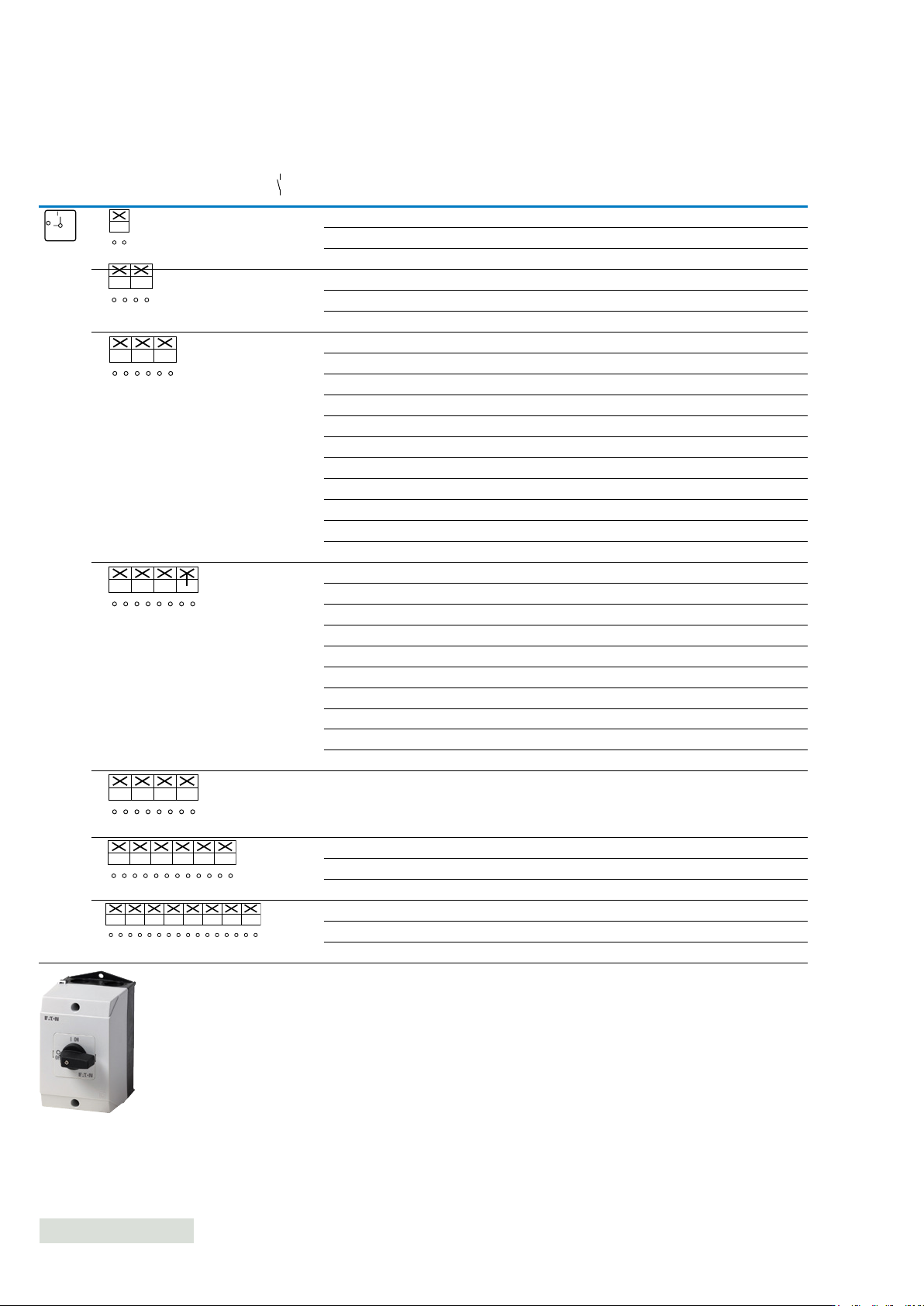

Enclosed - On-Off switch-disconnectors without auxiliary contacts
Number
of poles Suitable for
export to
North America
(US and
Canada)
Padlockable
handle
Front
plate Contact sequence
Rated
current Part number
Article
number
Pack
qty
1 20 A T0-1-8200/I1 207074 1 X X
32 A T3-1-8200/I2 207167 1
X
63 A T5B-1-8200/I4 207218 1
X
2 20 A T0-1-102/I1 207061 1 X X
32 A T3-1-102/I2 207165 1
X
63 A T5B-1-102/I4 207215 1
X
3 20 A T0-2-1/I1 207081 1 X X
20 A T0-2-15403/I1 207088 1 X X
25 A P1-25/I2 207299 1
X
25 A P1-25/I2H 226898 1 X X
32 A P1-32/I2 207320 1
X
32 A P1-32/I2H 227866 1 X X
40 A P1-40/I2 199906 1 X X
40 A P1-40/I2H 199915 1 X X
63 A P3-63/I4 207356 1
X
80 A P3-80/I5 EP-400979 1
X
100 A P3-100/I5 207381 1
X
3 + N 20 A T0-2-8900/I1 207109 1 X X
25 A P1-25/I2/N 207303 1
X
25 A P1-25/I2H/N 226901 1 X X
32 A P1-32/I2/N 207324 1
X
32 A P1-32/I2H/N 227869 1 X X
40 A P1-40/N 199908 1 X X
40 A P1-40/I2H/N 199921 1 X X
63 A P3-63/I4/N 207360 1
X
80 A P3-80/I5/N EP-400981 1
X
100 A P3-100/I5/N 207385 1
X
4 20 A T0-2-1540-I1 207089 1 X X
6 20 A T0-3-8342/I1 207131 1 X X
32 A T3-3-8342/I2 207187 1
X
63 A T5B-3-8342/I4 207226 1
X
8 20 A T0-4-8344/I1 207139 1 X X
32 A T3-4-8344/I2 207194 1
X
63 A T5B-3-8344/I4 207233 1
X
FS 908
ON
OFF
1
2
01
1
2
3
4
01
1
2
3
4
5
6
01
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
7
8
9
10
01
11
12
1
2
3
4
5
6
7
8
9
10
01
11
12
13
14
15
16
226898
N/O
Switch-disconnector tted in Ci-K Polycarbonate enclosure, without emergency switch o/emergency stop function
Photo is representative
