Enclosed - Universal control switch-disconnectors
Contact sequence
Suitable for
export to
North America
(US and
Canada)
Padlockable
handleFront plate
Rated
current Part number
Article
number
Pack
qty
Maintained switches with 3 positions
1 Contact closed in each position
- Additionally 1 contact closed in position 0 and 1
- Additionally 1 contact closed in position 0 and 2
- Additionally 1 contact closed in position 0 and 3
20 A T0-3-15391/I1 207112 1
X
Automatic (spring) return from positions 1 and 2
20 A T0-3-15394/I1 207113 1
X
FS 429
0
2
1
FS 458
0
12
1
2
3
4
5
6
7
8
9
10
11
12
201
1
2
3
4
5
6
7
8
9
10
11
12
2 01
207113
Switch-disconnectors tted in polycarbonate Ci-K Enclosure, without emergency switch o/emergency stop function
Photo is representative
150
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Enclosed switch-disconnectors dedicated accessories
IP65 Insulated enclosures
Description
Number of
contact units Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
IP65 insulated enclosure -
With metric knockouts (hard
knockouts)
Only available
together with
basic unit
+I1H 105870 1
X T0 Surface mounting I1
+I2H 105871 1
X T3 Surface mounting I2
X P1 Surface mounting I2
105870/ 105871
Neutral terminals
Description Flex cable Suitable for Part number Article
number
Std.
pack
For connection of a 5
th
conductor 1-4 mm² CI-K1, CI-K2 K-CI-K1/2 207451 20
1.5-16 mm² CI-K4 K-CI-K4 206916 20
10-35 mm² CI-K5 K-CI-K5 218488 20
Exterior mounting angle brackets
Description Suitable for Part number Article
number
Std.
pack
4 angle brackets per set CI-K4, CI-K5 AB-CI-K4/5 206914 1 off
Cable glands
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)
Suitable
for Mounting
Cable gland for metric
knockouts (hard knockouts)
V-M25 206911 1
X T0 Surface mounting I1 and I2
KT-M25 207603 1
X T3 Surface mounting I1 and I2
X P1 Surface mounting I1 and I2
207603206911
207451
206914
Photos are representative
Mounting plate shield
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for
To connect the shielding MBS-I2
(1)
290191 1
CI-K2 Polycarbonate enclosure
MBS-I4
(1)
118742 1
CI-K4 Polycarbonate enclosure
290191
151EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Enclosed switch-disconnectors dedicated accessories

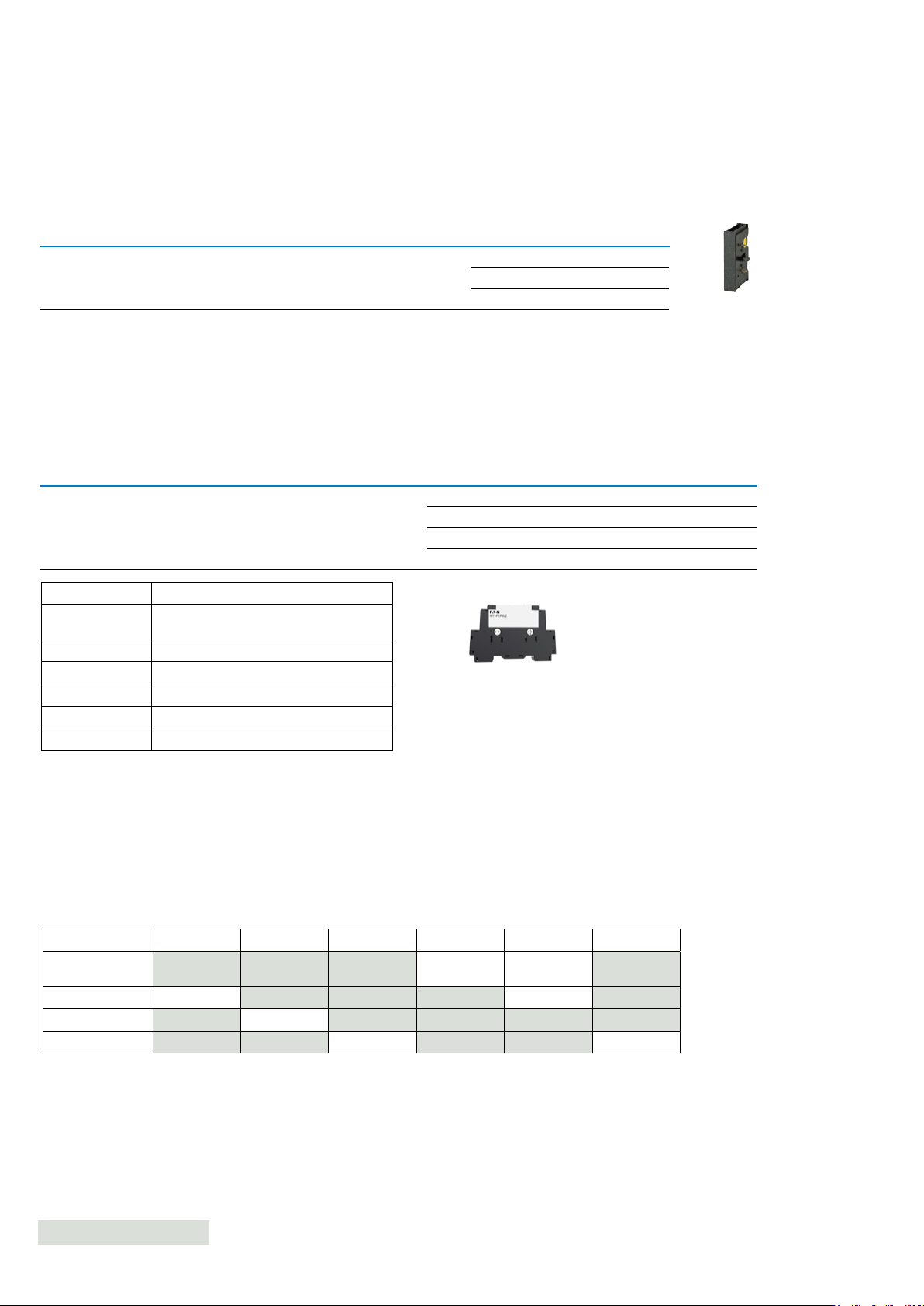

Neutral terminal
•
Early make on switching, late-break off switching
•
The N contact always behaves as an early-make contact when switching on and as a late-break contact for when switching off.
•
N-P1(P3)...switching capacity same as for contacts P1(P3)
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For P1.../I2 optionally,
NP1Z or HI11-P1/P3Z, can only
be fitted on the left
N-P1Z 000652 5
P1 Surface mounting /I2
P3-63 Surface mounting /I4
P3-100 Surface mounting /I5
Auxiliary contacts - 1 normally open (N/O), 1 normally close (N/C)
Late break on switching, early-make off switching. The N/O is always connected as a load-shedding contact
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For P1.../I2 optionally,
NP1Z or HI11-P1/P3Z, can only be fitted
on the left
HI11-P1/P3UZ
(1)
EP-400892 5
P1 Surface mounting /I2
P3-63 Surface mounting /I4
P3-63 Rear mounting /V or /Z
P3-100 Surface mounting /I5
P1 P3-63 P3-100 T0 T3 T5B
Mounting form
/E, /EA,/EZ, /Z, /V, /IVS
+NA-12 105864 +NA-12 105864
/I2 +NA-12 105866 +NA-12 105866
/I4 +NA-12 105866
/I5 +NA-12 105869 +NA-15 105869
P Switch-disconnectors and T cam switches in North American (NA) version
In its NA version the cam switch features a terminal inscription in English and/or a terminal inscripiton deviating from the IEC standard.
Switches in mounting types I2 to I4 feature an additional inscription on the enclosure’s front (e.g. part no and protection type). Not
possible in combination with key operation lock mechanism S-T0, SVA-T3 and SVC-T3
An overview of these cam switches can be found in the instructional leaflet AWA 1150-2327.
000652
(1)
Product standards UL 60947-4-1, CSA - C22-.2 No 14-05
IEC/EN 60947-3, CE Marking, UKCA Marking
UL File No E36332
UL CCN NLRV
CSA File No 12528
CSA Class No 3211-05
NA Certification UL Listed, CSA Certified
Photos are representative
EP-400892
