Flush mounting switch-disconnectors Description Fl ush m oun tin g sw it ch - dis conn ec to rs c an b e easil y in s ta lle d, usin g t wo - ho le s crew m oun tin g , dire c tl y ont o doo rs , pa nels , li ds , enc lo…
T Rotary Cam switches - Overview
T Switch size - Number of contact units
(contact chambers)
/ Mounting
form
Ci-K Enclosure size
(H x W mm)
/ Type of switch, handle / Accesories
T 0 (20 A)
3 (32 A)
5B (63 A)
5 (100 A)
6 (160 A)
8 (315 A)
T0/T3: max 11 chambers /
22 contacts
I : Surface
mounting
in Ci-K
Enclosure
1 (131 x 80 mm)
2 (181 x 100 mm)
3 (222 x 120 mm)
4 (240 x 160 mm)
5 (280 x 200 mm)
SVB: Main switch with red/yellow handle
T5/TB: max 10 chambers /
20 contacts
SVB-SW: Main switch with black handle
MBS/SVB: Main switch with red/yellow
handle and pre-assembled EMC screen
MBS/SVB-SW: Main switch with black handle
and pre-assembled EMC screen
SVA(S): Panic switch with SVA cylinder lock
SVA(A): ON-OFF switch with SVA cylinder lock
SVC(S): Panic switch with SVC padlock
SI: Safety switch
Enclosed ‘I’ switch-disconnectors tted in Ci-K Enclosures
Enclosed ‘SE’ T0 and T3 switch-disconnectors tted in steel enclosure
T Switch size - Number of contact units
(contact chambers)
- Steel
enclosure size
/ Type of switch, handle
T 0 (20 A)
3 (32 A
T0/T3: max11 chambers / 22 contacts SE1
SE3
SVB: Main switch with red/yellow handle
SVB-SW: Main switch with black handle
(Blank) Switch with ON-OFF function
Catalogue number system
For any Switch-disconnectors that currently holds a North American (NA) approval, a NA style variant can be made available to
order, please contact your local sales representative for more information.
15EATON P Switch-disconnectors and T Rotary cam switches CA042001EN

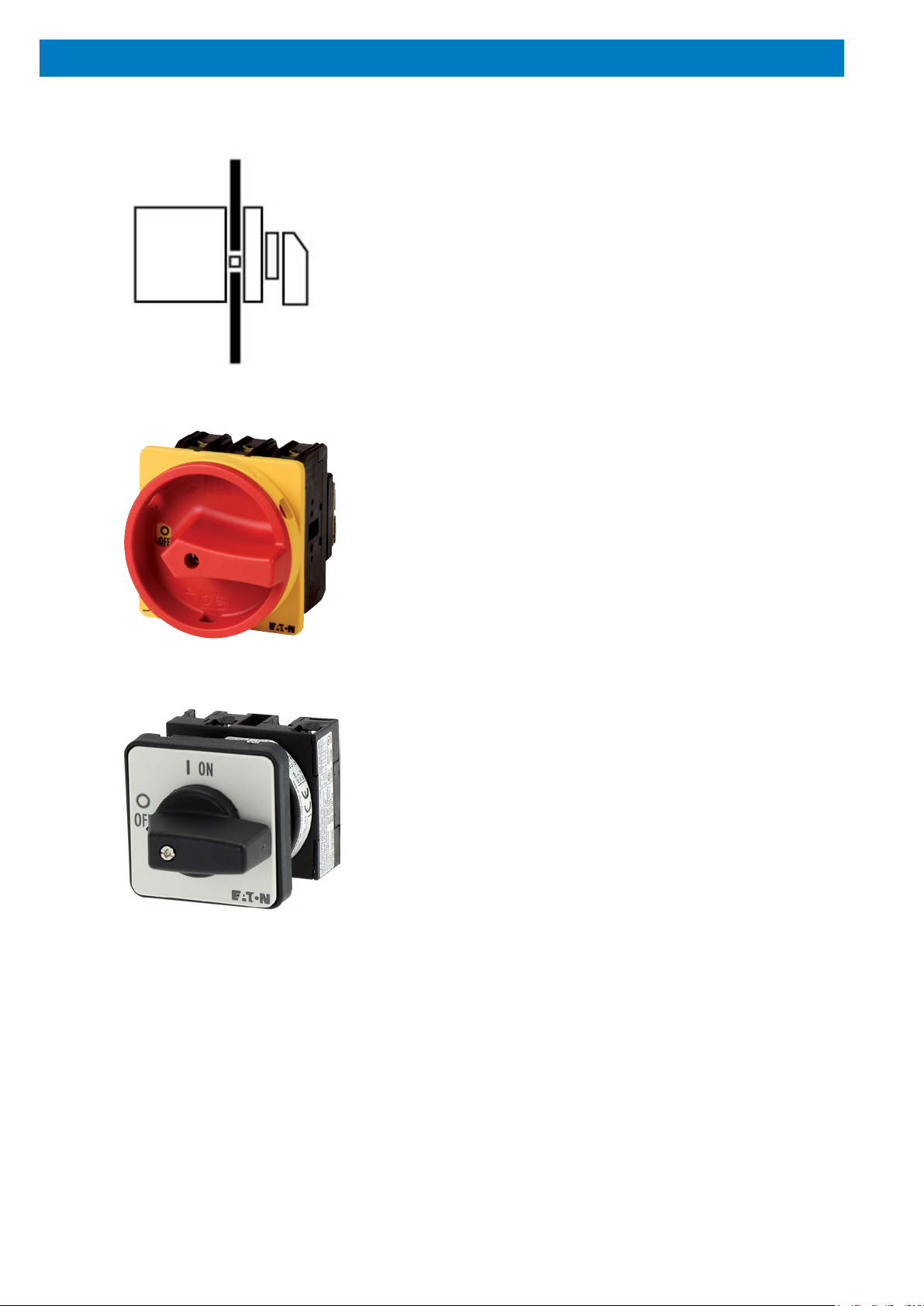

Flush mounting switch-disconnectors
Description
Flush mounting switch-disconnectors can be easily installed,
using two-hole screw mounting, directly onto doors, panels, lids,
enclosures in machinery, switchboard and switchgear.
Standards/Approvals
See details page 178
Technical data
•
Voltage: 690 V a.c.
•
Current: 10 A to 315 A
•
Front IP65
Options
•
With or without emergency switching off/emergency stop
function
•
With and without auxiliary contacts
•
With red rotary handle and yellow locking collar and black
rotary handle and locking collar
•
1-pole to 8-pole
P3 Flush mounting
T0 Flush mounting
16
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Flush mounting - Range overview
Rated current 10 A 20 A 25 A 32 A 40 A 63 A 100 A 125 A 160 A 250 A 275 A 315 A
On-Off switch-disconnectors TM T0 P1 P1 T3 P1 P3 T5B P3 T5 P5 P5 P5 P5
Without auxiliary contacts
With auxiliary contacts
Main switch-disconnectors T0 P1 P1 T3 P1 P3 T5B P3 T5 P5 P5 P5 P5
Without auxiliary contacts
With auxiliary contacts
Changeover swtich-disconnectors TM T0 T3 T5B T5 T6 T8
Without auxiliary contacts
Coding switch-disconnectors TM T0
Without auxiliary contacts
Manual/auto switch-disconnectors TM T0
Without auxiliary contacts
Multi speed switch-disconnectors T0 T3 T5B
Without auxiliary contacts
Reversing switch-disconnectors TM T0 T3 T5B
Without auxiliary contacts
Selector switch-disconnectors T0
Without auxiliary contacts
Star-delta switch-disconnectors T0 T3 T5B
Without auxiliary contacts
Step switch-disconnectors TM T0
Without auxiliary contacts
Step switch-disconnectors for heating T0
Without auxiliary contacts
Universal switch-disconnectors T0
Without auxiliary contacts
