Univ e rs al acces s o r ies IP65 Insulated enclosures Descripti on Nu mbe r of contac t units Part number Ar ticle number Std . pack Su it abl e fo r ex po r t to No r th A mer ic a (U S an d Canada) Su it abl e fo r Mo…
Universal accessories
Interlock sections
•
With PE and neutral terminal connection
•
Mounting on the back of flush mounting switch, with interlock function in rear mounting switches
Description
Part
number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for Mounting
Interlock sections - Mounting on the
back of flush mounting switch
UV-T0 019925 1
T0, T3 Flush mounting /E
Centre mounting /EZ
Rear mounting /Z
Interlock sections - With interlock
function for rear mounting switches
UV-P3 048289 1
T5B, T5 Flush mounting /E
Rear mounting /Z
Shrouds
Description Part number
Article
number
Std.
pack
Suitable for
export to North
America (US and
Canada)*** Suitable for Mounting
For flush mounting switches with up to 4 contact units
Cable entries
Quantity: 2 x Ø 20 mm + 2 x Ø 15 mm
Cross section: 5 x 6 mm
2
, 5 x 2.5 mm
2
H3-T0 093828 1
TO, T3 Flush mounting /E
For covering the connection terminals of up to 2 contact
units*.
H1-T5 045062 1
T5B, T5 Flush mounting /E
Rear mounting /Z
Extension for H1-T5 protective shroud on 3-8 contact units.
One HZ-T5 required per contact unit
HZ-T5 045063 1
H1-T5
For covering the connection terminals on 3-pole switch-
disconnectors*
H-P1 017253 5
P1 Flush mounting /E
5
P1 Rear mounting /V
For covering the connection terminals on 4-pole switch-
disconnectors*
H-P14 019626 5
P1-...N, HI11 All mounting options
For covering the connection terminals on 3-pole open
switch-disconnectors with N neutral terminal and/or HI11
auxiliary contact**
H-P3 021999 5
P3 Flush mounting /EA
P3 Rear mounting /V
P3-...N, HI11 All mounting options
For covering the terminals H-P5-125/160 293977 1
P5 All mounting options
H-P5-250/315 293978 1
P5 All mounting options
Set (6 units) for covering the connection terminals H-T8 200184 6
T8-3-8342/... All mounting options
* Can be optionally used for input wiring and/or outgoer
** The protective shroud is designed for mounting on the switch-disconnector on both sides; non required parts can be broken o
*** UL/CSA certication not required
017253
019626
021999
293977 / 293978
200184
093828
045062
045063
Photos are representative
161EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Universal accessories
IP65 Insulated enclosures
Description
Number of
contact units Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
IP65 insulated enclosure - With push-through
cable entry diaphragm*
1-2 CI-K1-T0-2 207435 1
X TO Rear mounting /Z
3-4 CI-K1-T0-4 207436 1
X
1-2 CI-K2-T3-2 207437 1
T3 Rear mounting /Z
3-4 CI-K2-T3-4 225325 1
5 CI-K2-T3-5 207438 1
IP65 insulated enclosure - With metric
knockouts
1-2 CI-K1H-T0-2 105854 1
X T0 Rear mounting /Z
3-4 CI-K1H-T0-4 105855 1
X
1-2 CI-K2H-T3-2 269462 1
X T3 Rear mounting /Z
3-4 CI-K2H-T3-4 105859 1
X
5 CI-K2H-T3-5 105860 1
X
1-2 CI-K4-T5B-2** 207439 1
T5B Flush mounting /E
3-4 CI-K4-T5B-4** 207440 1
T5B Rear mounting /Z
1-2 CI-K5-T5-2** 207441 1
T5 Rear mounting /Z
3-4 CI-K5-T5-4** 207442 1
Only available
together with
basic unit
+I1H 105870 1
X T0 Surface mounting I1
+I2H 105871 1
X T3 Surface mounting I2
X P1 Surface mounting I2
* The diaphragm can be pierced with the cable. 1 contact unit = 2 contacts.
** For converting T5../Z into T5-../I5 and T5B-../E into T5B-.../I4, order AW-T5-... extension terminal additionally. 1 contact unit = 2 contacts
Product standards UL 60947-4-1
CSA - C22-.2 No 14-05, CSA - C22-2 No 94
IEC/EN 60947-3
CE Marking
UL File No E54120
UL CCN MITW2
CSA File No 12528
CSA Class No 3211-07
NA Certification UL Listed, CSA Certified
Degree of protection IEC: IP65
UL/CSA Type 1, 3R, 4X, 12, 13 - indoor and outdoor
use
207435 / 207436
105855 /
207437 / 269462
105859 / 105860
225325 207438
105854 / 105870
105871
207439 / 207440 207441 207442
Control cable terminal
Terminal capacity:
•
Solid or stranded 4 mm
2
•
Flexible with ferrules to DIN 46228: 4 mm
2
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for
Control cable terminal ST-P5-250/314 280978 1
P5-250/315
Photos are representative
162
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN

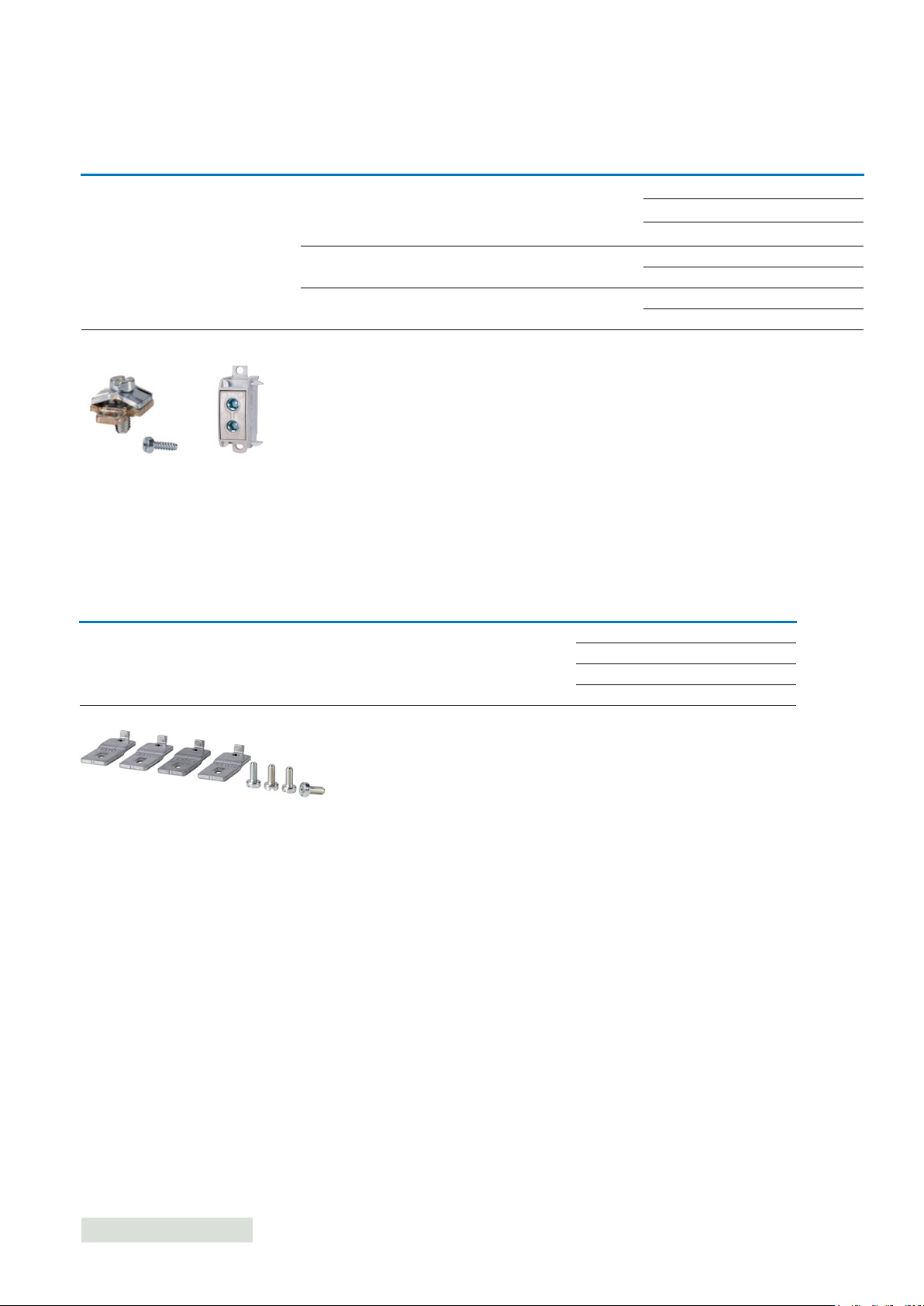

Universal accessories
Neutral terminals
Description Flex cable Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for Mounting
Neutral terminal for connection of a 5th
conductor
1-4 mm² K-CI-K1/2* 207451 20
P1 Surface mounting I2
T0 Surface mounting I1
T3 Surface mounting I3
1.5-16 mm² K-CI-K4 206916 20
T5B Surface mounting I4
P3 Surface mounting I4
10-35 mm² K-CI-K5 218488 20
T5 Surface mounting I5
P3 Surface mounting I5
* UL/CSA certication not required
206916
218488
Set of external brackets
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for Mounting
Set of external fixing brackets, for fixing CI-K4
and CI-K5 directly on walls.
One set contains 4 brackets
AB-CI-K4/5 206914 1
T5B Surface mounting I4
P3-63 Surface mounting I4
T5 Surface mounting I5
P3-100 Surface mounting I5
* UL/CSA certication not required
Photos are representative
163EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
