F lush m o u nt in g - M ain sw itch- di s co nnec t ors w ithout au x iliary contac t s Front plate Number of poles Su it abl e fo r ex po r t to No r th A mer ic a (U S) a nd Canada Padlockable handle Contact sequence …
Flush mounting - Main switch-disconnectors without auxiliary contacts
Front plate
Number
of poles Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
1 20 A T0-1-8200/EA/SVB-SW 055483 1
32 A T3-1-8200/EA/SVB-SW 068949 1
63 A T5B-1-8200/EA/SVB-SW 094278 1
2 20 A T0-1-102/EA/SVB-SW 093451 1
32 A T3-1-102/EA/SVB-SW 016747 1
63 A T5B-1-102/EA/SVB-SW 094468 1
100 A T5-1-102/EA/SVB-SW 098807 1 X
3 20 A T0-2-1/EA/SVB-SW 041246 1
25 A P1-25/EA/SVB-SW 048365 1
30 A P3-30/EA/SVB-SW-MCS 237893 1
32 A P1-32/EA/SVB-SW 053111 1
40 A P1-40/EA/SVB-SW 199898 1 X
63 A P3-63/EA/SVB-SW 057857 1
80 A P3-80/EA/SVB-SW EP-400929 1
100 A P3-100/EA/SVB-SW 062603 1
3 125 A P5-125/EA/SVB-SW 280911 1
160 A P5-160/EA/SVB-SW 280925 1
250 A P5-250/EA/SVB-SW 280939 1
315 A P5-315/EA/SVB-SW 280953 1
3 + N 20 A T0-2-8900/EA/SVB-SW 207401 1
25 A P1-25/EA/SVB-SW/N 083960 1
32 A P1-32/EA/SVB-SW/N 093452 1
40 A P1-40/EA/SVB-SW/N 199900 1 X
63 A P3-63/EA/SVB-SW/N 012771 1
100 A P3-100/EA/SVB-SW/N 022263 1
3 + N 125 A P5-125/EA/SVB-SW/N 280913 1
160 A P5-160/EA/SVB-SW/N 280927 1
250 A P5-250/EA/SVB-SW/N 280941 1
315 A P5-315/EA/SVB-SW/N 280955 1
6 20 A T0-3-8342/EA/SVB-SW 031755 1
32 A T3-3-8342/EA/SVB-SW 073699 1
63 A T5B-3-8342/EA/SVB-SW 092307 1
100 A T5-3-8342/EA/SVB-SW 096382 1 X
8 20 A T0-4-8344/EA/SVB-SW 008268 1
32 A T3-4-8344/EA/SVB-SW 008965 1
63 A T5B-4-8344/EA/SVB-SW 092061 1
100 A T5-4-8344/EA/SVB-SW 095960 1 X
FS 908
ON
OFF
1
2
01
1
2
3
4
01
1
2
3
4
5
6
01
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
7
8
9
10
01
11
12
1
2
3
4
5
6
7
8
9
10
01
11
12
13
14
15
16
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
1L1
1T1
1L2
1T2
1L3
1T3
01
053111
N/O
Without emergency switch o/emergency stop function
Photo is representative
24
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Flush mounting - Main switch-disconnectors without auxiliary contacts
Front plate
Number
of poles Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
1
20 A T0-1-8200/EA/SVB 053110
32 A T3-1-8200/EA/SVB 066576
63 A T5B-1-8200/EA/SVB 094279
2 20 A T0-1-102/EA/SVB 091078
32 A T3-1-102/EA/SVB 014374
63 A T5B-1-102/EA/SVB 094469
100 A T5-1-102/EA/SVB 098808 X
3 20 A T0-2-1/EA/SVB 038873
25 A P1-25/EA/SVB 041097
30 A P3-30/EA/SVB-MCS 237892
32 A P1-32/EA/SVB 081438
40 A P1-40/EA/SVB 199894 X
63 A P3-63/EA/SVB 031607
80 A P3-80/EA/SVB EP-400924
100 A P3-100/EA/SVB 074320
125 A P5-125/EA/SVB 280898
160 A P5-160/EA/SVB 280922
250 A P5-250/EA/SVB 280936
315 A P5-315/EA/SVB 280950
3 + N 20 A T0-2-8900/EA/SVB 207400
3 + N 25 A P1-25/EA/SVB/N 081587
32 A P1-32/EA/SVB/N 091079
40 A P1-40/EA/SVB/N 199896 X
63 A P3-63/EA/SVB/N 010398
80 A P3-80/EA/SVB/N EP-400927
100 A P3-100/EA/SVB/N 019890
3 + N 125 A P5-125/EA/SVB/N 280910
160 A P5-160/EA/SVB/N 280924
250 A P5-250/EA/SVB/N 280938
315 A P5-315/EA/SVB/N 280952
6 20 A T0-3-8342/EA/SVB 029382
32 A T3-3-8342/EA/SVB 071326
63 A T5B-3-8342/EA/SVB 092308
100 A T5-3-8342/EA/SVB 096383 X
8 20 A T0-4-8344/EA/SVB 008267
32 A T3-4-8344/EA/SVB 008964
63 A T5B-4-8344/EA/SVB 092062
100 A T5-4-8344/EA/SVB 095961 X
041097
1
2
01
1
2
3
4
01
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
N
N
01
1
2
3
4
5
6
7
8
9
10
01
11
12
1
2
3
4
5
6
7
8
9
10
01
11
12
13
14
15
16
FS 908
ON
OFF
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
N/O
With emergency switch o/emergency stop function
Photo is representative
1
2
3
4
5
6
01
25EATON P Switch-disconnectors and T Rotary cam switches CA042001EN

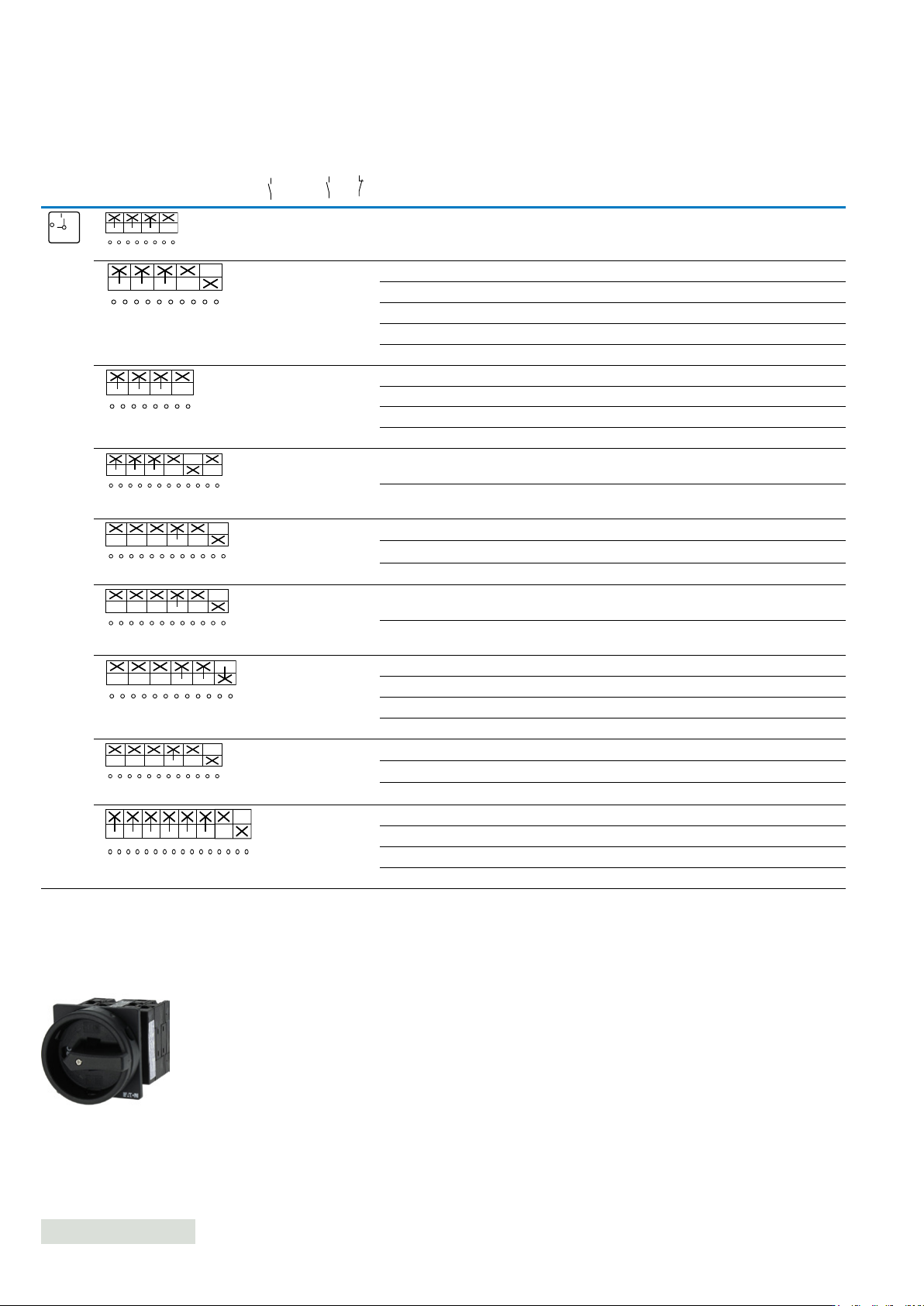

Flush mounting - Main switch-disconnectors with auxiliary contacts
Front
plate
Number
of poles
Auxiliary
contacts
Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
3 1 0 20 A T0-2-15679/EA/SVB-SW 083961 1
3 1 1 25 A P1-25/EA/SVB-SW/HI11 070194 1
32 A P1-32/EA/SVB-SW/HI11 012772 1
40 A P1-40/EA/SVB-SW/HI11 199899 1 X
63 A P3-63/EA/SVB-SW/HI11 022264 1
100 A P3-100/EA/SVB-SW/HI11 031756 1
3 1 0 125 A P5-125/EA/SVB-SW/HI10 280912 1
160 A P5-160/EA/SVB-SW/HI10 280926 1
250 A P5-250/EA/SVB-SW/HI10 280940 1
315 A P5-315/EA/SVB-SW/HI10 280954 1
3 2 1 20 A T0-3-15683/EA/SVB-SW 015600
1
32 A T3-3-15683/EA/SVB-SW 042851
1
3 + N 1 1 20 A T0-3-15680/EA/SVB-SW 041248
1
32 A P1-25/EA/SVB-SW/N/HI11 050740
1
32 A T3-3-15680/EA/SVB-SW 231946
1
3 + N 1 1 32 A P1-32/EA/SVB-SW/N/HI11 060232 1
40 A P1-40/EA/SVB-SW/N/HI11 199901
1 X
3 + N 1 1 20 A T0-3-8901/EA/SVB-SW 231933 1
32 A T3-3-15680/EA/SVB-SW 014375 1
63 A T5B-3-8901/EA/SVB-SW 207421 1
100 A T5-3-8901/EA/SVB-SW 207409 1 X
3 + N 1 1 63 A P3-63/EA/SVB-SW/N/HI11 069724
1
80 A P3-80/EA/SVB-SW/N/HI11 EP-400931
1
100 A P3-100/EA/SVB-SW/N/HI11 079216
1
6 1 1 20 A T0-4-15682/EA/SVB-SW 022265 1
32 A T3-4-15682/EA/SVB-SW 057089 1
63 A T5B-4-15682/EA/SVB-SW 207426 1
100 A T5-4-15682/EA/SVB-SW 207414 1 X
FS 908
ON
OFF
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
13
14
01
21
22
1L1
1T1
1L2
1T2
1L3
1T3
7
8
01
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
13
14
15
16
231946
N/O
N/O
N/C
Without emergency switch o/emergency stop function
Photo is representative
26
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
