Flush mounting - Step switch-disconnectors for heating
Contact sequence
Number
of poles Suitable for
export to
North America
(US and
Canada)
Padlockable
handleFront plate
Rated
current Part number
Article
number
Pack
qty
With O (OFF) position
20 A 1 T0-1-91/E 072082 1
X
FS 614
0
21
1
2
3
4
012
072082
N/O
Without emergency switch o/emergency stop function
Photo is representative
43EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Flush mounting - Universal control switch-disconnectors
Contact sequence
Suitable for
export to
North America
(US and
Canada)
Padlockable
handleFront plate
Rated
current Part number
Article
number
Pack
qty
Maintained switches with 3 positions
1 Contact closed in each position
- Additionally 1 contact closed in position 0 and 1
- Additionally 1 contact closed in position 0 and 2
- Additionally 1 contact closed in position 0 and 3
20 A T0-3-15391/E 029365 1
X
Automatic (spring) return from positions 1 and 2
20 A T0-3-15394/E 072079 1
X
FS 429
0
2
1
FS 458
0
12
1
2
3
4
5
6
7
8
9
10
11
12
201
1
2
3
4
5
6
7
8
9
10
11
12
2 01
072079
Without emergency switch o/emergency stop function
Photo is representative
44
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN

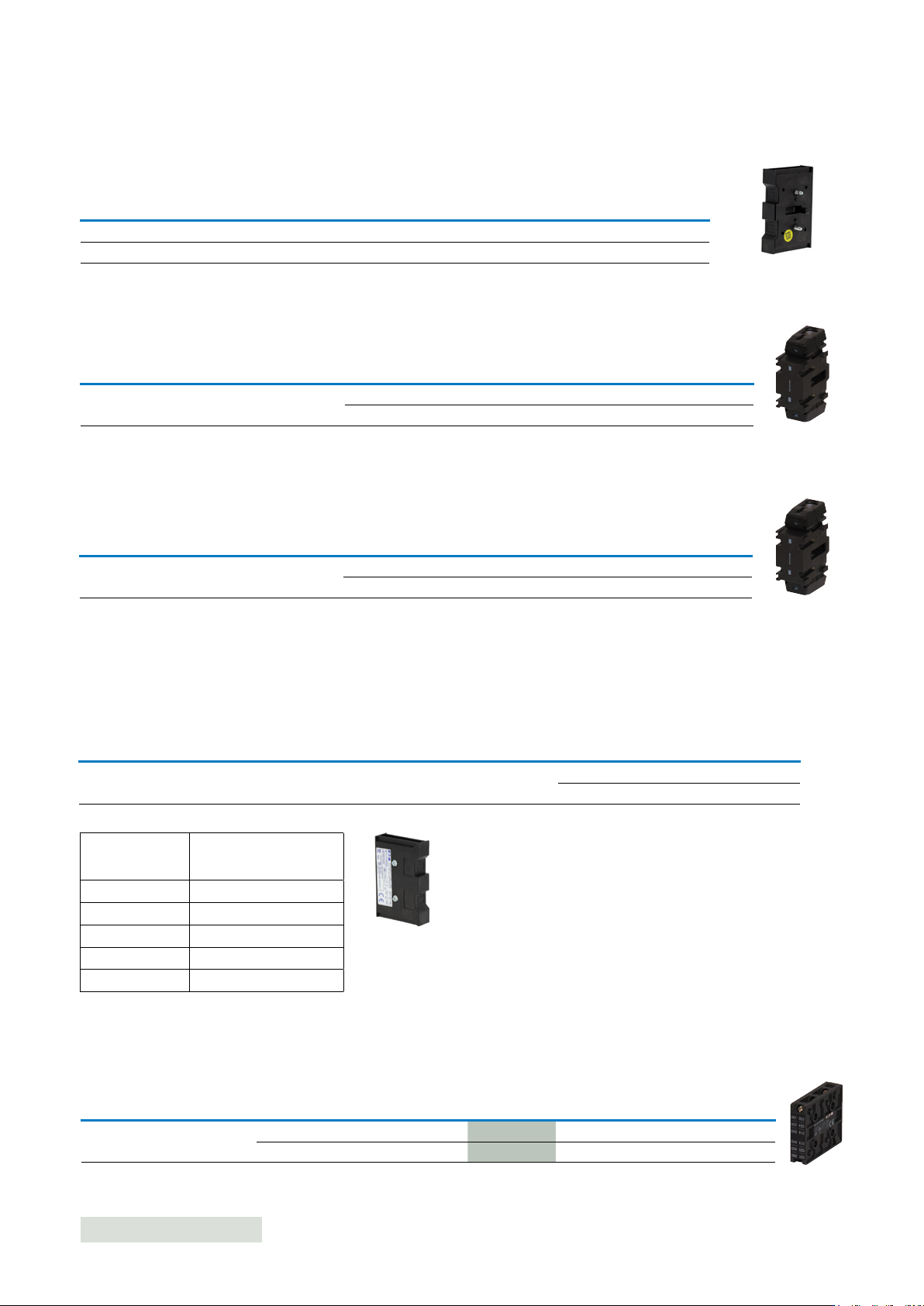

Flush mounting dedicated accessories
Neutral terminal
Early make on switching, late-break off switching.
The N contact always behaves as an early make contact when switching on and as a late break when switching off. N-P1(P3)... switching capacity same as for contacts P1(P3)
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Neutral terminal - for left or right side mounting N-P1E 000651
5
P1
Neutral terminal N-P3E 062432
5
P3
Neutral terminal
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Front mounting, left N-P5-125/160E 280969
1
P5-125 (160)/E(EA)
N-P5-250/315E 280971
1
P5-250/315/E(EA)
Ground terminal
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Front mounting, left PE-P5-125/160E 280973
1
P5-125 (160)/E(EA)
PE-P5-250/315E 280975
1
P5-250/315/E(EA)
Auxiliary contacts - 1 normally open (N/O), 1 normally close (N/C)
•
Late break on switching, early-make off switching. The N/O is always connected as a load-shedding contact
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For left or right side mounting HI11-P1/P3UE EP-400893 5
P1 Flush mounting /E or /EA
P3 Flush mounting /E or /EA
Product standards UL 60947-4-1, CSA - C22-.2 No
14-05
IEC/EN 60947-3, CE Marking
UL File No E36332
UL CCN NLRV
CSA File No 12528
CSA Class No 3211-05
NA Certification UL Listed, CSA Certified
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For left or right side mounting HI21-P5-125/160E 280963 1
P5-125 and 160 Flush mounting /EA or /E
HI21-P5-250/315E 280965 1
P5-250 and 315 Flush mounting /EA or /E
Auxiliary contacts - 2 normally open (N/O), 1 normally close (N/C)
Photos are representative
062432
280969
280973
45EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
