F lush m o u nt in g dedic ated access or ies Flush mounting to c entre mounting convertor • For single hole fitting 22.3 mm • To convert a Flush mounting switch into a Centre mounting switch Descripti on Par t number Ar…

100%1 / 236
Flush mounting dedicated accessories
Neutral terminal
Early make on switching, late-break off switching.
The N contact always behaves as an early make contact when switching on and as a late break when switching off. N-P1(P3)... switching capacity same as for contacts P1(P3)
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Neutral terminal - for left or right side mounting N-P1E 000651
5
P1
Neutral terminal N-P3E 062432
5
P3
Neutral terminal
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Front mounting, left N-P5-125/160E 280969
1
P5-125 (160)/E(EA)
N-P5-250/315E 280971
1
P5-250/315/E(EA)
Ground terminal
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for
Front mounting, left PE-P5-125/160E 280973
1
P5-125 (160)/E(EA)
PE-P5-250/315E 280975
1
P5-250/315/E(EA)
Auxiliary contacts - 1 normally open (N/O), 1 normally close (N/C)
•
Late break on switching, early-make off switching. The N/O is always connected as a load-shedding contact
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For left or right side mounting HI11-P1/P3UE EP-400893 5
P1 Flush mounting /E or /EA
P3 Flush mounting /E or /EA
Product standards UL 60947-4-1, CSA - C22-.2 No
14-05
IEC/EN 60947-3, CE Marking
UL File No E36332
UL CCN NLRV
CSA File No 12528
CSA Class No 3211-05
NA Certification UL Listed, CSA Certified
Description Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
For left or right side mounting HI21-P5-125/160E 280963 1
P5-125 and 160 Flush mounting /EA or /E
HI21-P5-250/315E 280965 1
P5-250 and 315 Flush mounting /EA or /E
Auxiliary contacts - 2 normally open (N/O), 1 normally close (N/C)
Photos are representative
062432
280969
280973
45EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Flush mounting dedicated accessories
Flush mounting to centre mounting convertor
•
For single hole fitting 22.3 mm
•
To convert a Flush mounting switch into a Centre mounting switch
Description
Part
number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada)* Suitable for Mounting
For cam switches with existing front plate - quick
installation with snap fitting system
EZ-T0 081622 1
T0, T3 Flush mounting /E
Mounting diameter 22.3 mm, one man mounting with
screw fixing
EZ-P1 091455 1
TO, T3, P1 Flush mounting /E
* UL/CSA certication not required
081622 091455
Shrouds
Description Part number
Article
number
Std.
pack
Suitable for export
to North America
(US and Canada)* Suitable for Mounting
For flush mounting switches with up to 4 contact units
Cable entries
Quantity: 2 x Ø 20 mm + 2 x Ø 15 mm
Cross section: 5 x 6 mm
2
, 5 x 2.5 mm
2
H3-T0 093828 1
TO, T3 Flush mounting /E
* UL/CSA certication not required
093828
Description
Number of
contact units Part number
Article
number
Std.
pack
Suitable for
export to
North America
(US and
Canada) Suitable for Mounting
IP65 insulated enclosure - With metric
knockouts
1-2 CI-K4-T5B-2* 207439 1
T5B Flush mounting /E
IP65 Insulated enclosures
* For converting T5../Z into T5-../I5 and T5B-../E into T5B-.../I4, order AW-T5-... extension terminal additionally. 1 contact unit = 2 contacts
Product standards UL 60947-4-1
CSA - C22-.2 No 14-05, CSA - C22-2 No 94
IEC/EN 60947-3
CE Marking
UL File No E54120
UL CCN MITW2
CSA File No 12528
CSA Class No 3211-07
NA Certification UL Listed, CSA Certified
Degree of protection IEC: IP65
UL/CSA Type 1, 3R, 4X, 12, 13 - indoor and outdoor
use
207439
Photos are representative
46
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Centre mounting switch-disconnectors
Description
Centre mounting switch-disconnectors can be easily installed,
using 22.5 mm single-hole mounting, onto doors, panels, lids,
enclosures in machinery. switchboard and switchgear.
Standards/Approvals
See details page 178
Technical data
•
Voltage: 690 V a.c.
•
Current: 10 A to 40 A
•
Mounting method: 22.5 mm single-hole mounting
Features
•
Available with or without emergency switching off/emergency stop
function
•
Available with and without auxiliary contacts
•
Available with red rotary handle and yellow locking collar and black
rotary handle and locking collar
•
1-pole to 8-pole options

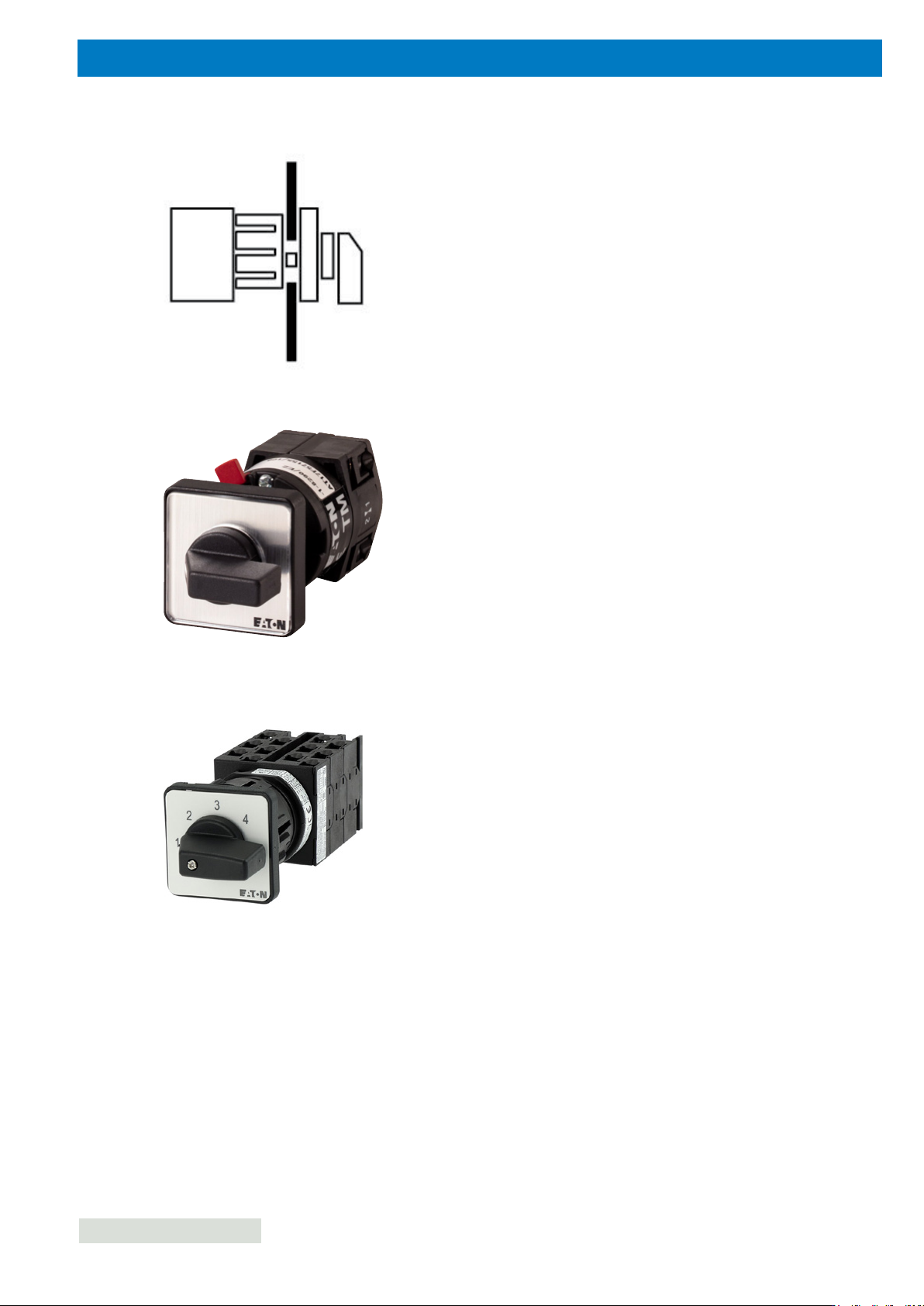

TM Center
mounting
T0 Center mounting
Photos are representative
