Centre mounting - Step switch-disconnectors
Contact sequence
Number
of poles
Rated
current
Suitable for export
to North America
(US and Canada) Padlockable handleFront plate Part number
Article
number
Pack
qty
3 steps 60
o
1 10 A TM-2-8230/EZ 000701 1
X
3 10 A TM-5-8270/EZ 046124 1
X
4 steps, 60
o
1 10 A TM-2-8231/EZ 000700 1
X
3 10 A TM-6-8271/EZ 046128 1
X
5 steps 60
o
1 10 A TM-3-8232/EZ 015592 1
X
2 10 A TM-5-8252/EZ 046123 1
X
6 steps 60
o,
, no full rotation
1 10 A TM-3-8233/EZ 015630 1
X
2 10 A TM-6-8253/E 046127 1
X
10 steps 30
o,
1 10 A TM-5-8237/EZ 015661 1
X
F 076
2
1
3
1
2
3
4
5
6
123
1
2
3
4
5
6
7
8
1 02
F 077
2
1
3
4
1
2
3
4
5
6
7
8
1234
1
2
3
4
5
6
7
8
9
10
11
12
13
14
123
15
16
17
18
19
20
21
22
23
24
4
F 078
2
1
3
4
5
1
2
3
4
5
6
7
8
9-
10
1234 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
123
15
16
17
18
19
20
4 5
2
1
3
4
5
6
F 079
1
2
3
4
5
6
7
8
9
10
11
12
1234 5 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
123
15
16
17
18
19
20
21
22
23
24
4 5 6
F 011
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1234 5
11
12
6 7 8 9 10
13
14
15
16
17
18
19
20
015630
N/O
Without emergency switch o/emergency stop function
Photo is representative
66
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Centre mounting - Step switch-disconnectors for heating
Contact sequence
Number
of poles Suitable for
export to
North America
(US and
Canada)
Padlockable
handleFront plate
Rated
current Part number
Article
number
Pack
qty
With 0 (OFF) position
20 A 1 T0-1-91/EZ 074455 1
X
FS 614
0
21
1
2
3
4
012
074455
N/O
Without emergency switch o/emergency stop function
Photos are representative
For ordering with base switch unit For ordering as a standalone unit
Part number Article number Part number Article number
Key withdrawable in position
Micromec lock 90
o
switch angle
+EZ/S-A 045458 EZ/S-A-TM 046991 0°
+EZ/S-B 045459 EZ/S-B-TM 046992 270°
+EZ/S-E 045462 EZ/S-E-TM 046995 0° + 90°
+EZ/S-F 045463 EZ/S-F-TM 046996 270° & 0°
+EZ/S-G 045464 EZ/S-G-TM 046997 270° + 0° + 90° + 180°
+EZ/S-R 045471 EZ/S-R-TM 047004 270° + 0° + 90°
Ronis lock 60
o
switch angle
+EZ/S-D 045461 X X 270° + 90°
+EZ/S-H 045465 X X 300° + 0° + 60° + 120° +180° + 240°
+EZ/S-J 045466 X X 270° + 330° + 30° + 90° +150° + 210°
+EZ/S-N 045468 X X 270° + 330° + 90° + 150°
Centre mounting dedicated accessories
Key operated lock mechanism
Options for key withdrawal
Position marking as in example
A
BF
E
R
G
C
D
H
J
M
N
P
Q
330
0
30
300
270
240
225
210
180
150
135
120
90
60
315
45
Key operation lock mechanism, incuding. 2 keys.
The key can only be removed in certain positions; see diagram.
The MICROMEC lock for 90° can be used for other switching
angles as well if the key withdrawability characteristics match the
type of switch.
Example: +EZ/S-B can be used with a step switch with a
switching angle of 30° if the key is only to be withdrawable in the
0 position at 270°.
67EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Rear mounting switch-disconnectors
Description
Rear mounting switch-disconnectors can be easily installed,
either using screw xings or directly onto a DIN-Rail, on the rear
of a panel, control board, enclosures in machinery, switchboard
and switchgear.
Standards/Approvals
See details page 178
Technical data
•
Voltage: 690 V a.c.
•
Current: 20 A to 315 A
•
Mounting method: Screw fixings or directly onto a DIN-Rail
Features
•
Available with or without emergency switching off/emergency stop
function
•
Available with and without auxiliary contacts
•
Available with red rotary handle and yellow locking collar and black
rotary handle and locking collar
•
1-pole to 8-pole options
•

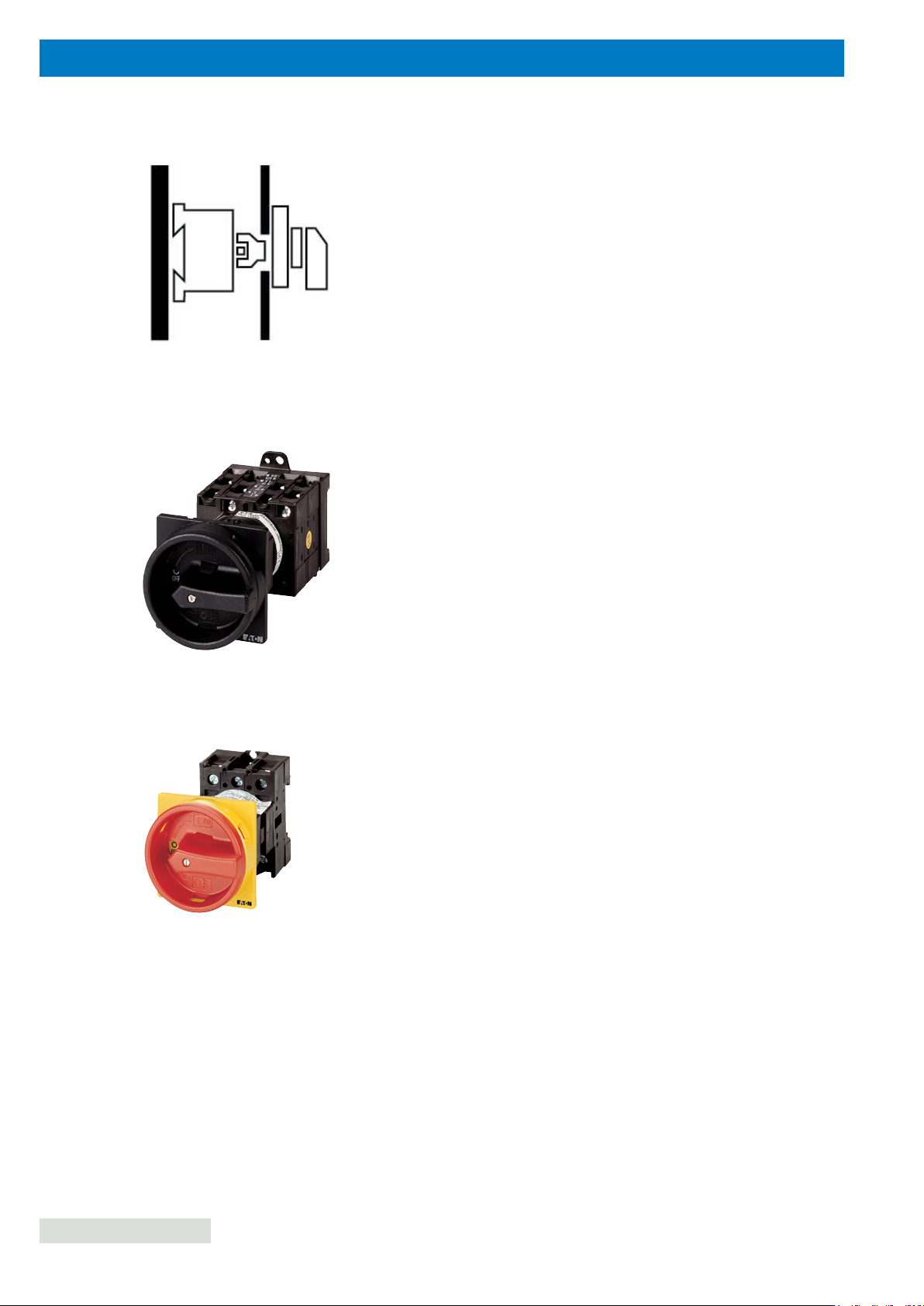

T3 Rear mounting
P1 Rear mounting
Photos are representative
68
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
