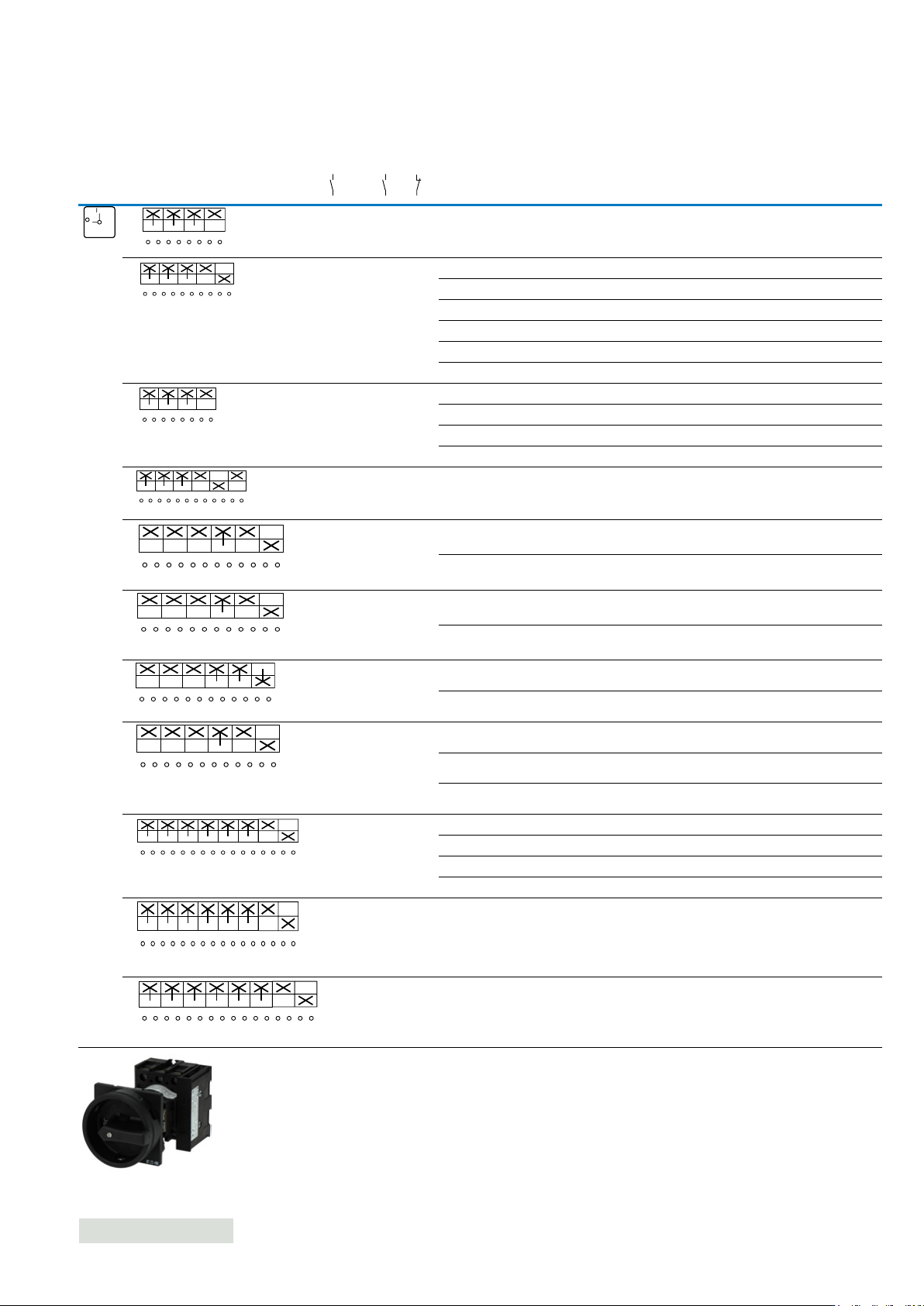

Rear mounting - Main switch-disconnectors without auxiliary contacts
Front
plate
Number
of poles Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
1
20 A
T0-1-8200/V/SVB-SW 060229
1
32 A
T3-1-8200/V/SVB-SW 004882
1
2 20 A T0-1-102/V/SVB-SW 022330 1
32 A T3-1-102/V/SVB-SW 021493 1
63 A T5B-1-102/V/SVB-SW 094462 1
3 20 A T0-2-1/V/SVB-SW 045992 1
25 A P1-25/V/SVB-SW 050738 1
30 A P3-30/V/SVB-SW-MCS 237895 1
32 A P1-32/V/SVB-SW 055484 1
40 A P1-40/V/SVB-SW 199958 1 X
63 A P3-63/V/SVB-SW 060230 1
80 A P3-800/V/SVB-SW EP-400969 1
100 A P3-100/V/SVB-SW 064976 1
3 125 A P5-125/V/SVB-SW 280917 1
160 A P5-160/V/SVB-SW 280931 1
250 A P5-250/V/SVB-SW 280945 1
315 A P5-315/V/SVB-SW 280959 1
3 + N 20 A T0-2-8900/V/SVB-SW 207406 1
25 A P1-25/V/SVB-SW/N 088706 1
32 A P1-32/V/SVB-SW/N 098198 1
40 A P1-40/V/SVB-SW/N 199961 1 X
63 A P3-63/V/SVB-SW/N 017517 1
80 A P3-80/V/SVB-SW/N EP-400971 1
100 A P3-100/V/SVB-SW/N 027009 1
3 + N 125 A P5-125/V/SVB-SW/N 280919 1
160 A P5-160/V/SVB-SW/N 280933 1
250 A P5-250/V/SVB-SW/N 280947 1
315 A P5-315/V/SVB-SW/N 280961 1
6 20 A T0-3-8342/V/SVB-SW 036501 1
32 A T3-3-8342/V/SVB-SW 078445 1
63 A T5B-3-8342/V/SVB-SW 092299 1
100 A T5-3-8342/V/SVB-SW 096380 1 X
8 20 A T0-4-8344/V/SVB-SW 008272 1
32 A T3-4-8344/V/SVB-SW 008967 1
63 A T5B-4-8344/V/SVB-SW 092055 1
100 A T5-4-8344/V/SVB-SW 095958 1 X
FS 908
ON
OFF
1
2
01
1
2
3
4
01
1
2
3
4
5
6
01
1
2
3
4
5
6
7
8
01
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
1L1
1T1
1L2
1T2
1L3
1T3
01
1
2
3
4
5
6
7
8
9
10
01
11
12
1
2
3
4
5
6
7
8
9
10
01
11
12
13
14
15
16
021493
N/O
Without emergency switch o/emergency stop function
Photo is representative
73EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Rear mounting - Main switch-disconnectors without auxiliary contacts
Front
plate
Number
of poles
Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
1 20 A T0-1-8200/V/SVB 057856 1
32 A T3-1-8200/V/SVB 007255 1
63 A T5B-1-8200/V/SVB 094273 1
2 20 A T0-1-102/V/SVB 095824 1
32 A T3-1-102/V/SVB 019120 1
63 A T5B-1-102/V/SVB 094463 1
3 20 A T0-2-1/V/SVB 043619 1
25 A P1-25/V/SVB 055335 1
30 A P3-30/V/SVB-MCS 237894 1
32 A P1-32/V/SVB 095676 1
40 A P1-40/V/SVB 199952 1 X
63 A P3-63/V/SVB 048218 1
80 A P3-80/V/SVB EP-400963 1
100 A P3-100/V/SVB 088558 1
3 125 A P5-125/V/SVB 280914 1
160 A P5-160/V/SVB 280928 1
250 A P5-250/V/SVB 280942 1
315 A P5-315 kW/V/SVB 280956 1
3 + N 20 A T0-2-8900/V/SVB 207405 1
3 + N 25 A P1-25/V/SVB/N 086333 1
32 A P1-32/V/SVB/N 095825 1
40 A P1-40/V/SVB/N 199955 1 X
63 A P3-63/V/SVB/N 015144 1
80 A P3-80/V/SVB/N EP-400966 1
100 A P3-100/V/SVB/N 024636 1
3 + N 125 A P5-125/V/SVB/N 280916 1
160 A P5-160/V/SVB/N 280930 1
250 A P5-250/V/SVB/N 280944 1
315 P5-315 kW/V/SVB/N 280958 1
6 20 A T0-3-8342/V/SVB 034128 1
32 A T3-3-8342/V/SVB 076072 1
63 A T5B-3-8342/V/SVB 092300 1
100 A T5-3-8342/V/SVB 096381 1 X
8 20 A T0-4-8344/V/SVB 014007 1
32 A T3-4-8344/V/SVB 020598 1
63 A T5B-4-8344/V/SVB 092056 1
100 A T5-4-8344/V/SVB 095959 1 X
FS 908
ON
OFF
1
2
01
1
2
3
4
01
1
2
3
4
5
6
01
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
N
N
01
1
2
3
4
5
6
7
8
9
10
01
11
12
1
2
3
4
5
6
7
8
9
10
01
11
12
13
14
15
16
280958
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
1L1
1T1
1L2
1T2
1L3
1T3
01
N/O
With emergency switch o/emergency stop function
Photo is representative
74
EATON P Switch-disconnectors and T Rotary cam switches CA042001EN
Rear mounting - Main switch-disconnectors with auxiliary contacts
Front
plate
Number
of poles
Auxiliary
contacts
Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
3 1 0 20 A T0-2-15679/V/SVB-SW 088707 1
3 1 1 25 A P1-25/V/SVB-SW/HI11 098199 1
32 A P1-32/V/SVB-SW/HI11 017518 1
40 A P1-40/V/SVB-SW/HI11 199959 1 X
63 A P3-63/V/SVB-SW/HI11 027010 1
80 A P3-80/V/SVB-SW/HI11 EP-400970 1
100 A P3-100/ V/SVB-SW/HI11 036502 1
3 1 0 125 A P5-125/V/SVB-SW/HI10 280918 1
160 A P5-160/V/SVB-SW/HI10 280932 1
250 A P5-250/V/SVB-SW/HI10 280946 1
315 A P5-315/V/SVB-SW/HI10 280960 1
3 2 1 20 A T0-3-15683/V/SVB-SW 015664 1
3 + N 1 1 20 A T0-3-15680/V/SVB-SW 045994 1
32 A T3-3-15680/V/SVB-SW 019121 1
3 + N 1 1 32 A P1-32/V/SVB-SW/N/HI11 064978 1
40 A P1-40/V/SVB-SW/N/HI11 199962 1 X
3 + N 1 1 32 A P1-25/V/SVB-SW/N/HI11 055486 1
63 A T5B-3-8901/V/SVB-SW 207423 1
3 + N 1 1 63 A P3-63/V/SVB-SW/N/HI11 074470 1
80 A P3-80/V/SVB-SW/N/HI11 EP-400972 1
100 A P3-100/V/SVB-SW/N/HI11 083962 1
6 1 1 20 A T0-4-15682/V/SVB-SW 027011 1
32 A T3-4-15682/V/SVB-SW 061835 1
63 A T5B-4-15682/V/SVB-SW 207428 1
100 A T5-4-15682/V/SVB-SW 207416 1 X
6 1 1 160 A T6-160-15682/V/SVB-SW/
HI11
200127 1
X
6 1 1 275 A T8-3-8342/V/SVB-SW/HI11 200128 1
X
FS 908
ON
OFF
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
13
14
01
21
22
1L1
1T1
1L2
1T2
1L3
1T3
7
8
01
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
13
14
15
16
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
2L2
2T2
2L3
2T3
13
14
21
22
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
2L2
2T2
2L3
2T3
103
104
101
102
199959
N/O
N/O
N/C
Without emergency switch o/emergency stop function
Photo is representative
