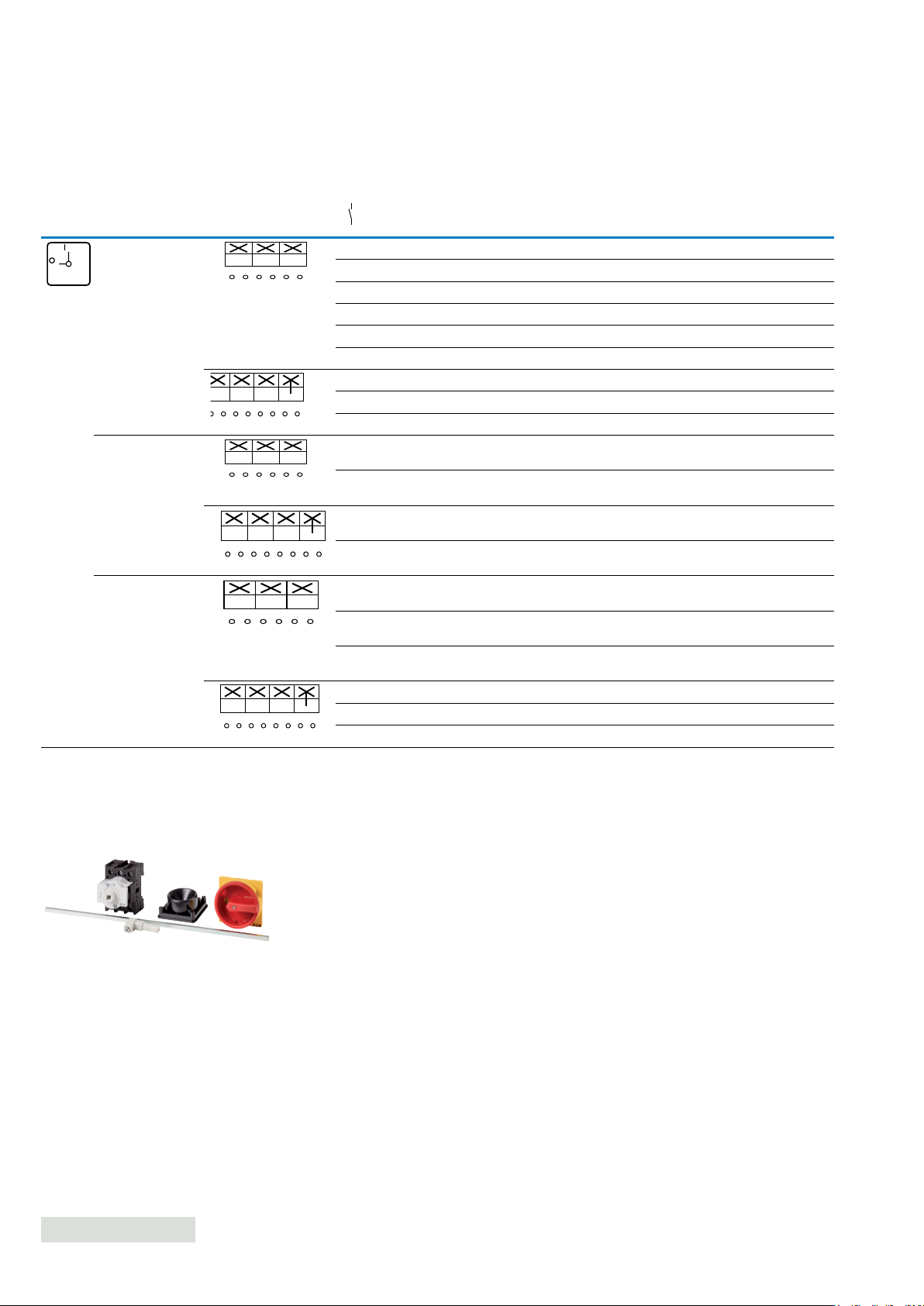

R e a r mo u nt ing - Main sw itc h-di s connec to rs w ith 40 0 mm metal e xte nsion shaf t w ith o ut auxiliar y co ntac t s Front plate Number of poles Su it abl e fo r ex po r t to No r th A mer ic a (U S) a nd Canad…
Rear mounting - Main switch-disconnectors with auxiliary contacts
Front
plate
Number
of poles
Auxiliary
contacts
Suitable for
export to
North America
(US) and
Canada
Padlockable
handleContact sequence
Rated
current Part number
Article
number
Pack
qty
3 1 0 20 A T0-2-15679/V/SVB 086334 1
3 1 1 25 A P1-25/V/SVB/HI11 095826 1
32 A P1-32/ V/SVB/HI11 015145 1
40 A P1-40/V/SVB/HI11 199953 1 X
63 A P3-63/V/SVB/HI11 024637 1
80 A P3-80/V/SVB/HI11 EP-400965 1
100 A P3-100/V/SVB/HI11 034129 1
3 1 0 125 A P5-125/V/SVB/HI10 280915 1
160 A P5-160/V/SVB/HI10 280929 1
250 A P5-250/V/SVB/HI10 280943 1
315 A P5-315/V/SVB/HI10 280957 1
3 2 1
20 A
T0-3-15683/V/SVB 015634 1
32 A
T3-3-15683/V/SVB 045224 1
3 + N 1 1 20 A T0-3-15680/V/SVB 043621 1
32 A P1-25/V/SVB/N/HI11 053113 1
32 A T3-3-15680/V/SVB 016748
3 + N 1 1 32 A P1-32/V/SVB/N/HI11 062605 1
40 A P1-40/V/SVB/N/HI11 199956 1 X
3 + N 1 1 63 A T5B-3-8901/V/SVB 207422 1
3 + N 1 1
63 A
P3-63/V/SVB/N/HI11 072097 1
80 A
P3-80/V/SVB/N/HI11 EP-400967 1
100 A
P3-100/V/SVB/N/HI11 081589 1
6 1 1 20 A T0-4-15682/V/SVB 024638 1
32 A T3-4-15682/V/SVB 059462 1
63 A T5B-4-15682/V/SVB 207427 1
100 A T5-4-15682/V/SVB 207415 1 X
6 1 1 160 A T6-160-15682/V/SVB/HI11 200619 1
X
6 1 1 275 A T8-3-8342/V/SVB/HI11 200620 1
X
FS 908
ON
OFF
1
2
3
4
5
6
7
8
01
1
2
3
4
5
6
13
14
01
21
22
1L1
1T1
1L2
1T2
1L3
1T3
7
8
01
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
1
2
3
4
5
6
N
N
01
13
14
21
22
1
2
3
4
5
6
7
8
01
9
10
11
12
13
14
15
16
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
2L2
2T2
2L3
2T3
13
14
21
22
1L1
1T1
1L2
1T2
1L3
1T3
2L1
2T1
01
2L2
2T2
2L3
2T3
103
104
101
102
199956
N/O
N/O
N/C
With emergency switch o/emergency stop function
Photo is representative
