NPM
Maintenance Edition
9.3 Plane Compensation XY
Page 9-10 EJM9BE-MB-09M-21
15
Press .
•
When exiting this screen to the other one, you
are always prompted to save the data.
∗
To save the data obtained by the calibration,
press [Yes].
•
If you press [No], the return-to-origin process
is carried out and the data obtained by the
calibration are lost.
•
After the above operation, the next screen is
displayed.
16
Press + [OK].
•
The head moves to the retraction position.
17
Turn OFF the servo switch.
18
Open the safety cover.
UnitCalibAxisSurface-07E00
15
UnitCalibAxisSurface-08E00
16
NPM
Maintenance Edition
9.3 Plane Compensation XY
EJM9BE-MB-09M-21 Page 9-11
19
Transfer the plane-compensation jig
to the downstream machine or the
downstream conveyor by hand.
20
Remove the plane-compensation jig.
21
Close the safety cover.
22
Turn ON the servo switch.
23
Press [OK].
•
The screen selected in step 15 is displayed.
UnitCalibAxisSurface-09E00
23
NPM
Maintenance Edition
9.4 Head / Plane Compensation Z
Page 9-12 EJM9BE-MB-09M-21
9.4 Head / Plane Compensation Z
This procedure is common to 12-nozzle, 8-nozzle, and 2-nozzle heads.
For the dual conveyor type, put the conveyor into single lane mode.
( Steps 1 through 7 in “10.5 Single Lane Mode Selection on the Dual Conveyor”.
It is not necessary to attach the board support blocks (for single lane mode).)

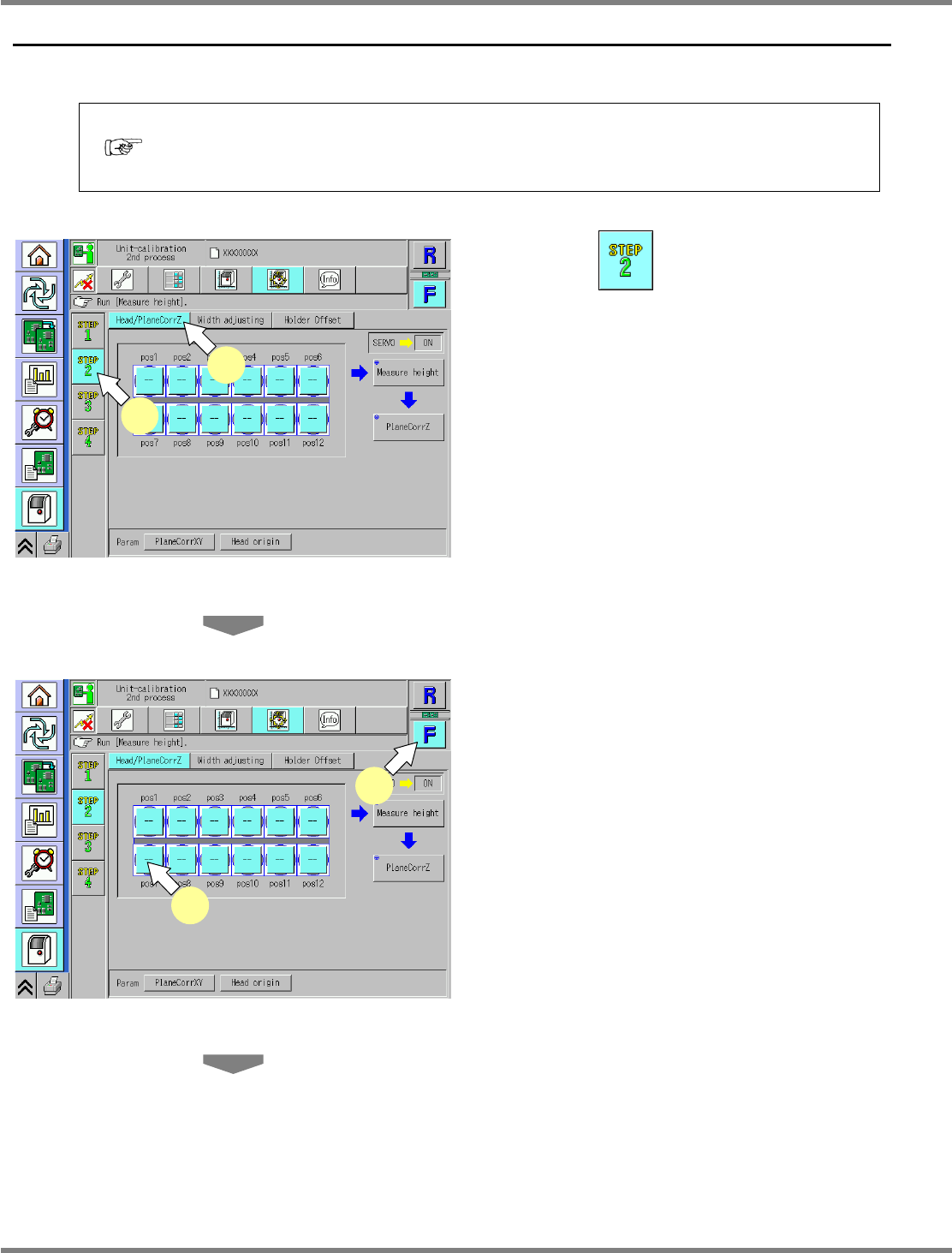

1
Press .
2
Press [Head/PlaneCorrZ].
3
Select a table.
∗
Select the target table for calibration.
4
Select a nozzle position.
∗
Select the target nozzle position for height
measurement.
∗
On the default screen, all the nozzle positions
are selected; basically, all the nozzle positions
should be selected. If, however, there are
unused nozzle positions, only the necessary
nozzle positions should be selected.
UnitCalibAxisSurfaceZ-01E02
1
2
UnitCalibAxisSurfaceZ-01E02
3
4
