NPM
Maintenance Edition
9.7 Placement Load
Page 9-32 EJM9BE-MB-09M-21

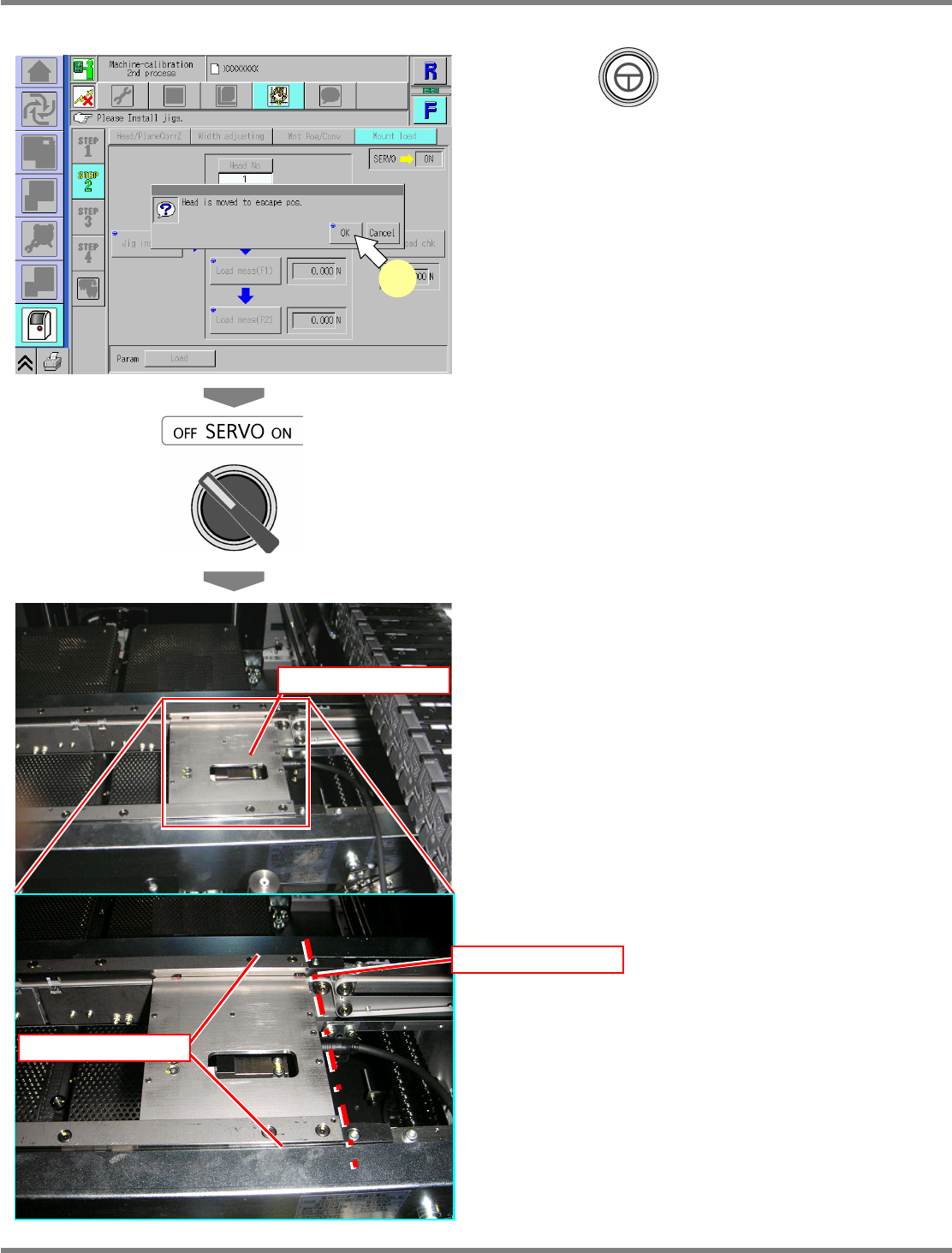

6
Press + [OK].
•
The head moves to the retraction position.
7
Turn OFF the servo switch.
8
Open the safety cover.
9
Set the load measuring jig.
∗
The load measuring jig should be pressed
against the rail’s reference side and set with
its right end fit to the right end on the PCB
clamp of the conveyor.
Load measuring jig
Load measuring jig
Fit
UnitCalibHeadLoad-02E01
6
NPM
Maintenance Edition
9.7 Placement Load
EJM9BE-MB-09M-21 Page 9-33
∗
Connect the power cord to one of the
connector on the power supply unit of the
changing truck.
∗
Route the wire between the nozzle changer
and the cable bearer so that it will not interfere
with the head, as shown in the photo.
10
Close the safety cover.
11
Turn ON the servo switch.
Power supply unit
NPM
Maintenance Edition
9.7 Placement Load
Page 9-34 EJM9BE-MB-09M-21

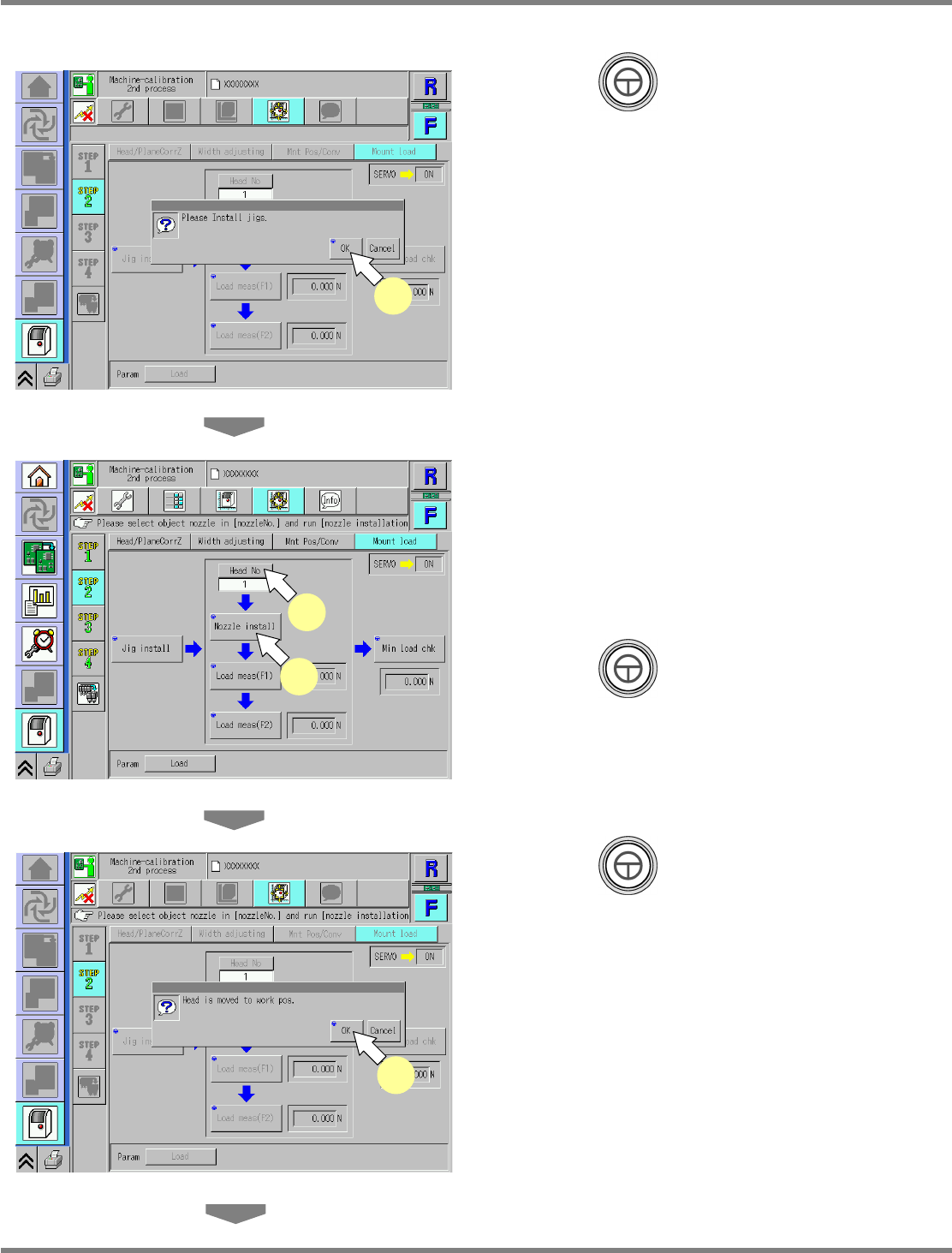

12
Press + [OK].
13
Press [Head No].
•
Every pressing switches the nozzle position
No.
∗
Select the target nozzle position for
calibration.
14
Press + [Nozzle install].
15
Press + [OK].
•
The head moves to the working position.
UnitCalibHeadLoad-03E01
12
UnitCalibHeadLoad-04E01
13
14
UnitCalibHeadLoad-05E01
15
