9.7 Placement Load
EJM9BE-MB-09M-21 Page 9-45

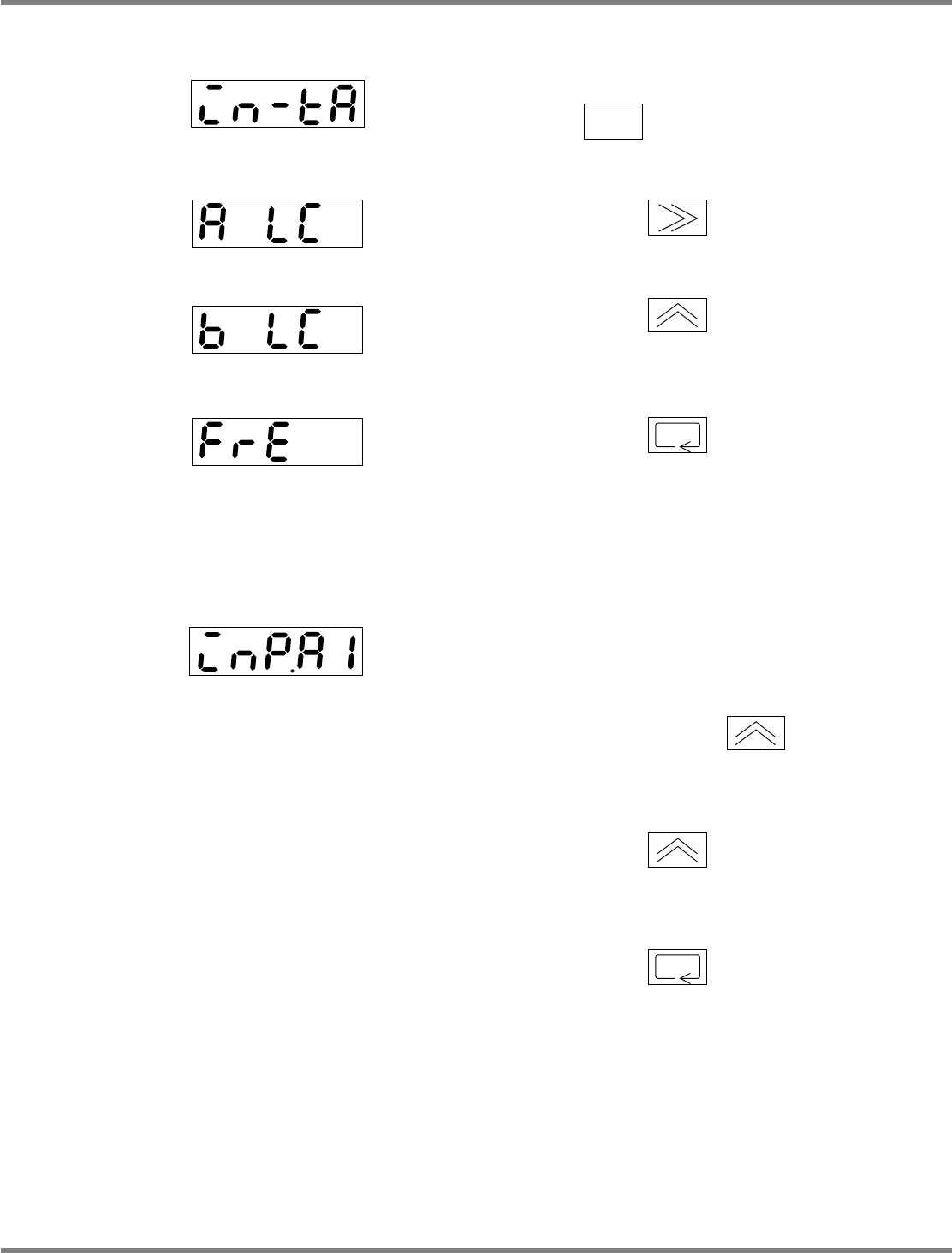

1. Setting the input range
1
Turn on the power, and hold down
for three seconds or more.
2
Press once to blink ‘A LC.’
3
Press several times until ‘b
LC’ appears.
4
Press to accept.
2. Setting the input value 1
1
Set a screen display to ‘inP.A1.’
2
Place a 100
g
weight onto the load
cell, and press once.
•
The screen display blinks.
3
Press again.
•
Teaching is complete.
4
Press to accept.
EJM4A-415E
4H4C-442E
4H4C-443E
4H4C-441E
EJM4A-416E
NPM
Maintenance Edition
9.7 Placement Load
Page 9-46 EJM9BE-MB-09M-21

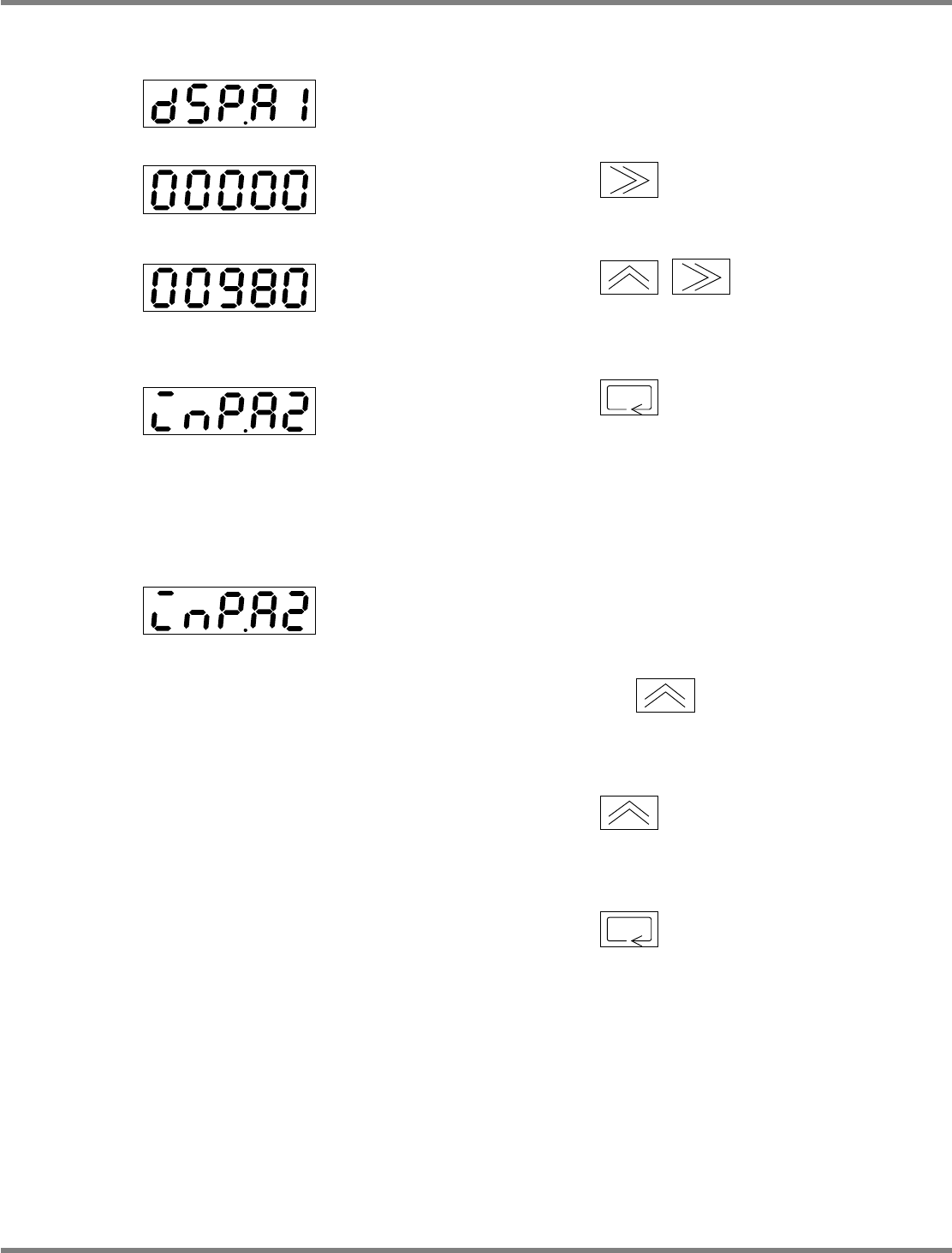

3. Setting the indicated value 1
1
Set a screen display to ‘dSP.A1.’
2
Press to blink ‘0.’
3
Press to set the
display to ‘00980.’
4
Press to accept.
4. Setting the input value 2
1
Set a screen display to ‘inP.A2.’
2
Place a 1
kg
weight onto the load cell,
and press once.
•
Teaching starts.
3
Press again.
•
Teaching is complete.
4
Press to accept.
EJM4A-417E
EJM4A-419E
EJM4A-420E
EJM4A-418E
EJM4A-420E
NPM
Maintenance Edition
9.7 Placement Load
EJM9BE-MB-09M-21 Page 9-47

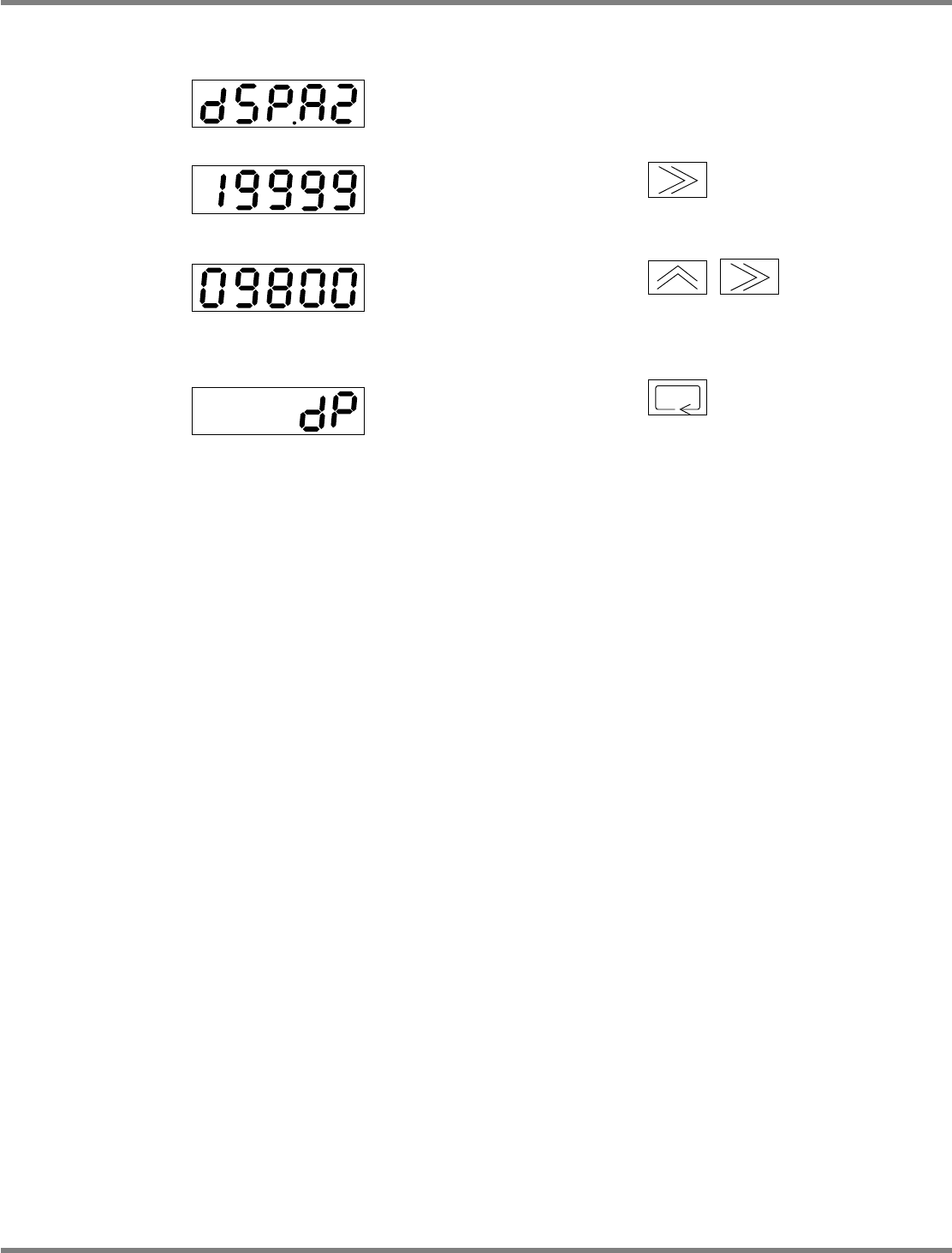

5. Setting the indicated value 2
1
Set a screen display to ‘dSP.A2.’
2
Press to blink ‘19999.’
3
Press to set the
display to ‘09800.’
4
Press to accept.
EJM4A-421E
EJM4A-423E
EJM4A-424E
EJM4A-422E
