NPM
Maintenance Edition
9.8 Line Camera
Page 9-52 EJM9BE-MB-09M-21
16

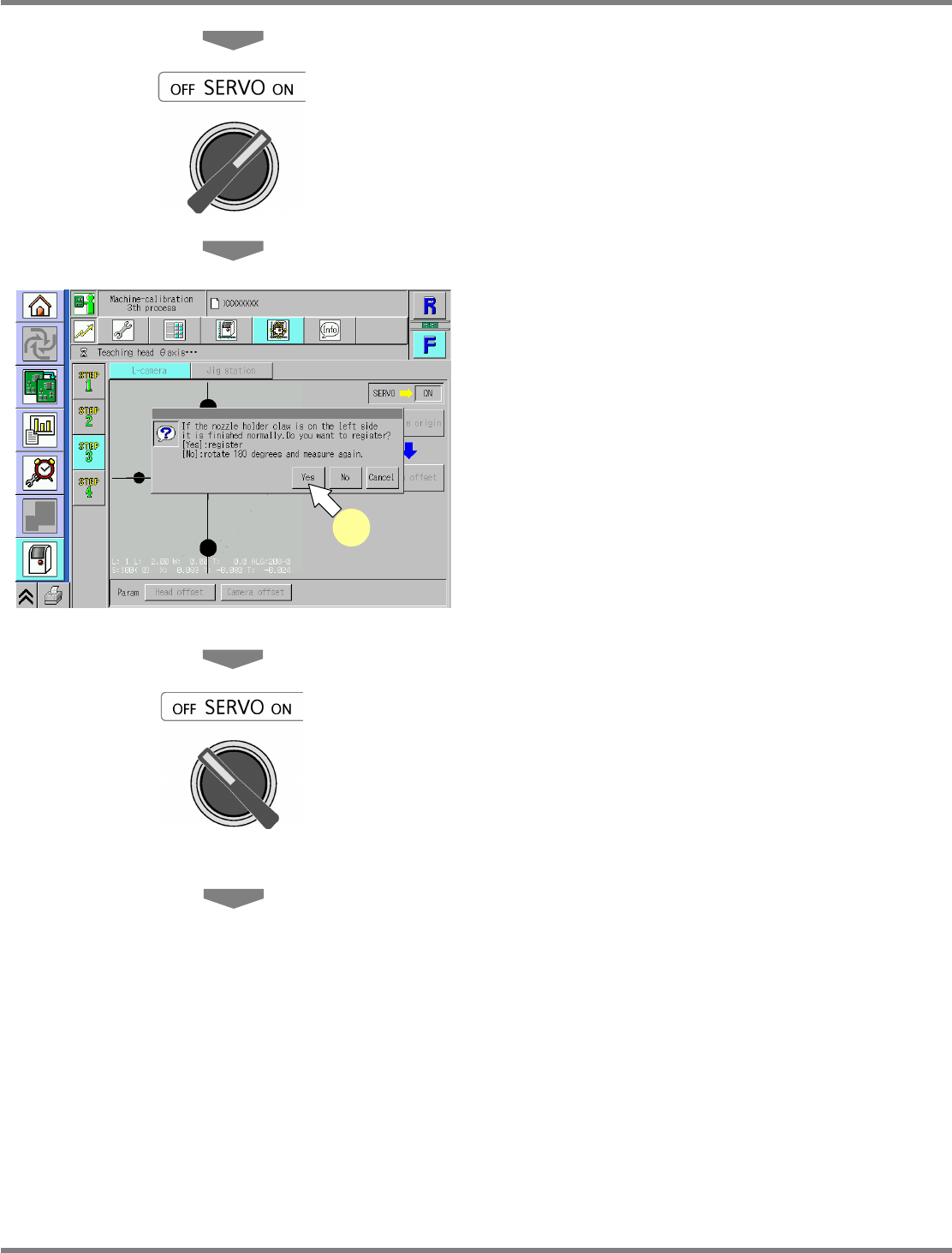

Turn ON the servo switch.
17
Press [Yes].
18
Turn OFF the servo switch.
19
Open the safety cover.
20
Relocate the line camera jig.
12-nozzle head
∗
Relocate the line camera jig from the nozzle
position 9
→
4.
8-nozzle head
∗
Relocate the line camera jig from the nozzle
position 6
→
3.
2-nozzle head
∗
Relocate the line camera jig from the nozzle
position 1
→
2.
UnitCalibLineCamera-04E00
17
NPM
Maintenance Edition
9.8 Line Camera
EJM9BE-MB-09M-21 Page 9-53
21

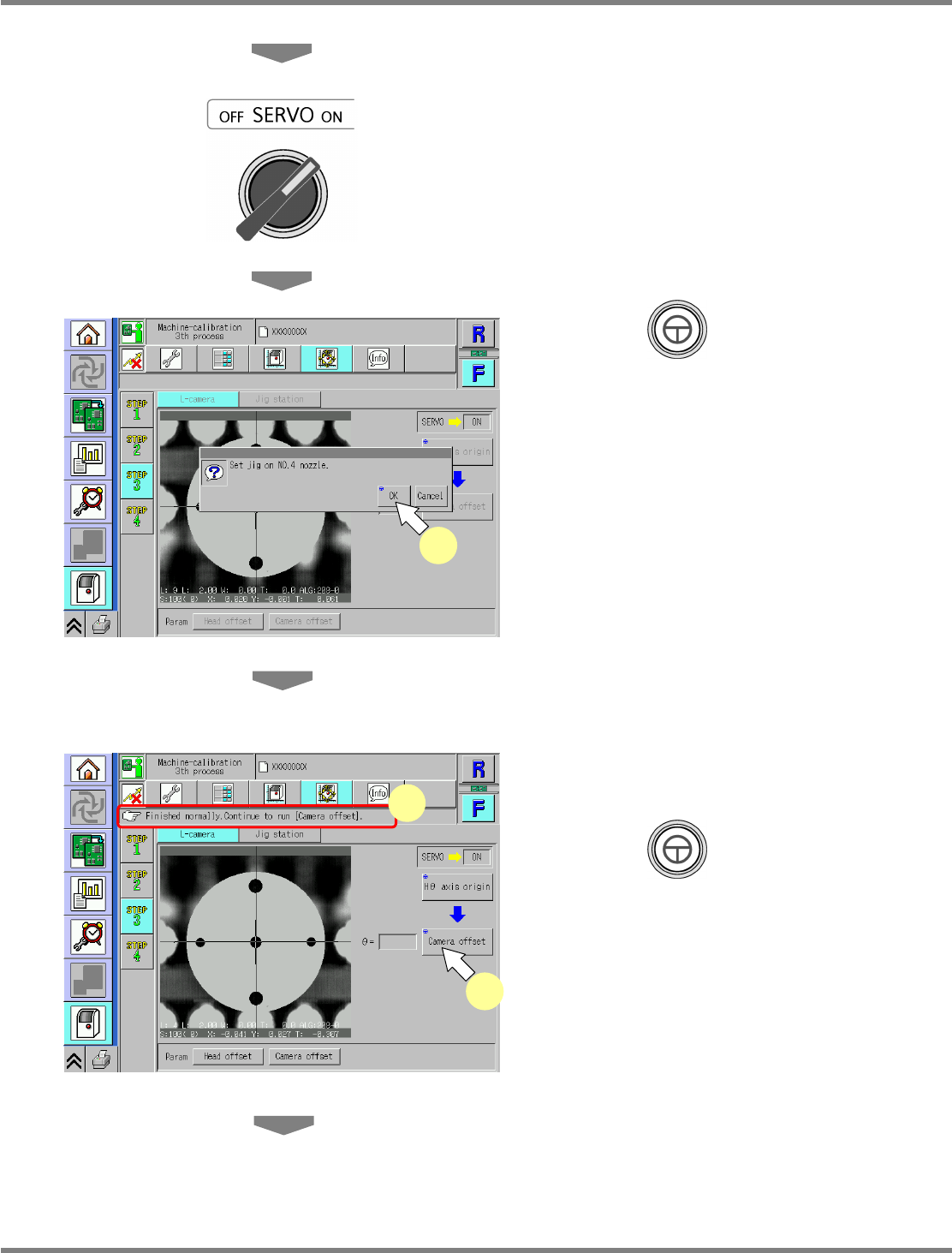

Close the safety cover.
22
Turn ON the servo switch.
23
Press + [OK].
•
The calibration is carried out.
∗
For the 2-nozzle head, perform steps 12 to 17
again, and proceed to the following steps.
24
Check that it is successfully complete.
25
Press + [Camera offset].
UnitCalibLineCamera-06E00
24
25
UnitCalibLineCamera-05E00
23
NPM
Maintenance Edition
9.8 Line Camera
Page 9-54 EJM9BE-MB-09M-21
26

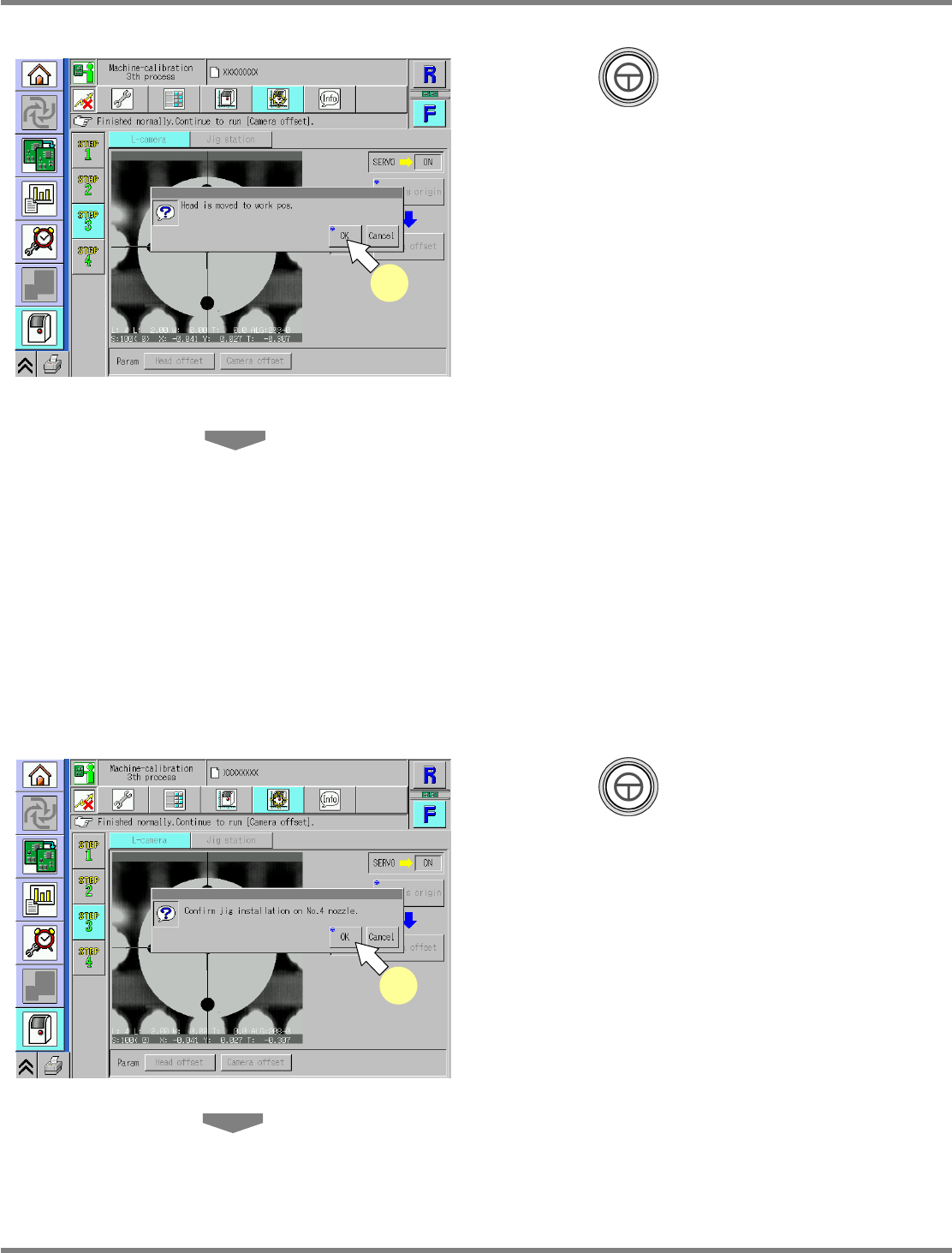

Press + [OK].
•
The head moves to the working position.
27
Check the line camera jig.
12-nozzle head
∗
Check that the line camera jig is attached to
the nozzle position 4.
8-nozzle head
∗
Check that the line camera jig is attached to
the nozzle position 3.
2-nozzle head
∗
Check that the line camera jig is attached to
the nozzle position 2.
28
Press + [OK].
•
The calibration is carried out.
UnitCalibLineCamera-07E00
26
UnitCalibLineCamera-08E00
28
