NPM
Maintenance Edition
9.8 Line Camera
EJM9BE-MB-09M-21 Page 9-55

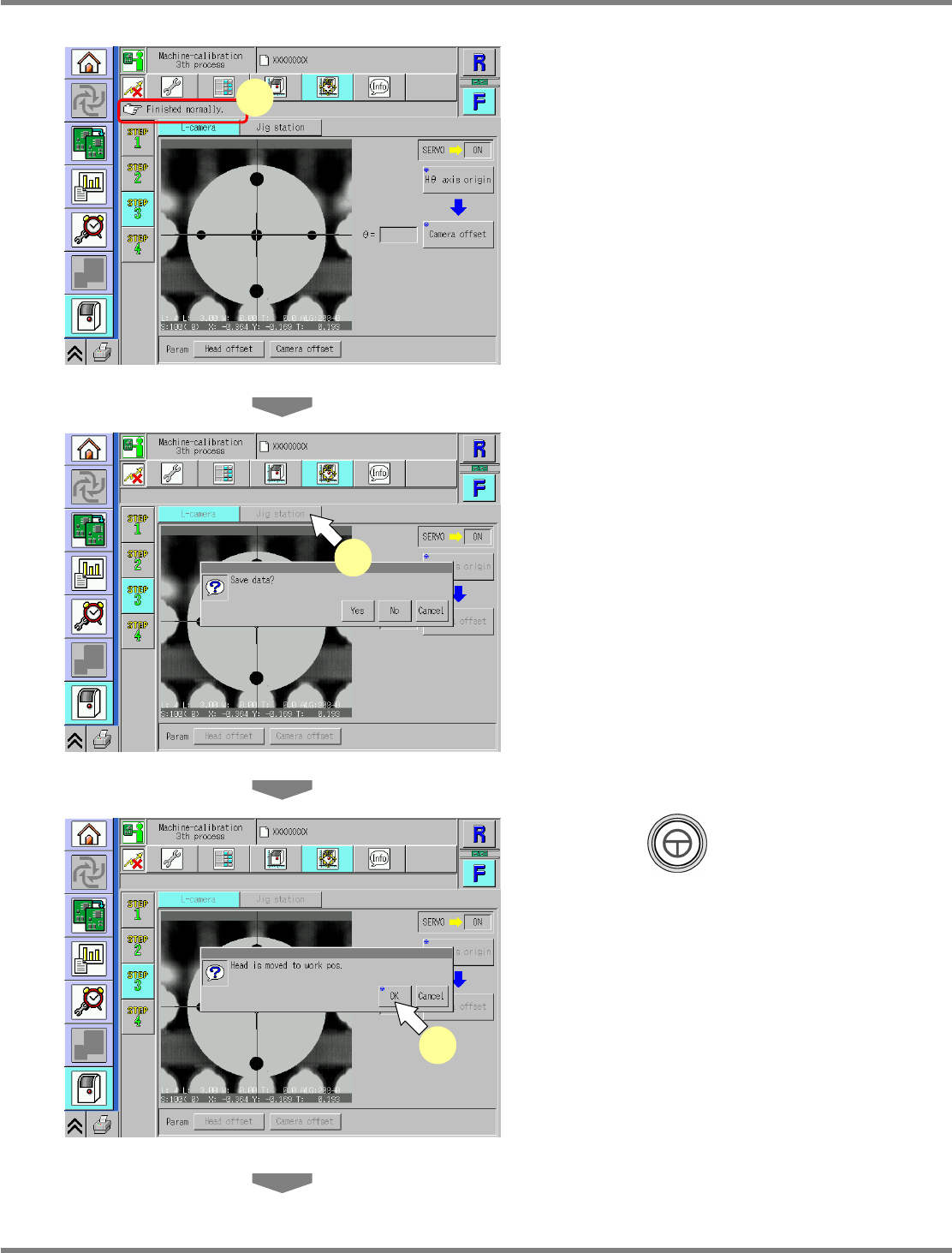

29
Check that it is successfully complete.
∗
Perform steps 3–32 for also the other table.
30
Press [Jig station].
•
When exiting this screen to the other one, you
are always prompted to save the data.
∗
To save the data obtained by the calibration,
press [Yes].
•
If you press [No], the return-to-origin process
is carried out and the data obtained by the
calibration are lost.
•
After the above operation, the next screen is
displayed.
31
Press + [OK].
•
The head moves to the working position.
UnitCalibLineCamera-09E00
29
UnitCalibLineCamera-10E00
30
UnitCalibLineCamera-11E00
31
NPM
Maintenance Edition
9.8 Line Camera
Page 9-56 EJM9BE-MB-09M-21

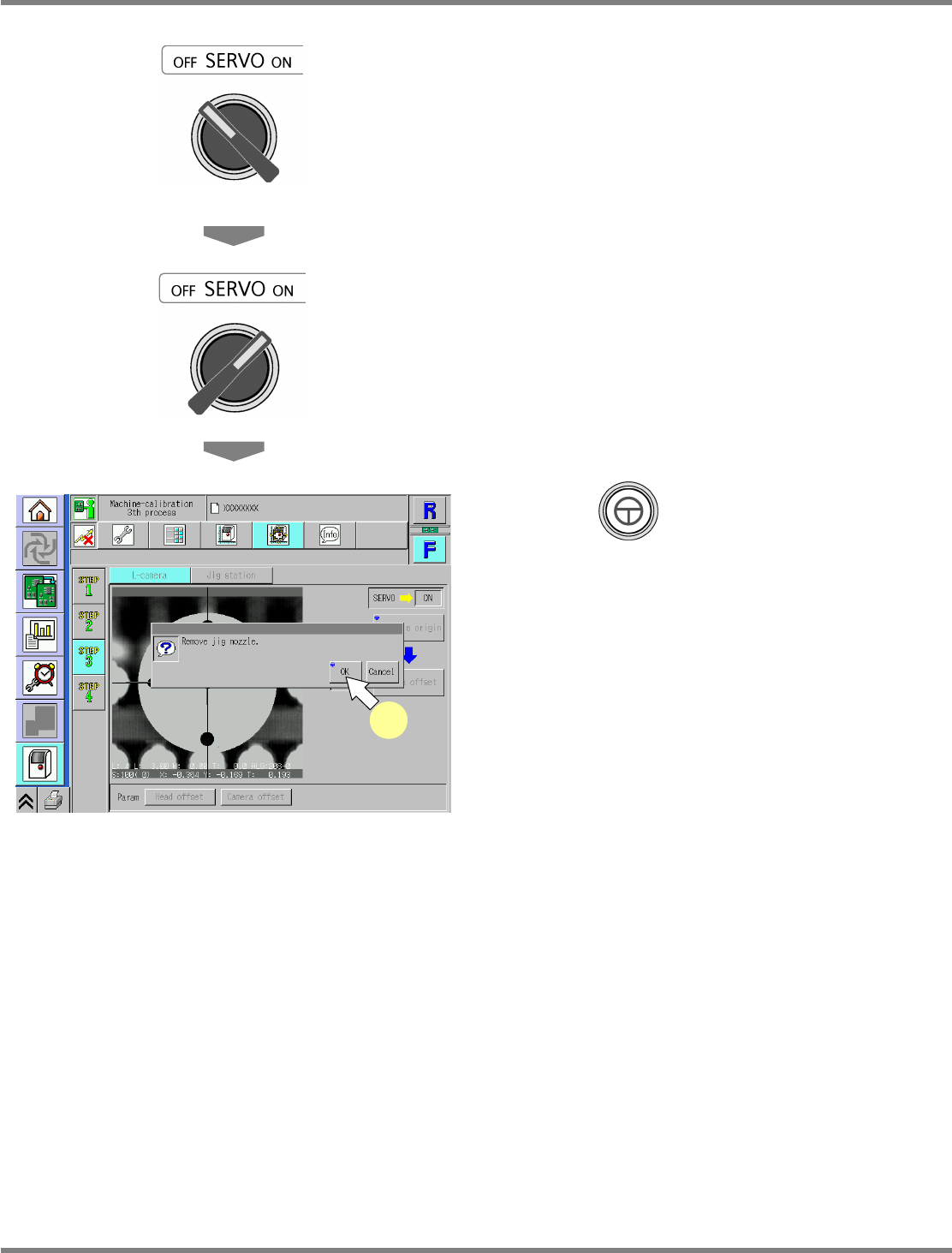

32
Turn OFF the servo switch.
33
Open the safety cover.
34
Remove the jig nozzle.
35
Close the safety cover.
36
Turn ON the servo switch.
37
Press + [OK].
•
After the head moves to the origin position,
the screen selected in step 33 is displayed.
UnitCalibLineCamera-12E00
37
NPM
Maintenance Edition
9.9 Jig Station
EJM9BE-MB-09M-21 Page 9-57

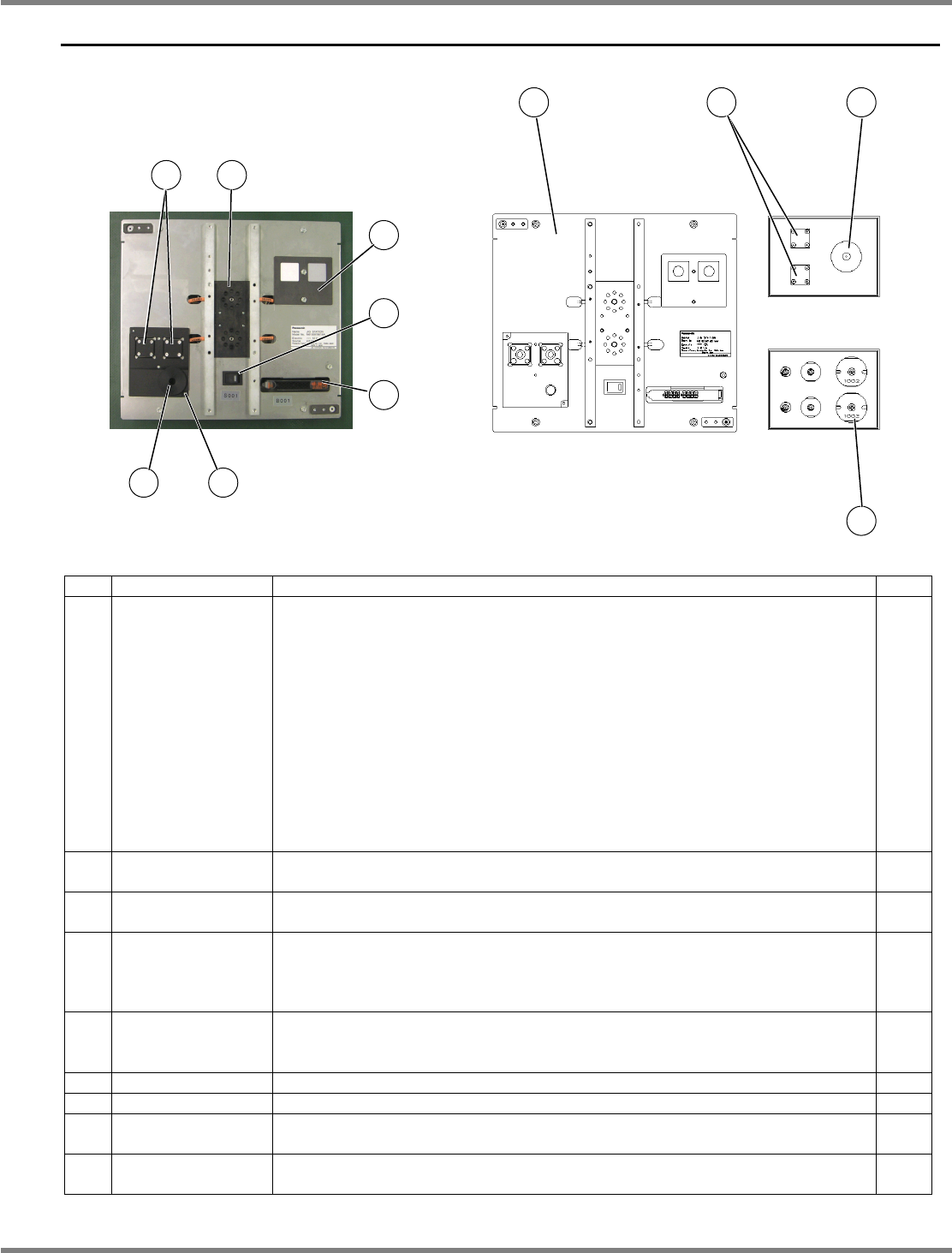

9.9 Jig Station
No. Unit name Function Qty
1 Jig station
Used for calibration of the head parameters after head replacement.
Common among 12-nozzle head, 8-nozzle head and 2-nozzle head.
Power rating: 12 VDC (AA battery
×
8)
Please obtain them by yourself.
For information on how to replace the batteries, see “11.3.1 Battery
Replacement of NPM” - “3 Replacing the Battery for the Jig Station.”
CAUTION
If the batteries are left in, they may leak; therefore, when you will not
use the jig station for a long period, they should be removed and
stored.
Mass: 1.5
kg
, overall dimensions: 240 mm (W)
×
215 mm (D)
×
35 mm (H)
1
2 Jig components
Used for calibration at the jig station (1).
Place them on the jig station when in use.
2
3
Line camera LED
light luminosity jig
Used for calibration of the line camera LED light luminosity at the jig station
(1). Place them on the jig station when in use.
1
4
Nozzles for
calibration
Used for calibration at the jig station (1).
For 12-nozle head: 153S nozzle
For 8-nozzle head: 184 nozzle
For 2-nozle head: 1003 nozzle
2
each
5
Head camera LED
light luminosity jig
storage stage
The jig to be used for calibration of the head camera LED light luminosity is
set here.
---
6 Main power switch The green LED is lit up when power is turned ON. ---
7 Photo sensor Detects the jig components (2). ---
8
Jig recognition
stage
The jig components (2) are mounted and recognized here during calibration.
---
9 Jig storage stage
The jig components (2) and the LED light luminosity jigs are set here before
calibration.
---
6
5
7
9
8
1 2 3
4
3
2
