NPM
Maintenance Edition
9.11 Height Offset
EJM9BE-MB-09M-21 Page 9-73
9.11 Height Offset
This procedure is common to 12-nozzle, 8-nozzle, and 2-nozzle heads.
∗
Before performing calibration, remove the feeders from the slots Nos. 1, 2, 3, 8, 9, 10, 15, 16
and 17.
1
Press .
2
Press [Height offset].
3
Select a table.
∗
Select the target table for calibration.
4
Press + [Pickup].
•
The head moves to the working position.
UnitCalibHeadHightMeasure-01E00
3
4
UnitCalibHeadHightMeasure-01E00
1
2
NPM
Maintenance Edition
9.11 Height Offset
Page 9-74 EJM9BE-MB-09M-21
5
Attach the nozzle.
12-nozzle head
∗
Attach the 230CS nozzle to the nozzle
position 4.
8-nozzle head
∗
Attach the 230C nozzle to the nozzle position
3.
2-nozzle head
∗
Attach the No.1003 nozzle to the nozzle
position 2.
6
Turn OFF the servo switch.
7
Open the safety cover.
8
Attach the nozzle.
9
Close the safety cover.
10
Turn ON the servo switch.
NPM
Maintenance Edition
9.11 Height Offset
EJM9BE-MB-09M-21 Page 9-75

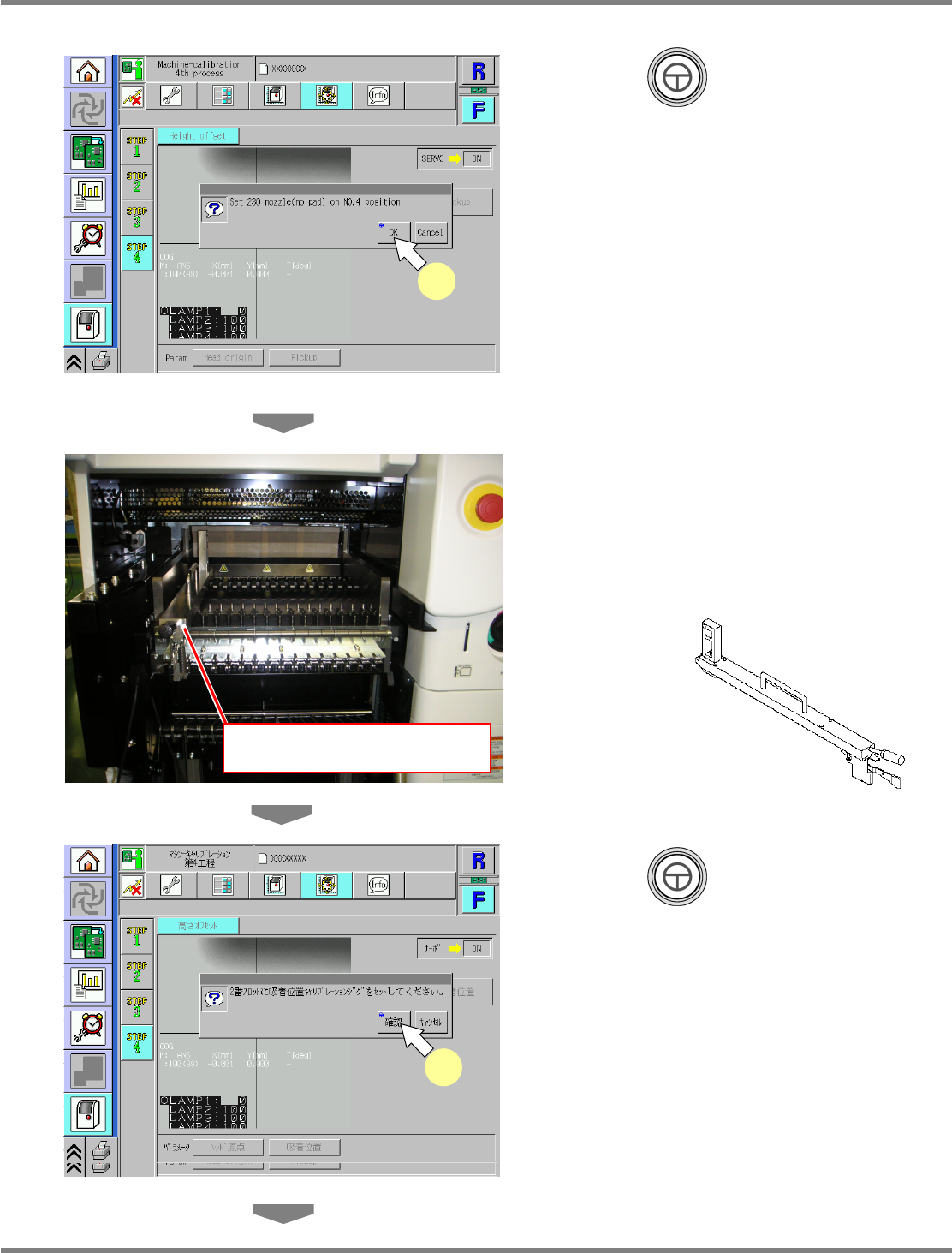

11
Press + [OK].
•
The head moves to the measurement
position.
12
Set the pickup-position-height
teaching jig.
∗
Set the pickup-position-height teaching jig in
the No.2 slot on the left side of the table
selected in step 3.
13
Press + [OK].
•
The calibration is carried out.
UnitCalibHeadHightMeasure-02E00
11
Pickup-position-height teaching jig
(No.2 slot)
UnitCalibHeadHightMeasure-03E00
13
UnitCalibHeadHightMeasure-03J00
13
Pickup-position-height teaching jig
