NPM
Maintenance Edition
9.12 Vertical Line Camera
Page 9-80 EJM9BE-MB-09M-21
10
Press + [OK].
11
Press + [Camera offset].
•
The calibration is carried out.
12
Check that it is successfully complete.
∗
Perform steps 3–12 for also the other table.
UnitCalibLineCamera-02E01
10
UnitCalibVerticalLineCamera-01E00
11
UnitCalibVerticalLineCamera-03E00
NPM
Maintenance Edition
9.12 Vertical Line Camera
EJM9BE-MB-09M-21 Page 9-81
13
Press .
•
When exiting this screen to the other one, you
are always prompted to save the data.
∗
To save the data obtained by the calibration,
press [Yes].
If you press [No], the return-to-origin process is
carried out and the data obtained by the
calibration are lost.
After the above operation, the next screen is
displayed.
14
Press + [OK].
•
The head moves to the retraction position.
UnitCalibVerticalLineCamera-03E00
13
UnitCalibVerticalLineCamera-07E00
14
UnitCalibVerticalLineCamera-04E00
NPM
Maintenance Edition
9.12 Vertical Line Camera
Page 9-82 EJM9BE-MB-09M-21
15

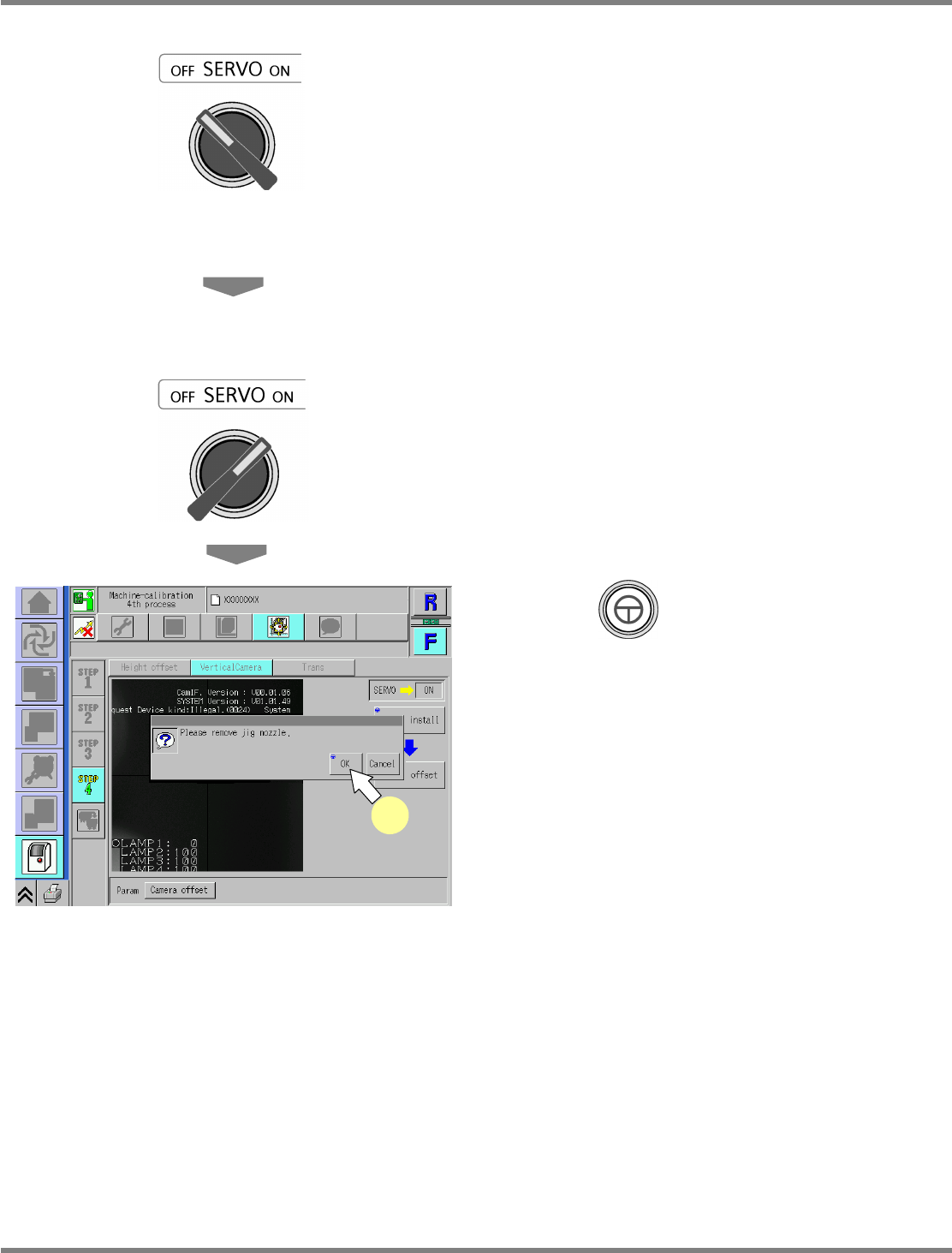

Turn OFF the servo switch.
16
Open the safety cover.
17
Detach the nozzles.
18
Close the safety cover.
19
Turn ON the servo switch.
20
Press + [OK].
•
The screen selected in step 13 is displayed.
UnitCalibVerticalLineCamera-05E00
20
