MEMO
MODEL HH-G300
1004-005
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
M-6
501 6301598628 MOTOR,AC-SERVO 1 -M31 860M--100-001 4M150248
506 6301414539 ACCESSORY,SV 12 -Y0401 - Y0412
860M--100-006 23D10009
507 6301269252 AIR LINE EQPT 24 860M--100-007 225B0508
510 6301530024 GUIDE,LINEAR 12 860M--100-010 222L0864
511 6301589060 ROTOR 1 860M--100-101 213G0256
512 6301321141 ROTOR 1 860M--100-102 213G0205
514 6301477220 HOLDER 12 860M--100-014 216B1606
516 6301250328 CAM FOLLOWER 12 860M--100-016 222H0134
519 6301574943 SENSOR,PELEC(SENSOR,PELE) 1 -U03 860M--100-019 23G00302
519 -01 6301618654 SENSOR,PELEC 1 23G00308
521 6301607290 BASE 1 860M--100-121 210A2942
522 6301251417 SPRING,COMP 12 860M--100-126 222M1300
526 6301450018 BLOCK 12 860M--100-116 211G4547
529 6301273792 SEAL 24 860M--100-029 226A0189
531 6301277660 DISK 12 860M--100-131 213D1166
532 6301277677 DISK 1 860M--100-136 213D1167
536 6300765090 SEAL 36 860M--100-036 226A0127
540 6301256382 SEAL(SEAL) 24 860M--100-040 226A0187
541 6300553253 SEAL 12 860M--100-041 226A0105
542 6301278704 SEAL 2 860M--100-042 226A0199
545 6301591674 BLOCK 1 860M--100-145 211G5472
547 6301591711 BRACKET 1 860M--100-107 211FC709
548 6301282763 DISK 1 860M--100-108 213D1169
549 6301286921 HOLDER 12 860M--100-109 216B1434
550 6301276359 PLATE(PLATE) 1 211D9651
551 6301297064 BOLT,HEX-SCT 10 M1.6X4 860M--100-201 221A0332
556 6300081114 BOLT,HEX-SCT 3 M2X8 860M--100-206 221A0115
557 6301297057 BOLT,HEX-SCT 24 M1.6X3 860M--100-207 221A0331
558 6300007466 BOLT,HEX-SCT 24 M2X6 860M--100-208 221A0001
562 6300007510 BOLT,HEX-SCT 4 M3X8 860M--100-212 221A0006
565 6300007565 BOLT,HEX-SCT 2 M3X20 860M--100-215 221A0011
569 6300007763 BOLT,HEX-SCT 4 M5X16 860M--100-219 221A0031
576 4111412806 WASHER SPR 3 6 860M--100-226 221H0281
578 4111416705 WASHER SPR 5 4 860M--100-228 221H0287
581 4111413902 WASHER V 3X7X0.5 6 860M--100-231 221H0312
583 4111414107 WASHER V 5X10X1 4 860M--100-233 221H0318
591 6301531069 ASSY,BLOCK 1 011G0053
592 6301556000 ASSY,GUIDE,LINEAR 1 022L0011
593 6301556017 ASSY,GUIDE,LINEAR 1 022L0012
GXH-3J 2Unit/1Machine
GXH-3
4Unit/1Machine
M-6 list-1
MEMO
MODEL HH-G300
0712-002

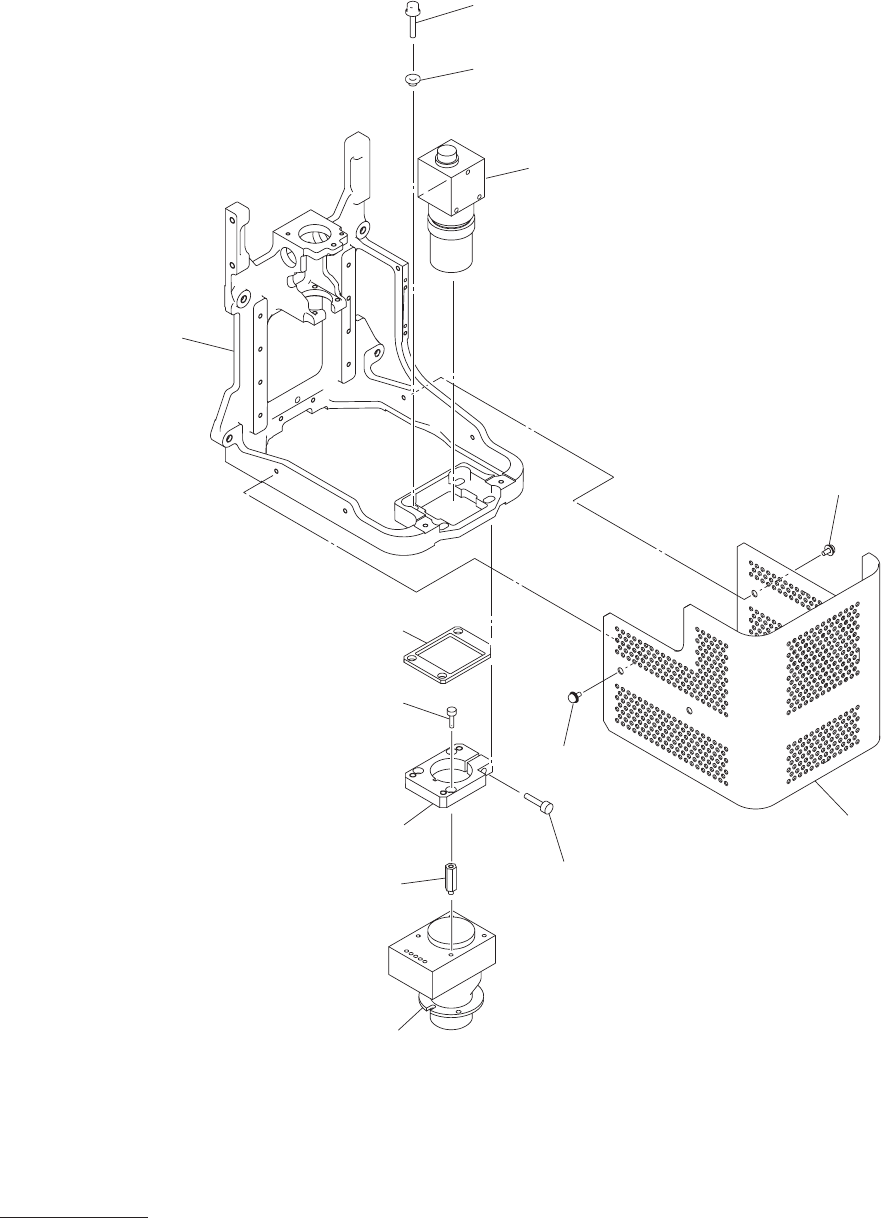

ヘッド部
HEAD SECTION
Fig. M-7
基板認識カメラ
PEC Recognition Camera
612
601
603
604
602
611
See Fig.M-1
Key No.20
638
668
671
671
663
668
.
677
.
678
M-7 illust-1
