1OM-1505 2-18 4. Shutdown : Chap.2 1002-002 4.3 Locking the Power Breaker Notice When the machine is not to be used for a long period of time, lock the power breaker with the padlock. Procedure (1) Pull out the lock leve…
1OM-1505
4. Shutdown : Chap.2
2-171002-002

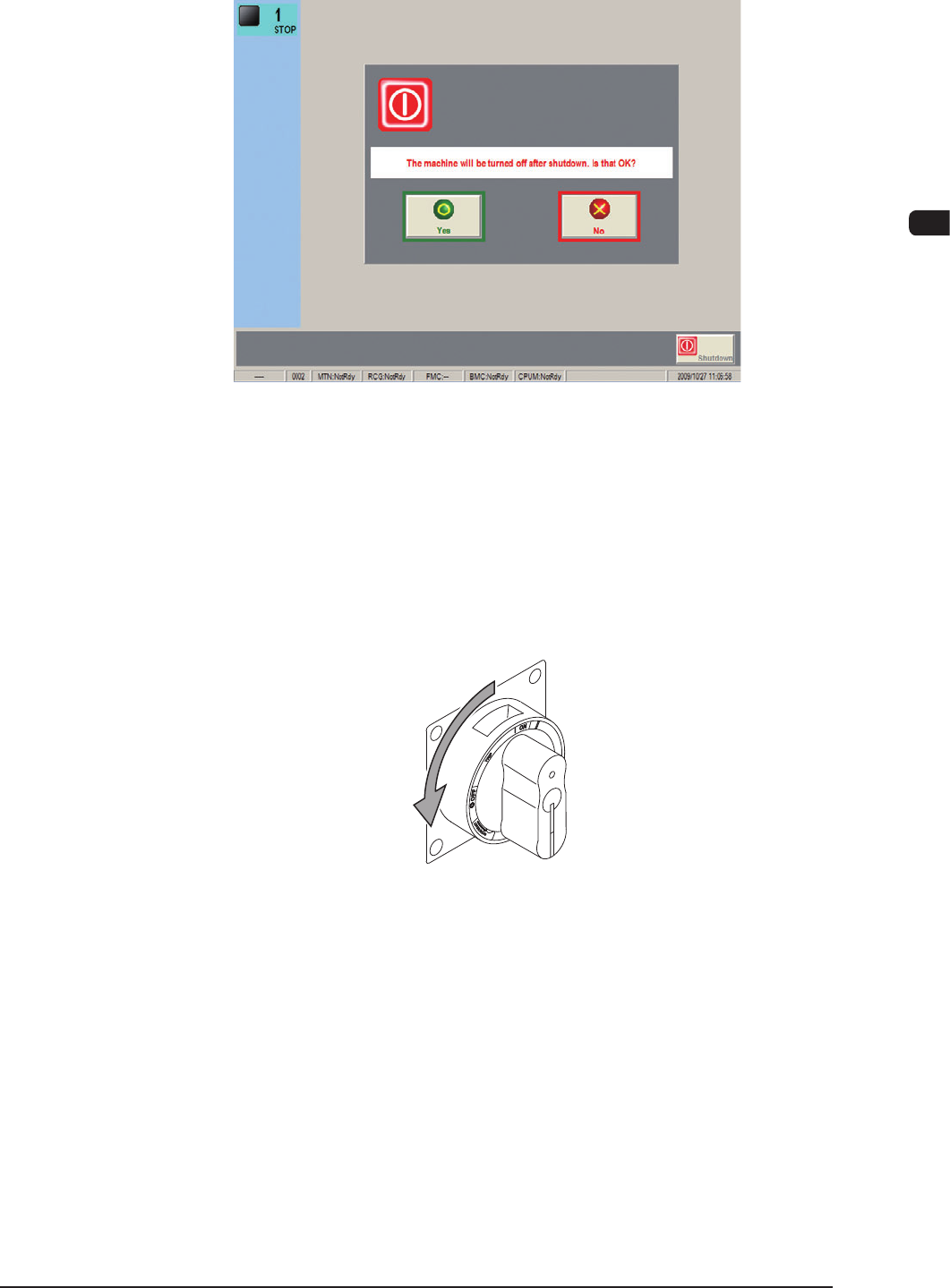

(2) Press the [SHUTDOWN] button on the "Top" window.
The shutdown conrmation window will be displayed.
F1B17
(3) Press the [Yes] button.
After the system shutdown processing, the power to the machine is stopped.
When the [No] button is pressed, the shutdown processing is stopped and the
"Top" window is returned.
(4) Set the lever of the power breaker to the "OFF" position. The lever of the
power breaker is located on the front side of the machine.
F1B18
1OM-1505
2-18
4. Shutdown : Chap.2
1002-002
4.3 Locking the Power Breaker
Notice
When the machine is not to be used for a long period of time, lock the
power breaker with the padlock.
Procedure
(1) Pull out the lock lever of the power breaker in Direction A (indicated in the
gure below).
Be sure not to release your hand from the lock lever. Otherwise, the lock
lever will pull back in place.
(2) Engage the shackle of the padlock through the lock slot and lock the crank.
Lock Lever
A
Lock Lever
Locking the Power Breaker
Padlock
F1B19
CAUTION
The padlock key should be kept in such a way that
nobody except the personnel in charge of maintenance can
supervise it.
1OM-1505
0906-001 3-A
Chapter 3
Outline of Automatic Operation
This chapter described the routine automatic operation and component
supply procedures.
1. Automatic Operation
2. Squeegee Replacement and Solder Paste
Replenishment
3. PCB Replenishment
4. Automatic Operation Stop, Interruption and Re-Start
5. Running-In Operation
