1OM-1505
3-6
1. Automatic Operation : Chap.3
1002-002
1.2.2 Preparation for Solder Paste
Procedure
(1) Press the cover lock switch on the machine front and open the transparent
covers on the machine front.
(2) Replenish solder paste on the stencil.
Squeegee
Printing Pattern
Stencil
Solder Paste
(Rear Side of Machine)
(Front Side of Machine)
F1C12
(3) Close the transparent cover.
(4) Press the cover lock switch.
Note
If solder paste is left free for a long period of time, it dries and cannot be
used any more.
Therefore, it must be supplied right before the automatic operation is
started.
Reference
Refer to "5.2 Squeegee Change" in "Chapter 3 (Vol. 2)" for details.
1OM-1505
1. Automatic Operation : Chap.3
3-7
1.3 Start of Automatic Operation
1.3.1 Starting the System Program
Con rm that the machine is powered. After the con rmation, hold down the
[POWER ON] button for more than 1 second.
The [POWER ON] button illuminates in red, the system program starts, andthe
machine executes the self-diagnostics program.

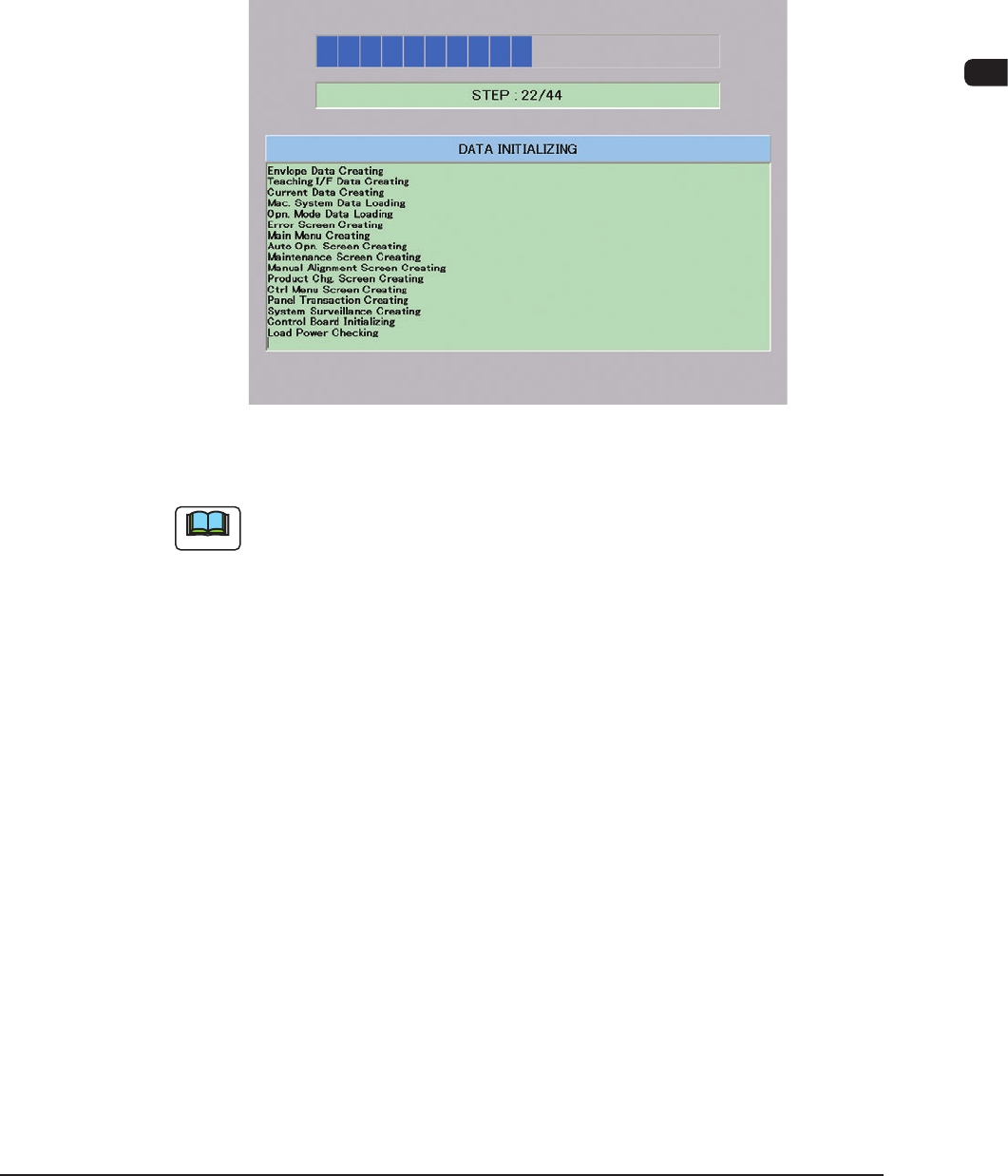

"Self-Diagnostics (Data Initializing)" Window
F1C6
Note
It takes about 2 to 3 minutes for the machine to make a self-diagnostics. Please
wait until another window appears.
1002-002
1OM-1505
3-8
1. Automatic Operation : Chap.3
1002-002
1.3.2 Login Operation

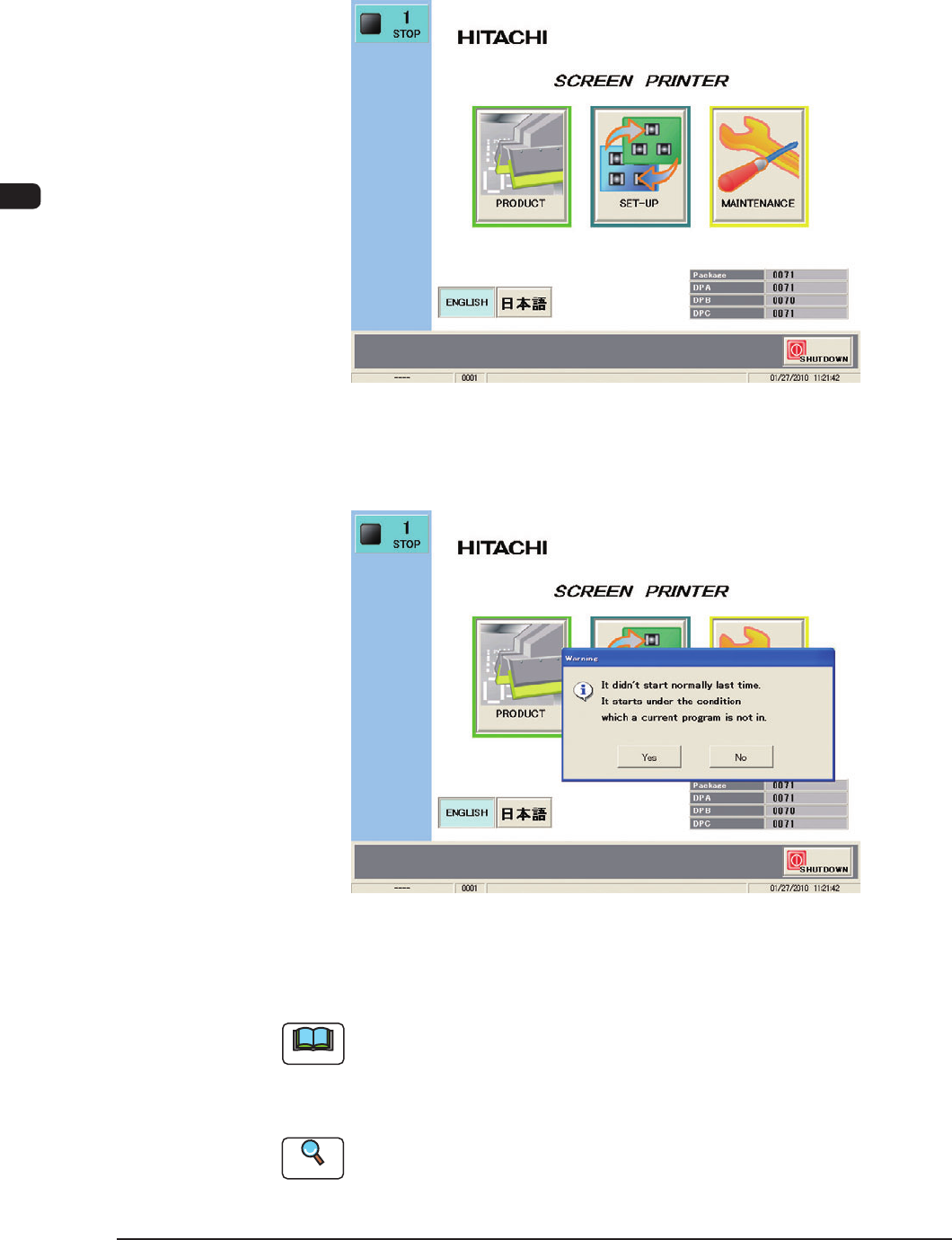

After the self-diagnostics program is completed, the [POWER ON] button turns
yellowish green and the "Top" window appears onthe touch screen.
F1C7
In the case that the startup operation was not performed normally last time, the
"Warning" window appears.
F1C8
When the [YES] button is pressed, the machine is started up under the condition
that the current pattern program has not been selected.
Note
In the case that there is an error in the current pattern program, pressing the [YES]
button might start up the machine normally.
In the case that the machine is not started normally, contact Sales Dept. of
Hitachi High-Technologies, or our sales agent.
Reference
Refer to "Chapter 3, 1.1 "Top" Window" for details.
