1OM-1505
1. Automatic Operation : Chap.3
3-7
1.3 Start of Automatic Operation
1.3.1 Starting the System Program
Con rm that the machine is powered. After the con rmation, hold down the
[POWER ON] button for more than 1 second.
The [POWER ON] button illuminates in red, the system program starts, andthe
machine executes the self-diagnostics program.
"Self-Diagnostics (Data Initializing)" Window
F1C6
Note
It takes about 2 to 3 minutes for the machine to make a self-diagnostics. Please
wait until another window appears.
1002-002
1OM-1505
3-8
1. Automatic Operation : Chap.3
1002-002
1.3.2 Login Operation
After the self-diagnostics program is completed, the [POWER ON] button turns
yellowish green and the "Top" window appears onthe touch screen.
F1C7
In the case that the startup operation was not performed normally last time, the
"Warning" window appears.
F1C8
When the [YES] button is pressed, the machine is started up under the condition
that the current pattern program has not been selected.
Note
In the case that there is an error in the current pattern program, pressing the [YES]
button might start up the machine normally.
In the case that the machine is not started normally, contact Sales Dept. of
Hitachi High-Technologies, or our sales agent.
Reference
Refer to "Chapter 3, 1.1 "Top" Window" for details.
1OM-1505
1. Automatic Operation : Chap.3
3-9
1.3.3 "AUTO OPN. >> MAIN" Window
Procedure
(1) Press the [AUTO OPN] button in the "Top" window.
(The "AUTO OPN." window appears on the touch screen.)
F1C9
(2) Press the [OPN MODE] button in the "AUTO OPN" window.
(The "Test Opn Mode" tab sheet appears as an initial page of the
"OPERATION" window.
Note
Pressing the [Run Mode] button can also display the "TEST Opn Mode"
tab sheet.

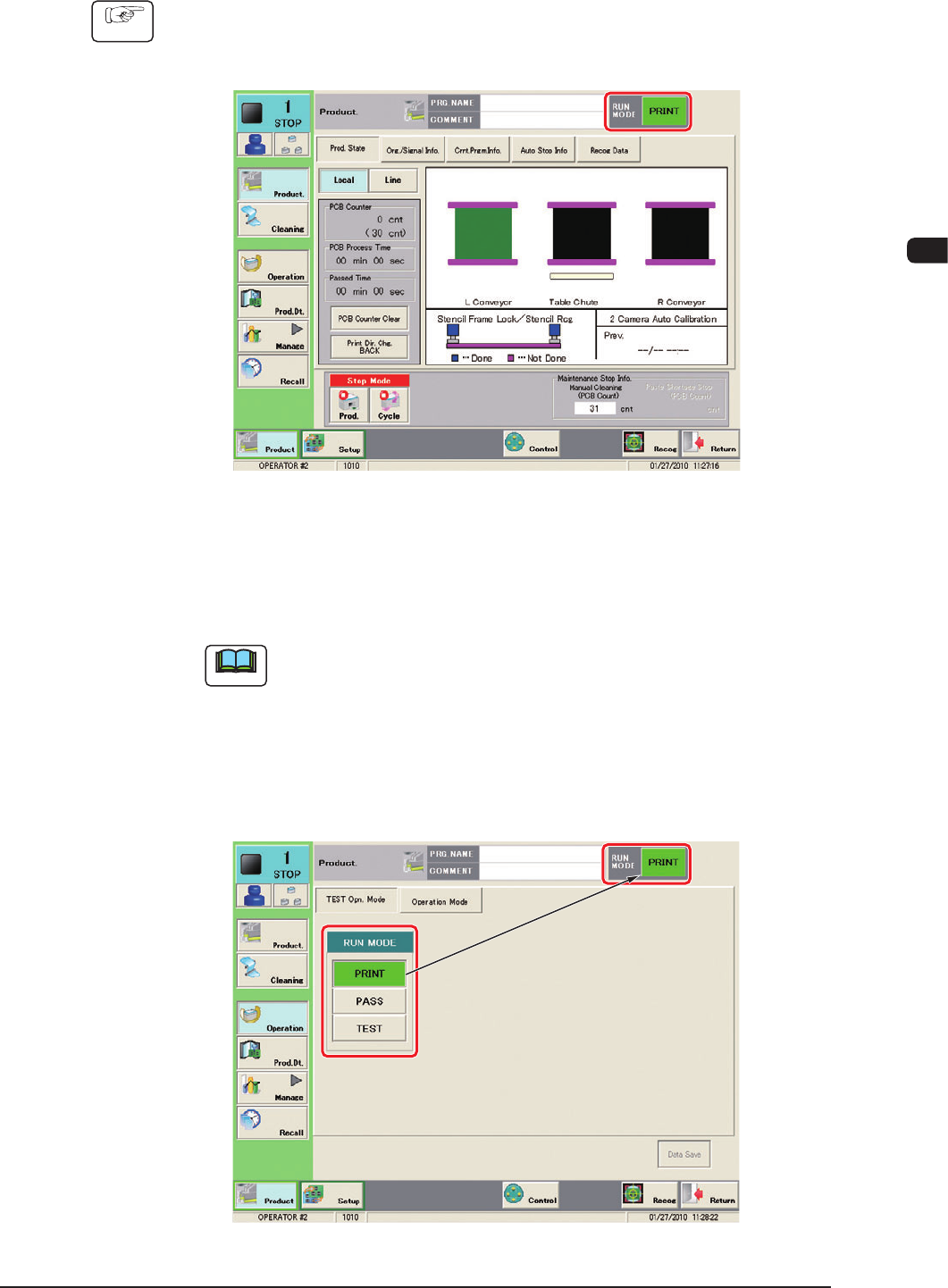

(3) Press the [PRINT] button in the "Run Mode" selection box.
(The "RUN MODE" displayed on the upper section of the tab sheet will be
changed to "PRINT".)
F1C10
1002-002
