2. Squeegee Replacement and Solder Paste Replenishment : Chap.3
2.2 Solder Paste Replenishment during the Automatic
Operation
Procedure
(1) Press the [STOP] button on the operation panel.
(The automatic operation is stopped temporarily.)

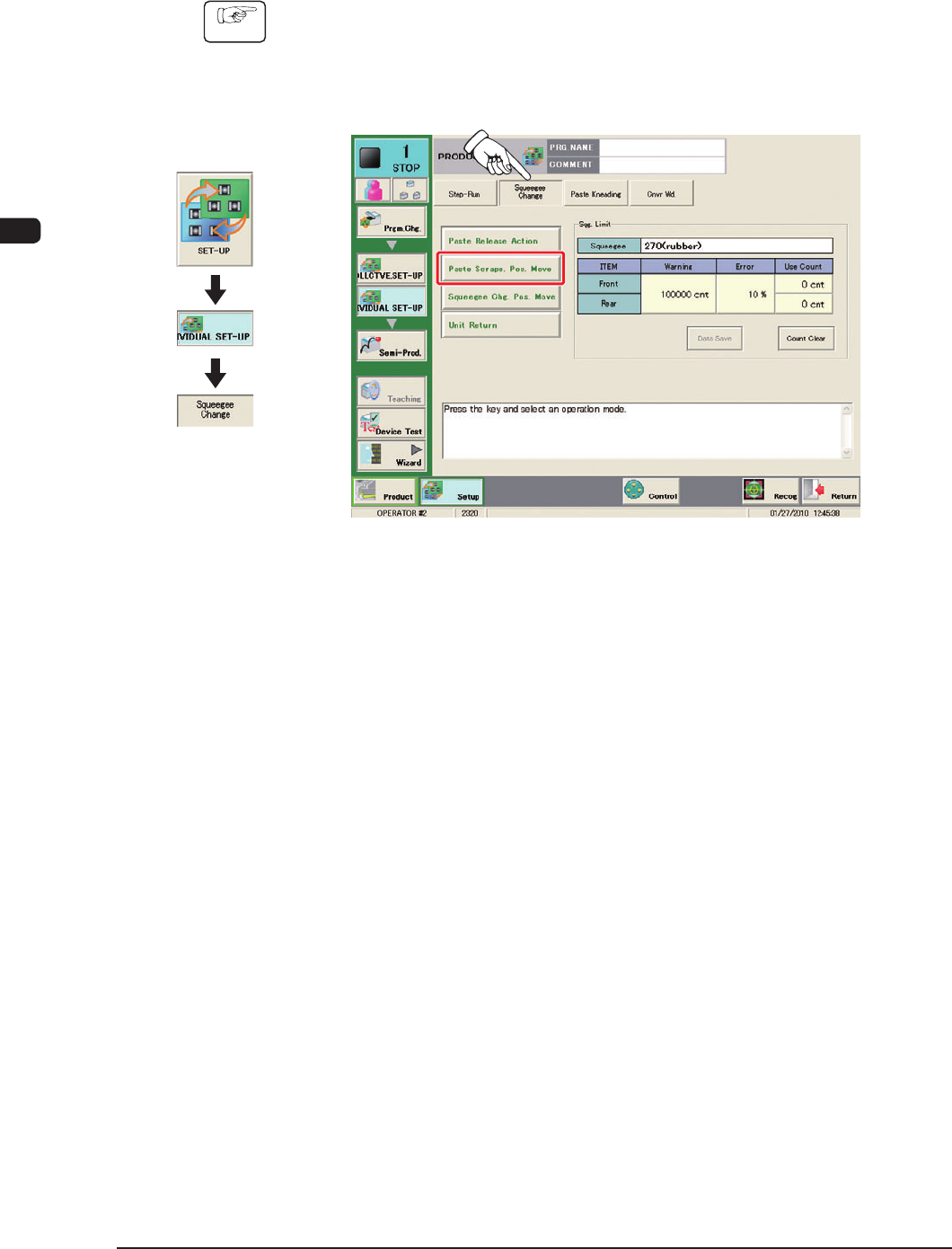

(2) Press the [Squeegee Change] tab to display the following tab sheet.
F1C17
(3) Select the [Paste Scrape. Pos. Move] button and press the [START] button on
the operation panel.
(The squeegees and stencil are moved to the paste scraping position.)
(4) Press the cover lock switch.
1002-003
Graphic
Development
1OM-1505
2. Squeegee Replacement and Solder Paste Replenishment : Chap.3
3-17
(5) Open the transparent covers on the machine front and replenish the solder
paste over the left solder paste on the stencil.
Squeegee
Printing Pattern
Stencil
Solder Paste
(Rear Side of Machine)
(Front Side of Machine)
F1C18
Note
Depending on the condition of the machine stop, the solder paste is located
on the rear side of the stencil.
(6) Close the transparent covers.
(7) Press the cover lock switch.
(8) Press the [STOP] button on the operation panel.
(The Automatic Operation is re-started.)
1002-002
1OM-1505
3-18
3. PCB Replenishment : Chap.3
3. PCB Replenishment
When the machine gets short of PCBs during automatic operation, the input
machine produces an error alarm or the machine stops automatically.
(1) When the input machine has issued an error alarm, follow the step
below.
Replenish the input machine with PCBs and re-start the automatic operation.
(2) When the machine has stopped automatically, follow the step below
The input machine has stopped automatically in a normal condition.
In normal cases, it means that the production is completed.
