1OM-1505 4-6 3. Program Change Operation: Chap.4 3.4 Backup Pin Adjustment and PCB Backup Jig or PCB V acuum Jig Installation This section describes the backup pin installation position adjustment and the installation of…

1OM-1505

3. Program Change Operation: Chap.4

4-5

3.3 SET-UP

Perform various setup operations using the "Setup" window.

Reference

Refer to "Volume 2, Chapter 3 Product Change Menu" for the operation

procedure.

1002-002

1OM-1505

4-6

3. Program Change Operation: Chap.4

3.4 Backup Pin Adjustment and PCB Backup Jig or PCB

Vacuum Jig Installation

This section describes the backup pin installation position adjustment and the

installation of the PCB backup jig or PCB vacuum jig prepared for the product

model.

3.4.1 In the case that the Backup Pins are used:

Stand the backup pins on the well-balanced positions where these backup pins

can support the PCB securely in the printing operation and they do not hinder the

printing operation.

Note

When the backup pins are arranged on the positions out of the PCB or

unbalanced positions, the printing operation might not be available.

3.4.2 In the case that the PCB Backup Jig or PCB Vacuum Jig is used:

Set the PCB backup jig on the backup plate hole position and insert the pilot pins.

Note

When the PCB vacuum jig is used, remove the plug from the vacuum hole.

Front Side of Machine

Vacuum Hole

Backup Plate

F1D4

Backup Jig or Vacuum Jig

Pilot Pins

F1D4-1

1002-002

1OM-1505

3. Program Change Operation: Chap.4

4-7

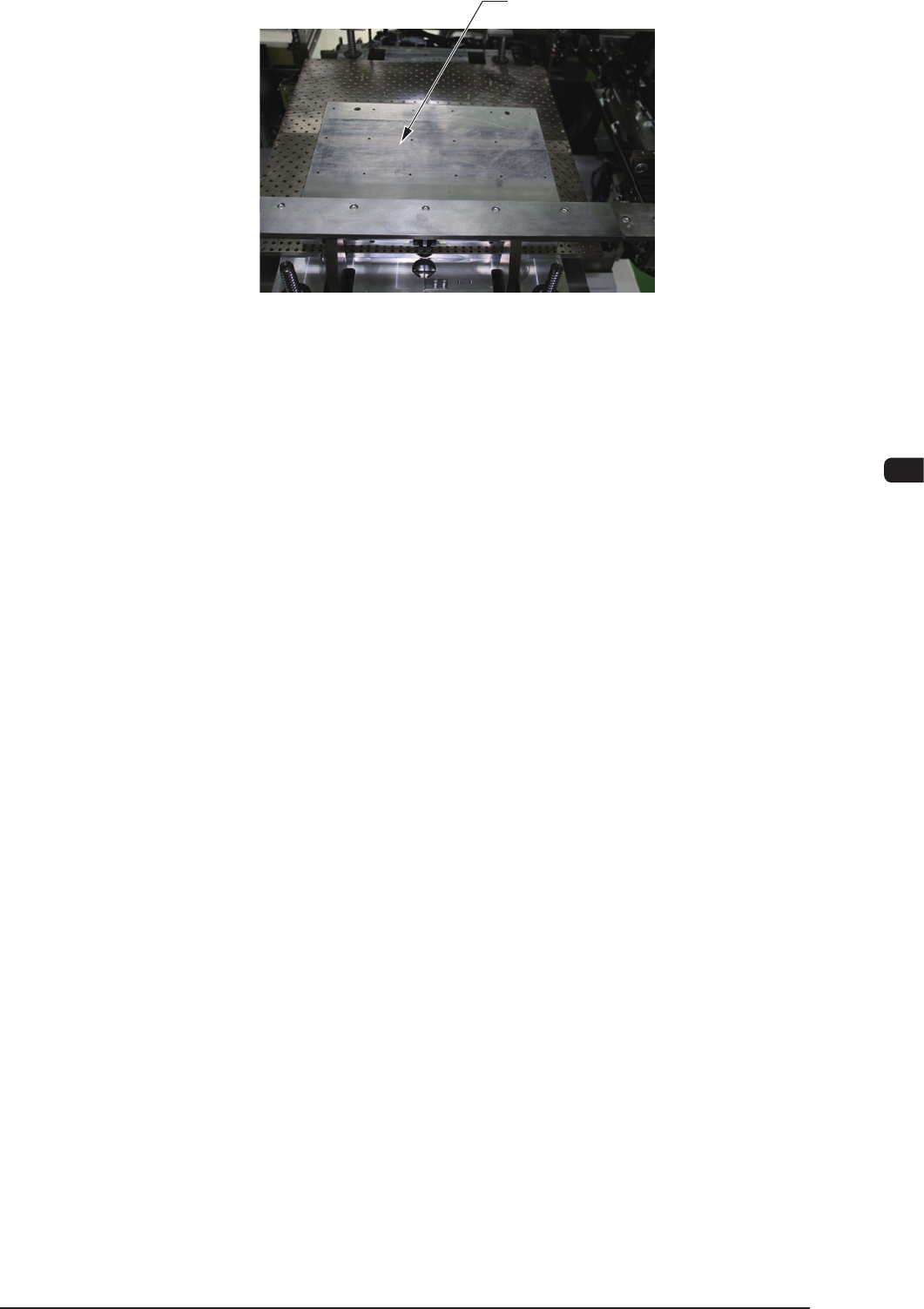

PCB Backup Jig

Front Side of Machine

PCB Backup Jig Operations F1D4-2

3.4.3 In the case that other jig is used:

When other jig is used, consult with Sales Dept., in Hitachi High-Technologies or

our sales agent.
