3. Program Change Operation: Chap.4
4-13
(8) Close the transparent covers and press the cover lock switch.

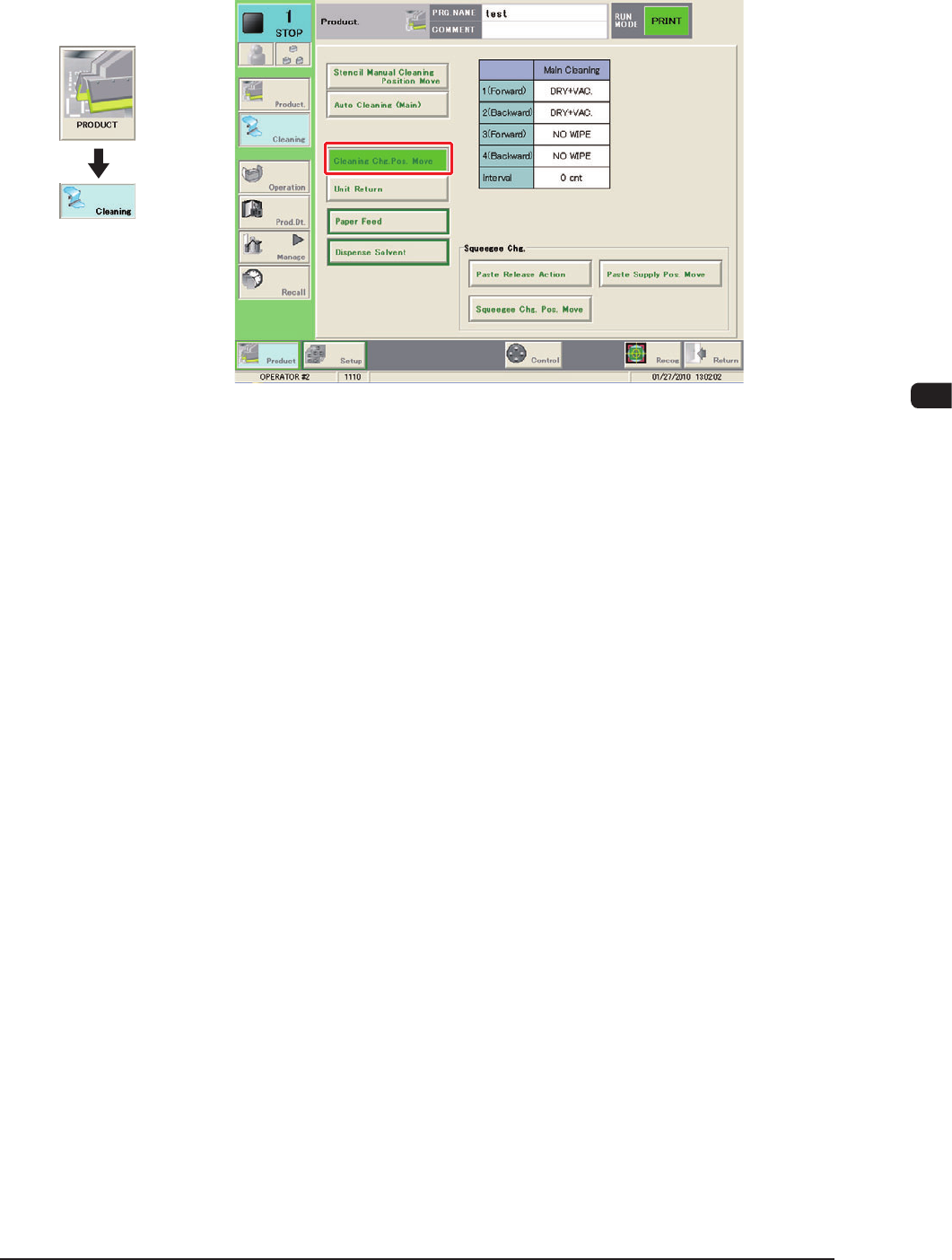

(9) Press the [Cleaning Chg. Pos. Move] button in the "CLEANING" window
F1D11
(10) Press the [START] button in the operation panel.
(The stencil will move to the rear side of the machine.)
(11) Press the cover lock switch.
(12) Open the transparent cover on the rear side.
1002-002
Graphic
Development
1OM-1505
4-14
3. Program Change Operation: Chap.4

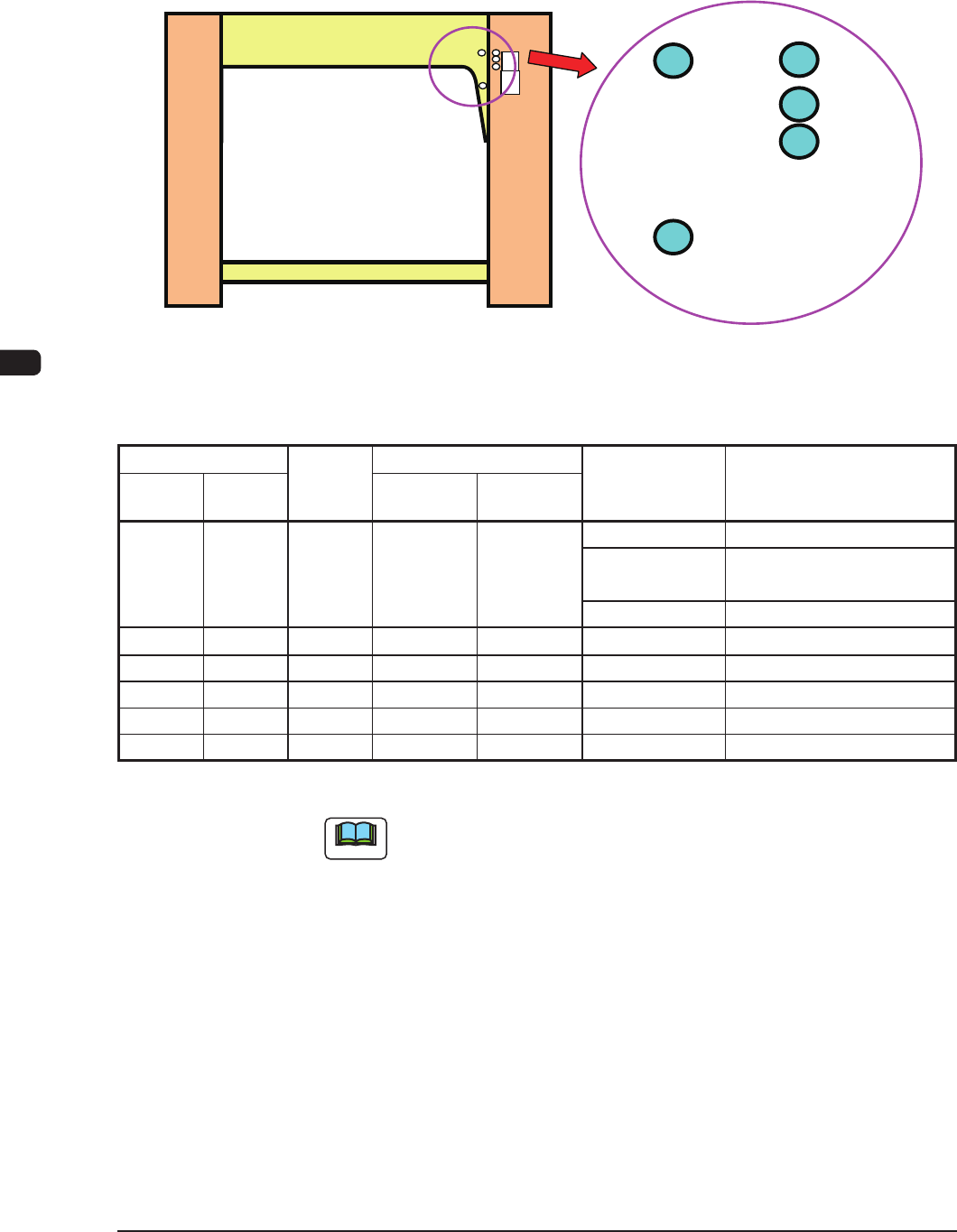

(13) Change the stencil attachment position by means of changing the positions of
the stopper pins as shown in the table "T1D1" according to the stencil size in
the direction Y from the machine rear side, printing reference, PCB transfer
reference and PCB size in direction X.
A
B
C
D
E
F1D12
Stopper Pin Positions and Printable PCB Width Size Range (mm)
Stencil Size
Pin
Position
Max. Printable PCB Size
Printing
Reference
Paste Releasing
Action Constraints
X
direction
Y
direction
X direction Y direction
750 750 A 510 460 Rear Unavailable
Center Unavailable for 430 mm or
more in PCB Direction Y
Front Unavailable for 445 mm
736 736 B 490 381
Rear/Center/Front
None
720 720 C 470 381
Rear/Center/Front
None
750 650 E 510 381
Rear/Center/Front
None
650 750 D 330 381
Rear/Center/Front
None
650 550 E 330 250
Rear/Center/Front
None
Unit : mm
T1D1
Note
In the case of the printing under the condition except for that in T1D1,
contact the Sales Dept. in
Hitachi High-Technologies
or our sales agent.
1002-002
1OM-1505
3. Program Change Operation: Chap.4
4-151002-002
(14) Close the transparent covers and press the cover lock switch.
(15) Press the [Stencil Manual Cleaning Position Move] button in the
"CLEANING" window.
F1D12-1
(16) Press the [START] button on the operation panel.
(The stencil will be moved to the front.)
Graphic
Development
