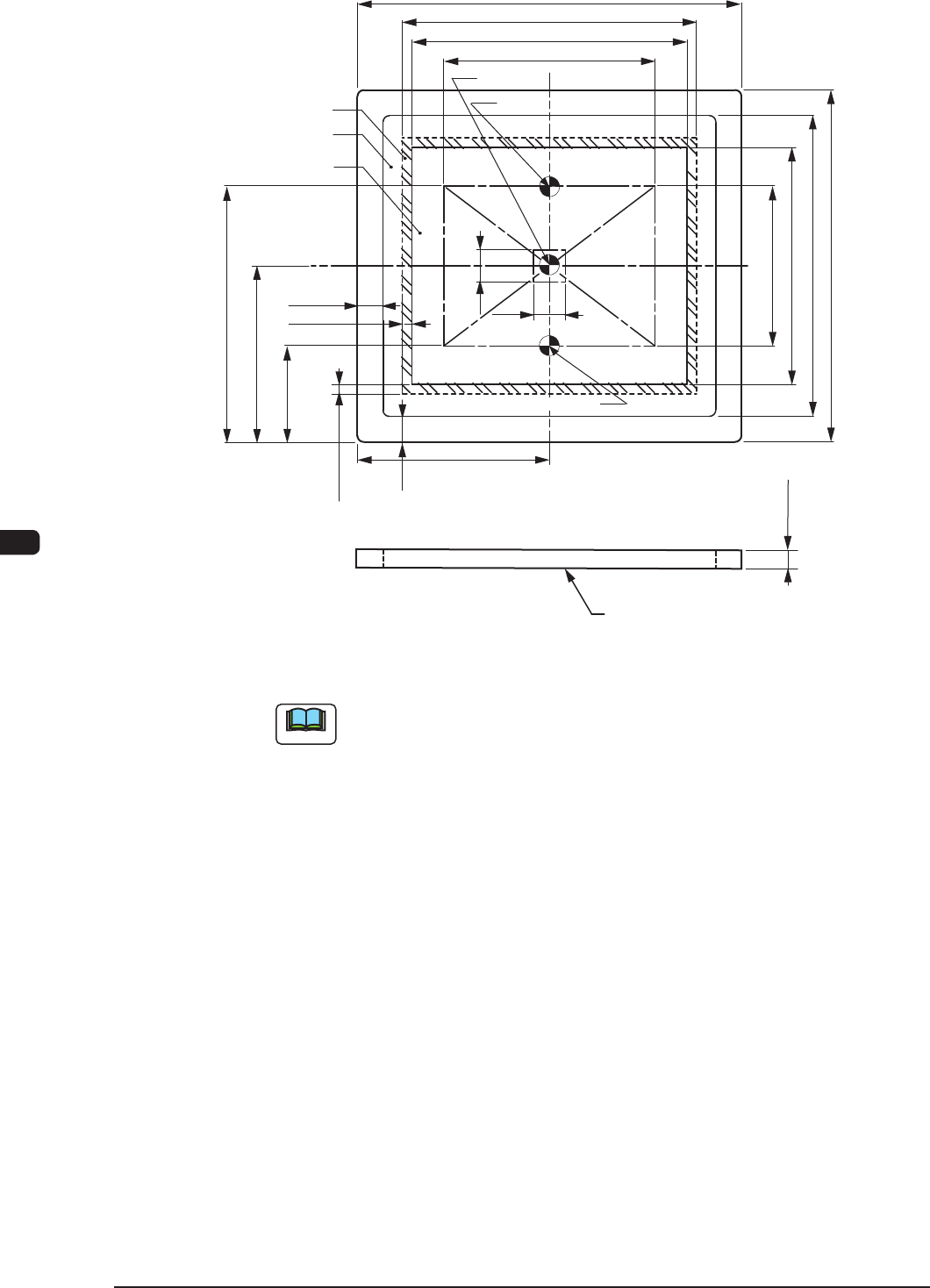

3. Specifications of Printing Stencil Plate Making : Chap.5
5-20
(5) Stencil Frame Size: 650 × 750 mm (Extended Length)
145
057
325 ± 1
650
40
15
04
51
50
50
Stencil Plate Center
Stencil Plate Rear Reference Point
Stencil Plate Front Reference Point
Mesh
Metal
Metal Size 430 or more
Metal Size 571 or more
430 or more
Stencil Side
Max. 381 (PCB Size)
184.5 ± 1
(Based on Frontr Reference Point)
Aluminum
Box Tubing
Max. 330 (PCB Size)
Margin for Paste
(Front Side of Machine)
375 ± 1 (Based on Center Reference Point)
565.5 ± 1 (Based on Rear Reference Point)
30 to 40
Unit: mm
F1E5
Note
(a) The two-dot chain line shows the external shape of the PCB.
(b) If combined with metal, the metal (460
×
571 mm)
should be located as
shown in F1E5
(c) The squeegee length of 350 mm or less should be used.
1103-003
1OM-1505

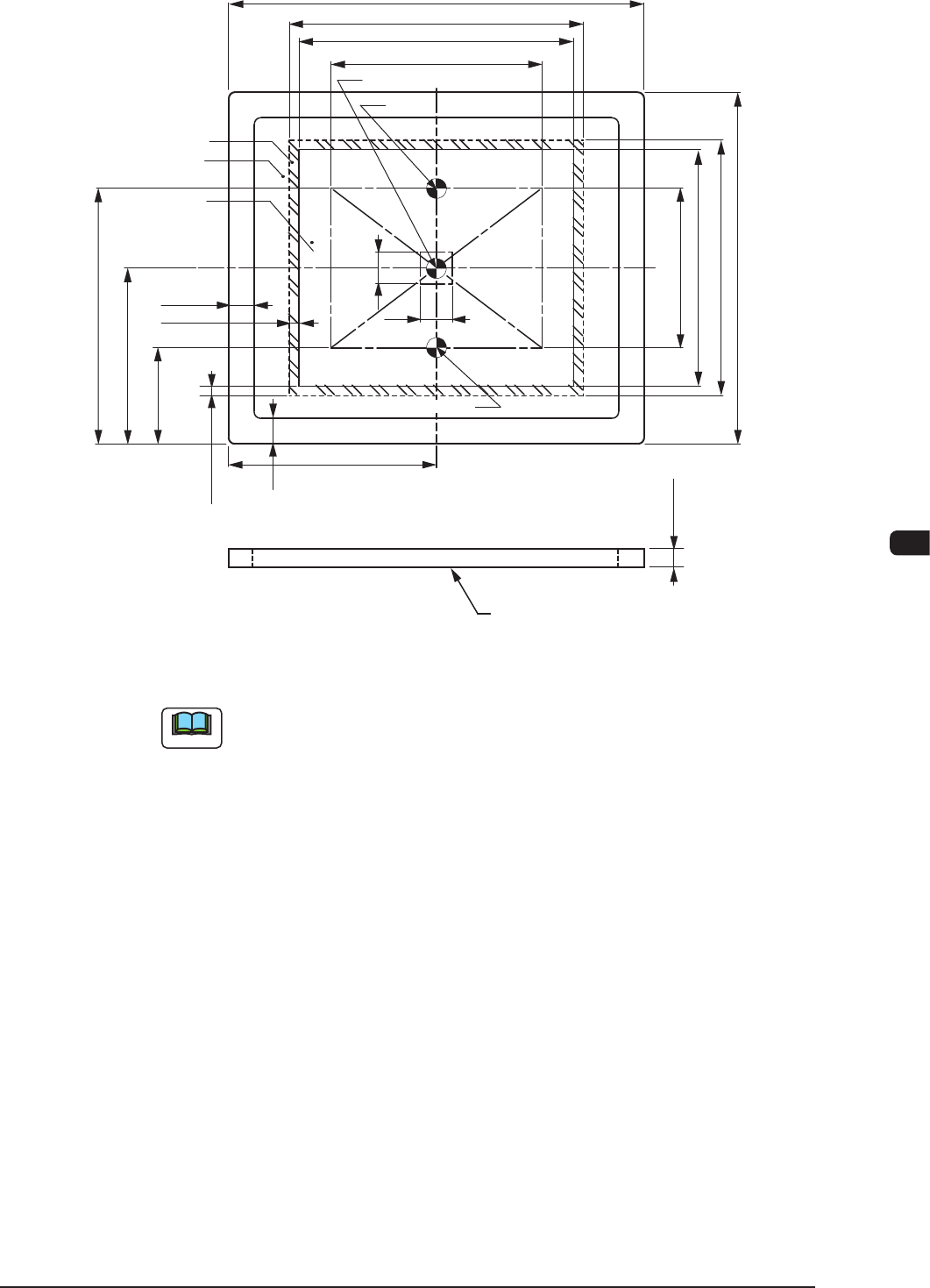

3. Specifications of Printing Stencil Plate Making : Chap.5
5-21
(6) Stencil Frame Size: 650 × 550 mm (Extended Width)
073
055
325 ± 1
650
40
15
04
51
50
50
Stencil Plate Center
Stencil Plate Rear Reference Point
Stencil Plate Front Reference Point
Mesh
Metal
Metal Size 460 or more
Metal Size 400 or more
430 or more
Stencil Side
Max. 250 (PCB Size)
150 ± 1
(Based on Frontr Reference Point)
Aluminum
Box Tubing
Max. 330 (PCB Size)
Margin for Paste
(Front Side of Machine)
275 ± 1 (Based on Center Reference Point)
400 ± 1 (Based on Rear Reference Point)
30 to 40
Unit: mm
F1E6
Note
(a) The two-dot chain line shows the external shape of the PCB.
(b) If combined with metal, the metal (460
×
400 mm)
should be located as
shown in F1E6
(c) The squeegee length of 350 mm or less should be used.
1103-003
1OM-1505
3. Specifications of Printing Stencil Plate Making : Chap.5
5-22
(7) Stencil Frame Size: 600 × 550 mm (Extended Width)
370
550
300 ± 1
600
40
15
04
51
50
50
Stencil Plate Center
Stencil Plate Rear Reference Point
Stencil Plate Front Reference Point
Mesh
Metal
Metal Size 460 or more
Metal Size 470 or more
430 or more
Stencil Side
Max. 250 (PCB Size)
150 ± 1
(Based on Frontr Reference Point)
Aluminum
Box Tubing
Max. 330 (PCB Size)
Margin for Paste
(Front Side of Machine)
275 ± 1 (Based on Center Reference Point)
400 ± 1 (Based on Rear Reference Point)
30 to 40
Unit: mm
F1E7
Note
(a) The two-dot chain line shows the external shape of the PCB.
(b) If combined with metal, the metal (460
×
470 mm)
should be located as
shown in F1E7
(c) The squeegee length of 350 mm or less should be used.
(d) For the option selection in the case of the stencil size "600
×
550 mm",
refer
to the "Stencil to be used".
