1OM-1505 1-6 2. Names and Functions of Each Section : Chap.1 2.4 Cover Section DANGER There are strong motorized and high-voltage areas inside the machine. Special caution should be paid not to touch them. Doing otherwis…
1OM-1505
2. Names and Functions of Each Section : Chap.1
1-50906-001
Short Appendix: Cover Lock Switch
•
Cover Lock Switch
Switch Status Machine Status
LED ON Condition when the operator permits the "cover lock
operation"
•
Transparent Cover Electromagnetic Lock
: Locked
(Transparent Cover
Opening Operation
Unavailable)
LED ON
Switch ON Switch ON
(No Distinction between (No Distinction between
Short and Long Pushes) Short and Long Pushes)
LED OFF
Switch Status Machine Status
LED OFF
Condition when the operation does not permit the "cover
lock operation"
•
Transparent Cover Electromagnetic Lock
: Unlocked
(Transparent Cover
Opening/Closing
Operation Available)
Note
While the LED of the [Cover Lock] switch is "ON", power is supplied to the
main circuit of the beam with the [Cover Lock] switch kept "ON".
1OM-1505
1-6
2. Names and Functions of Each Section : Chap.1
2.4 Cover Section
DANGER
There are strong motorized and high-voltage areas
inside the machine. Special caution should be
paid not to touch them. Doing otherwise will cause
personal injury (serious accident).
•
Only quali
ed maintenance personnel should
detach the covers.
•
The machine should be operated with the covers
being attached.
•
If a cover is detached, be sure to reattach it.
•
Be sure to transparent Covers before operating
the machine.
•
Do no
t disengage the interlock mechanism of the
covers.
The transparent covers and safety doors are provided on the upper section of the
machine and around the base, respectively, so that part of the body, cloth or object
does not touch the moving section in the machine, in order to prevent from the
danger during the automatic operation.

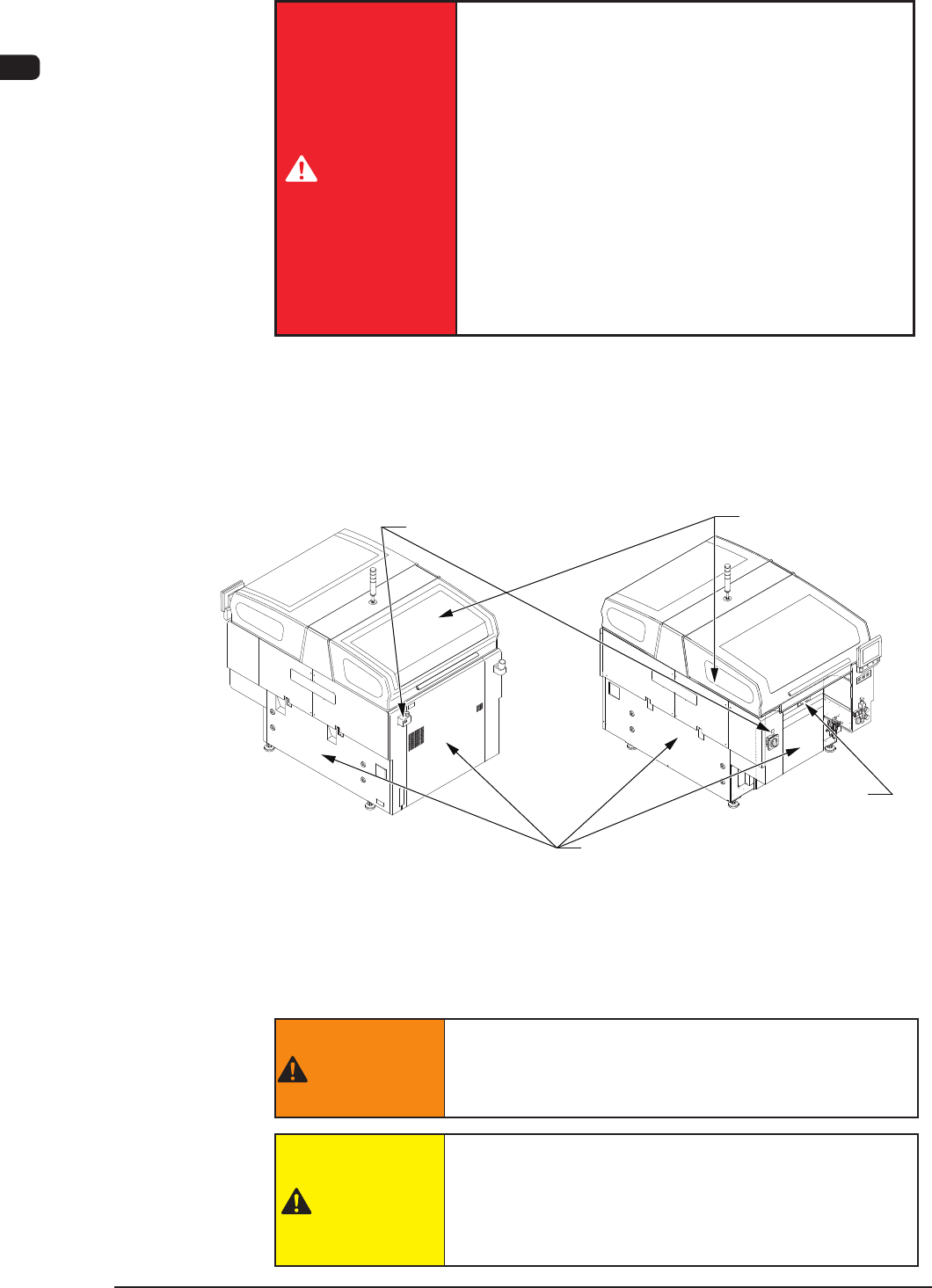

Safety Cover
Maintenance
Shutter
Front Side of MachineRear Side of Machine
Transparent Cover
Cover Lock Switch
F1A5
The cover lock switch is provided for the transparent cover on the upper section
of the machine. When the transparent cover is closed and the switch is turned ON
to illuminate the LED, the electromagnetic lock is activated to disable the opening
of the transparent cover.
WARNING
Be sure to keep the all doors closed to avoid any
danger when the automatic operation is started or
during the automatic operation.
CAUTION
Avoid hand and nger injuries.
•
Your hand or nger might get caught in the transparent
covers and get injured.
•
Hold the handgrip rmly and open or close the cover
(door type) slowly.
1002-002
1OM-1505
2. Names and Functions of Each Section : Chap.1
1-7
2.5 Power Breaker

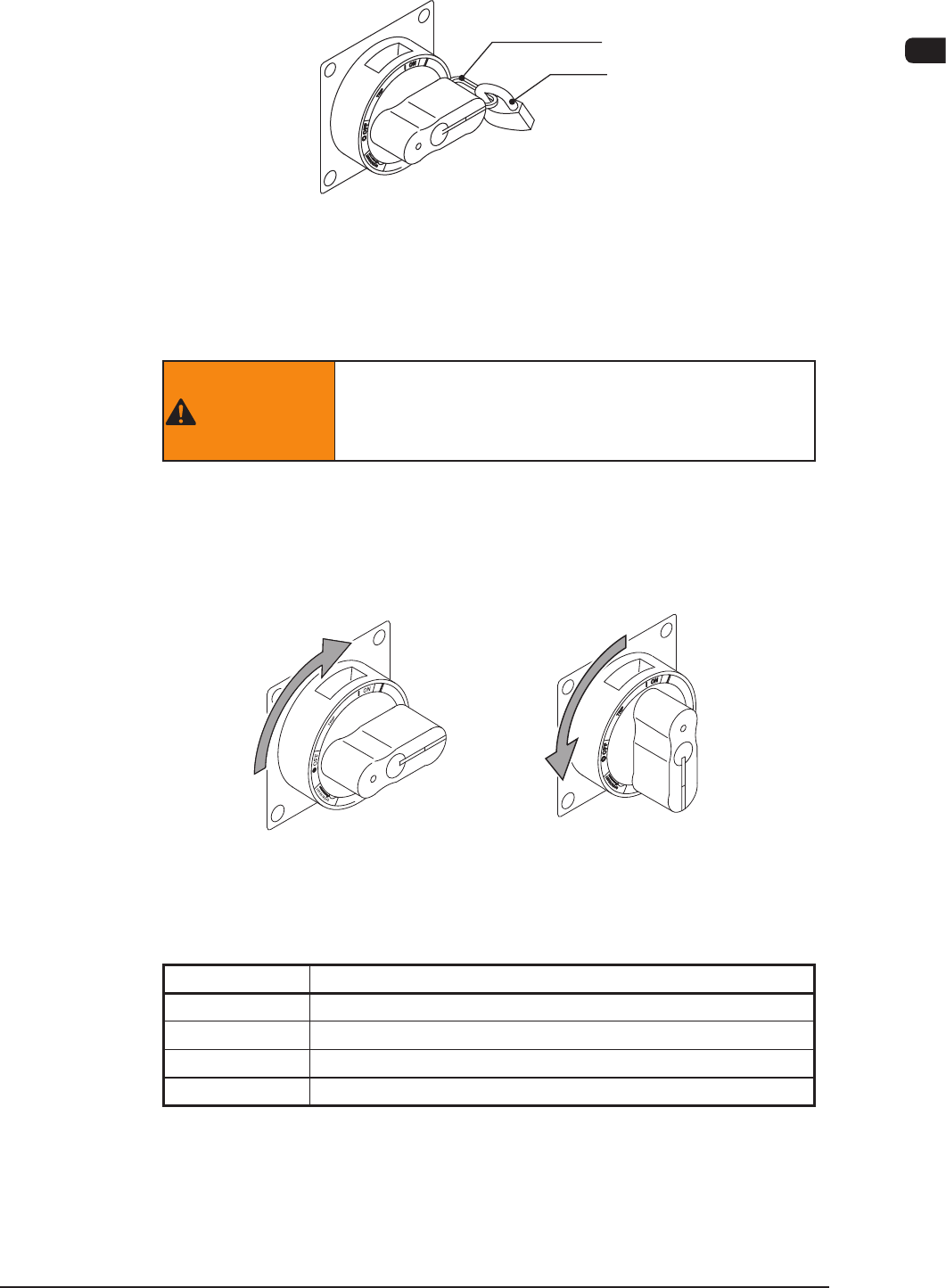

Lock Lever
Padlock
Power Breaker
F1A6
The power breaker is used to supply or shut off the power to the main machine.
The power breaker can be locked with a padlock.
WARNING
Before performing maintenance work, etc., shut off
the power breaker and lock the power breaker with
the padlock.
2.5.1 Operation of Power Breaker
Turn on the power breaker to supply power to the machine.
Turning off the power breaker shuts off the power to the machine.
Power ON Power OFF
Power Breaker
F1A7
Symbol/Name Function
| (ON)
Power ON
TRIPPED
Power OFF due to Overcurrent
○ (OFF)
Power OFF
RESET
Unuse
T1A1
