1OM-1505 3. Mechanism for Screen Printing : Chap.1 1-15 3. Mechanism for Screen Printing 3.1 Location of Related Units The following units are involved in the screen printing operation. Cleaning Section PEC Recognition S…
1OM-1505
1-14
2. Names and Functions of Each Section : Chap.1

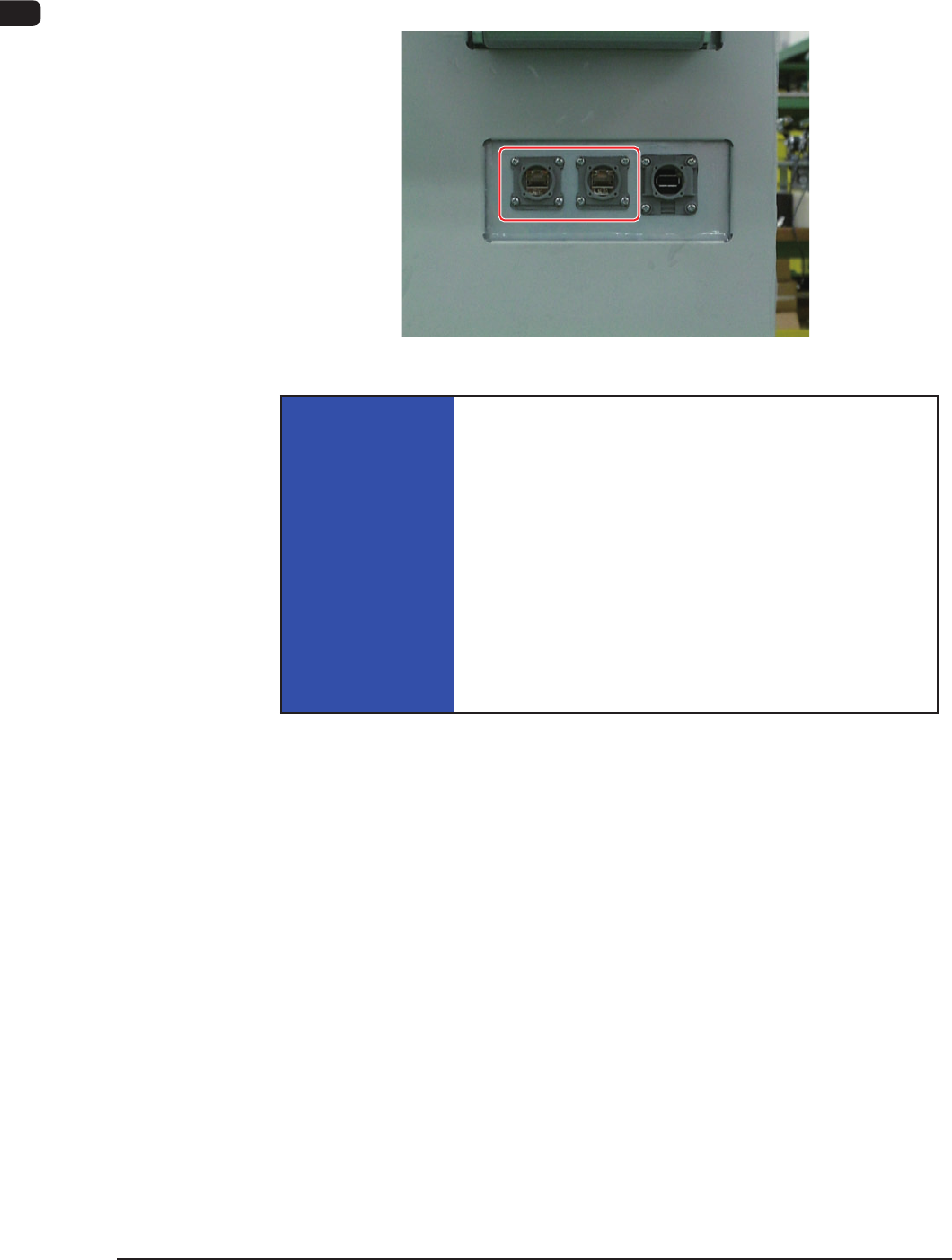

2.9 Ethernet LAN
Data can be exchanged between the network terminal (option) and the machine in
the Ethernet LAN system.
Ethernet LAN F1A14
NOTICE
·
Do not exchange data through Ethernet cabling
(Local Area Network) between the system and
a computer that is not provided with any viral
strategies.
Otherwise, viruses might enter the network, causing the
machine to malfunction.
·
Isolate the system, using Ethernet cabling (Local
Area Network) except for the speci
ed functional
operations.
Otherwise, the machine will break down.
0906-001
1OM-1505
3. Mechanism for Screen Printing : Chap.1
1-15
3. Mechanism for Screen Printing

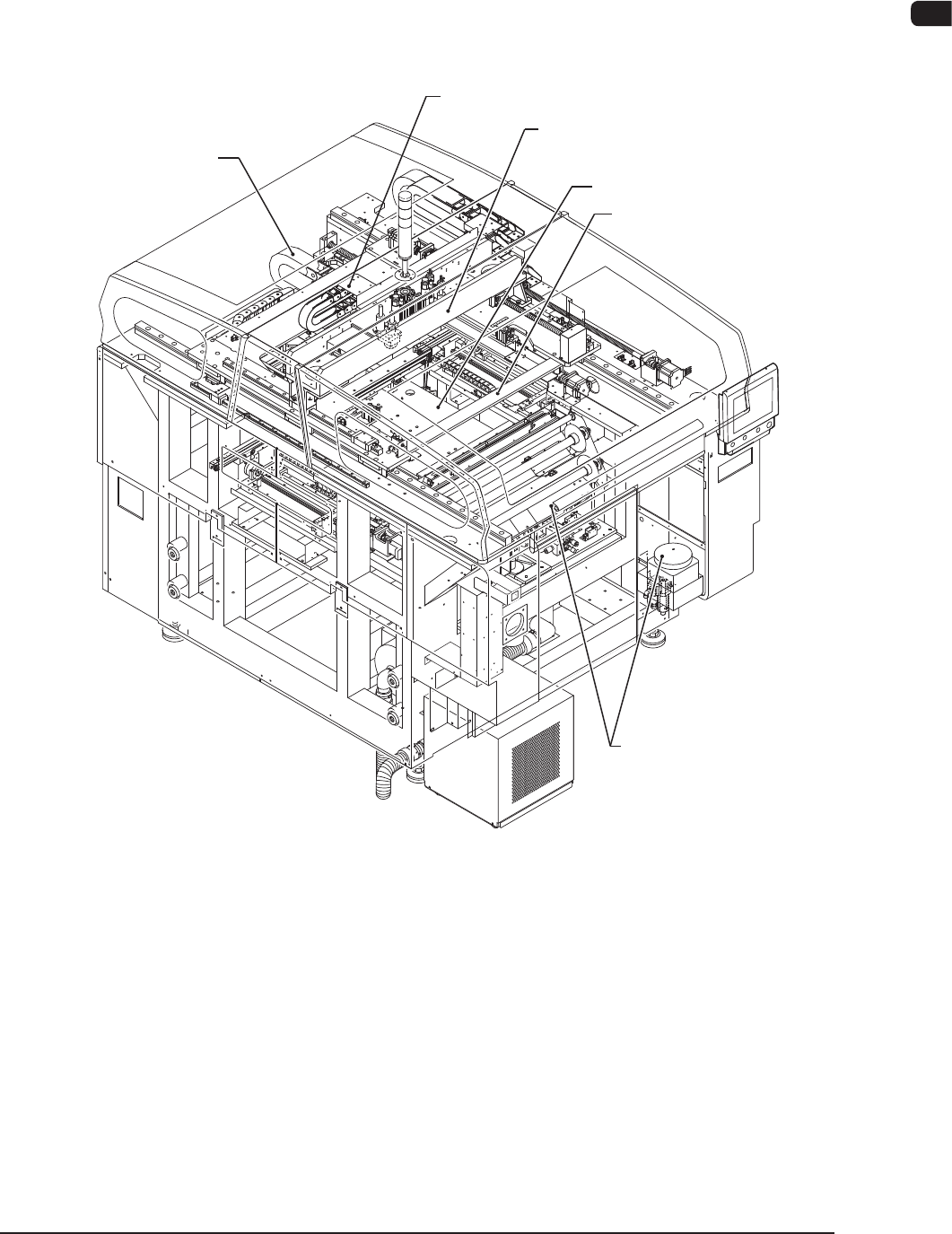

3.1 Location of Related Units
The following units are involved in the screen printing operation.
Cleaning Section
PEC Recognition Section
Squeegee Head Section
Table Section
Stencil Holder Section
Stencil Recognition Section
F1A15
1002-002
1OM-1505
1-16
3. Mechanism for Screen Printing : Chap.1
3.2 PEC Recognition Section
PEC Recognition Camera
F1A16
To correct the position of the PCB, this section is constructed with a PEC
recognition camera, etc.
PEC Recognition
Section
Front Side of Machine F1A17
1002-002
