1. Startup
Con rm that the machine is powered. After the con rmation, hold down the
[POWER ON] button for more than 1 second.
The [POWER ON] button illuminates in red, the system program starts, andthe
machine executes the self-diagnostics program.

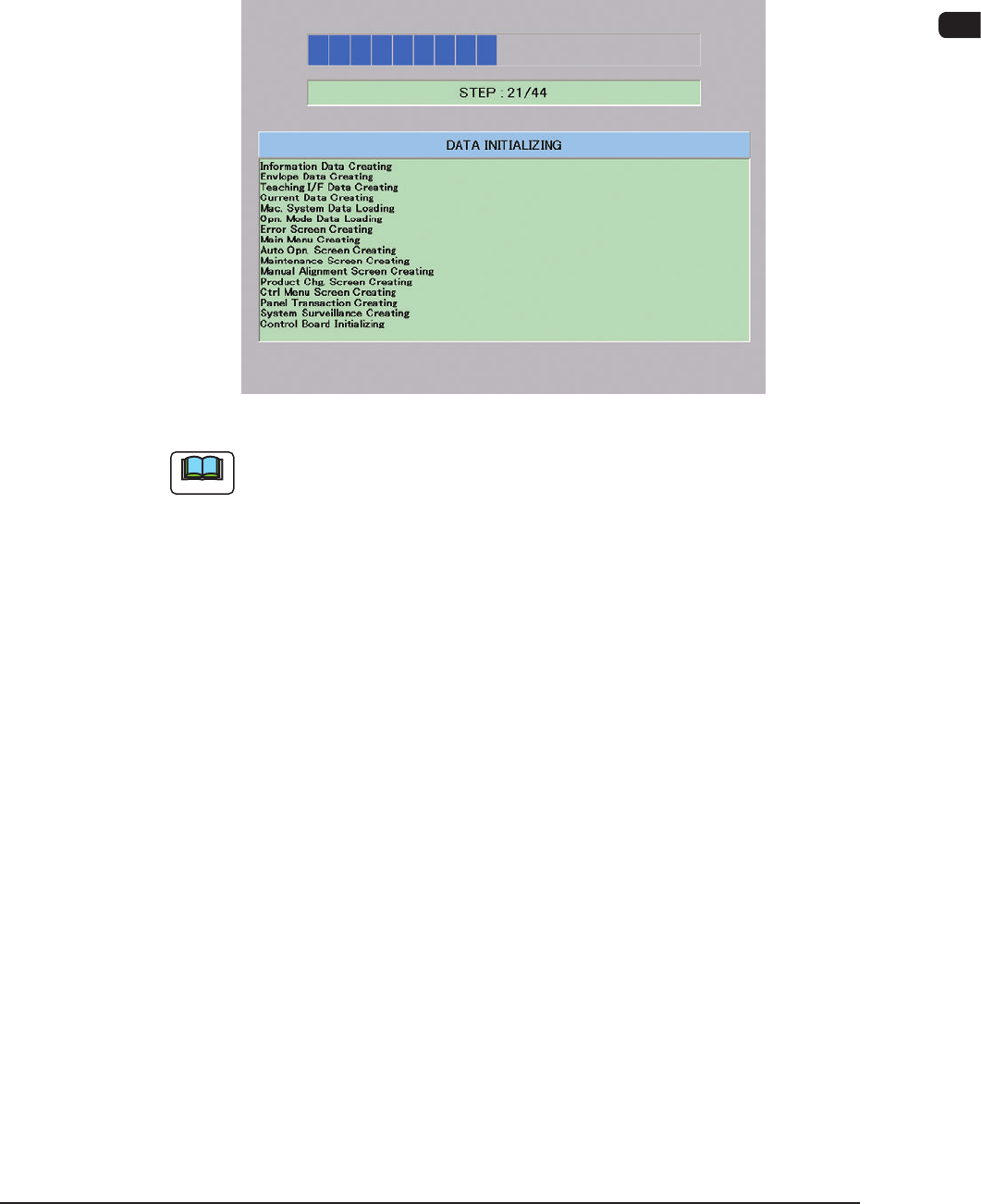

"Self-Diagnostics (Data Initializing)" Window F1B1
Note
It takes about 2 to 3 minutes for the machine to make a self-diagnostics.
Please wait until another window appears.
1OM-1505
2-2
1. Startup : Chap.2
1002-002
1.1 "Top" Window

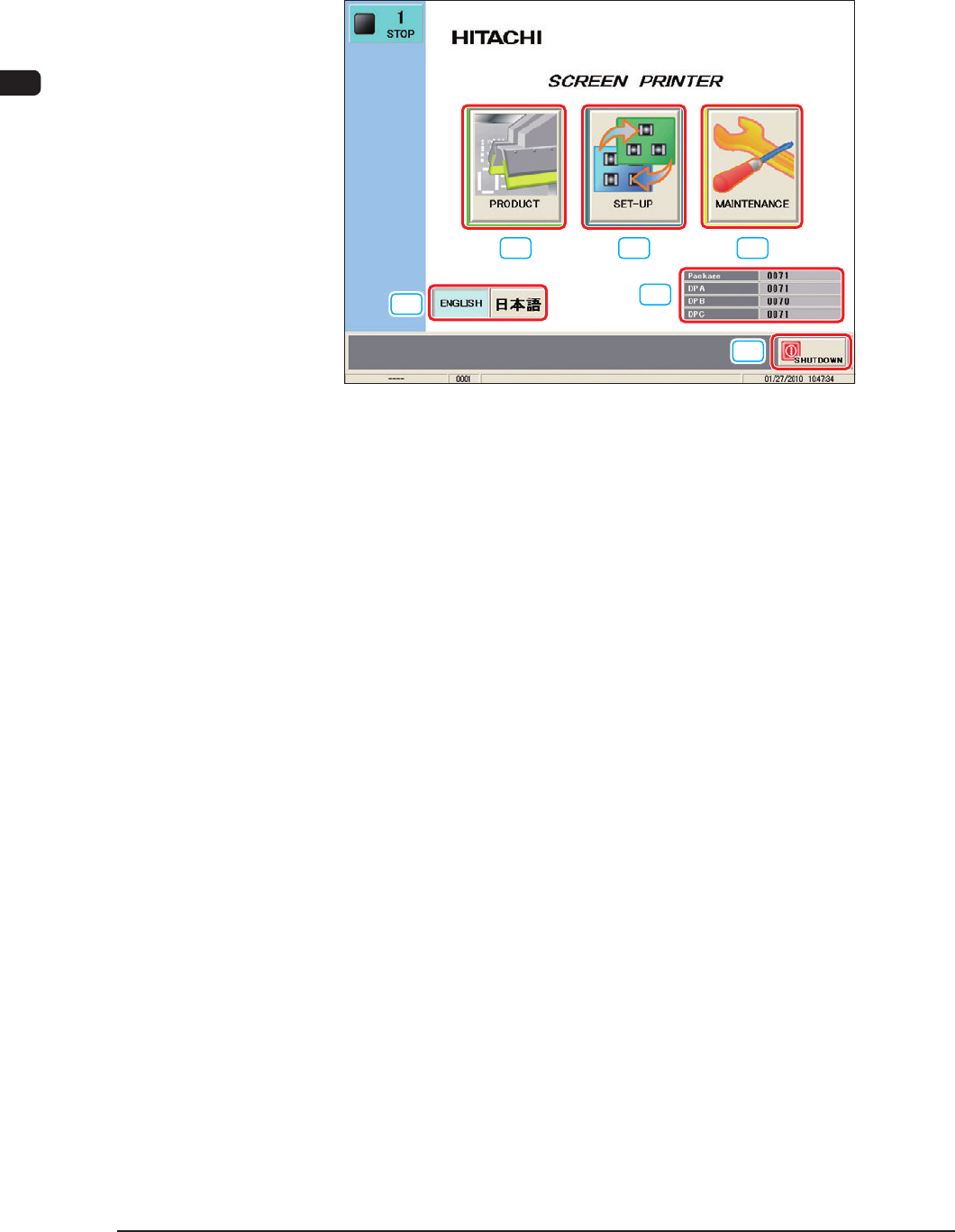

When the self-diagnosis is completed, the [Power ON] button turns yellowish
green and the following window appears on the touch screen.
[1]
[2] [3]
[4]
[5]
[6]
F1B2
[1] [PRODUCT] Button
When this button is pressed, the "PRODUCT" window appears.
[2] [SET-UP] Button
When this button is pressed, the "SET-UP" window appears.
[3] [MAINTENANCE] Butoon
When this button is pressed, the "Select Login User" window appears. When
the login user is selected, "MAINTENANCE" window appears.
[4] [Language Selection] Button
Press the language to which the current language is changed to change the
language to be displayed.
[5] Software V
ersion
In this data box, the software version is indicated.
[6] [SHUT DOWN] Button
When this button is pressed, the power to the machine is shutdown after the
shutdown processing is completed.
1OM-1505
1. Startup : Chap.2
2-31002-002
1.2 Select Login User

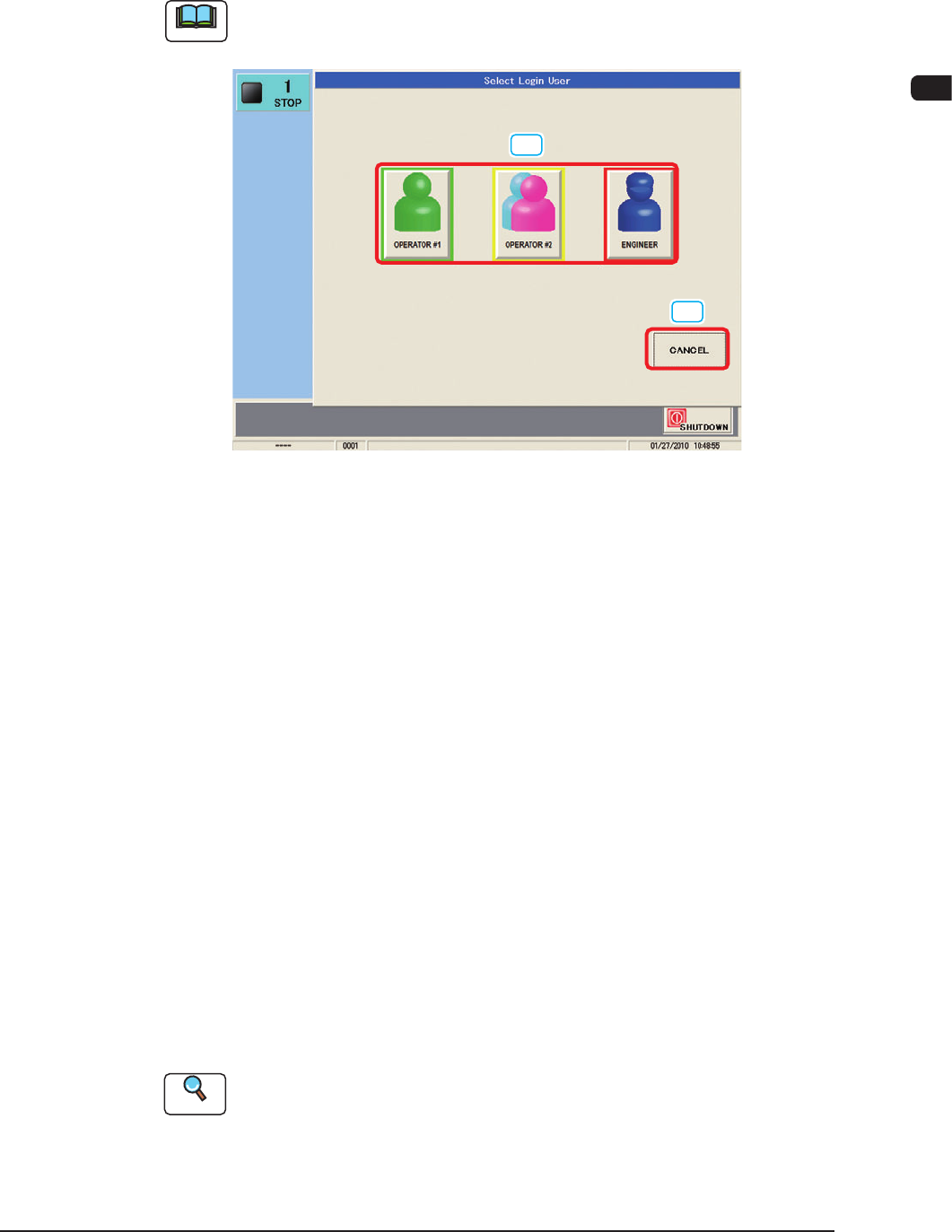

When the [MAINTENANCE] button is pressed in the "TOP" window, the
following window appears.
Note
When the [PRODUCT] button or [SET-UP] button is pressed, the login is
allowed for the operator as "Operator 2".
[1]
[2]
F1B3
[1] Select Login User
The machine is provided with a function with which a password for each
user and available function range can be set, which keeps any unauthorized
user (third party) from operation the machine or prevent various types of data
groups from being deleted by mistake.
[OPERATOR #1] Button
Access can be gained by only the person identi ed as "Operator #1".
For example, the operator is given a permission to edit the data and operate
the machine.
[OPERATOR #2] Button
Access can be gained by only the person identi ed as "Operator #2".
For example, the operator is limited to the operations related to the automatic
operation of the machine.
[ENGNEER] Button
This button is for the manager or supervisor of the machine. The operator is
given a permission to use all functions.
Reference
Refer to "6. Password Setting" in "Chapter 2 (Vol. 3)" for how to set a password
and the range of available functions.
[2] [CANCEL] Button
When this button is pressed, the "Select Login User" is cancelled and the
"Top" window is returned.
