1OM-1505 2-6 2. Operation Window : Chap.2 1002-002 [1] Current Machine Mode The Nos. of the machines that make up the production line and their current machine mode are displayed in real time. RUN : This indicates that t…

1OM-1505

2. Operation Window : Chap.2

2-5

2. Operation Window

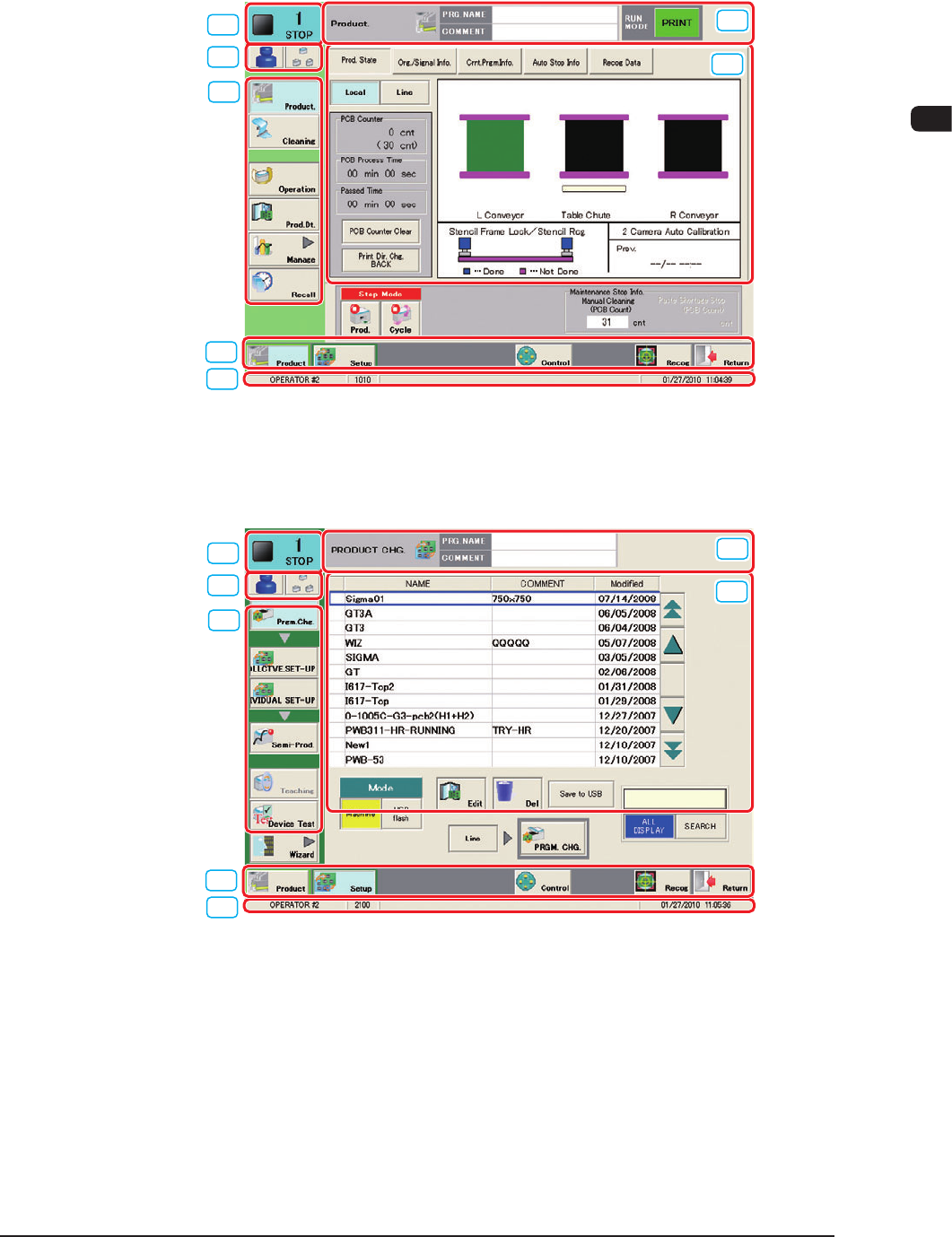

The basic layout of the operation window is as follows.

[1]

[8]

[3]

[7]

[2]

[4]

[5]

F1B5

[1]

[8]

[3]

[6]

[2]

[4]

[5]

F1B5-1

1002-002

1OM-1505

2-6

2. Operation Window : Chap.2

1002-002

[1] Current Machine Mode

The Nos. of the machines that make up the production line and their current

machine mode are displayed in real time.

RUN

: This indicates that the machine is running.

MOVE

: The machine operation, such as zeroing operation, is being

performed.

STOP

: This indicates that the machine is stopped.

WAIT

: This indicates that the machine is in the standby mode.

[2] Mode Indication

Current Operation Mode, Product Name (Pattern Program Name), Operation

Window Hierarchical Position (Host Window) and Name are displayed.

This mode is used to perform the automatic printing operation.

PASS

: This mode is used to perform the "PASS" operation.

TEST

: This mode is used to perform the test run including running-in.

Note

(a) This button is displayed only in the "AUTO OPN" window.

(b) When this button is pressed, the "Test Opn Mode" tab sheet appears

in the "OPN MODE" window in the "AUTO OPN" window. The

operation mode can be changed on this tab sheet.

Reference

Refer to "Volume 2: Chapter 1 5.1 TEST Opn. Mode" for the "Operation

Mode" window.

[3] [Login User] Button

The current login user is indicated using an icon.

When the [Login User] button is pressed, the "Login User Selection" window

appears and the login user change is available.

Reference

Refer to "1.2 Login User Selection" for the login user change.

[Line] Button

Using this button, the connection to the machine in the line is executed.

Each pressing the [Line] button connects or disconnects the machine in the

line alternatively.

: This shows that the machine in the line is connected.

: This shows that the machine in the line is disconnected.

[4] Main Menu Bar

The main menu buttons are arranged on the menu bar.

When any of the buttons is pressed, the corresponding menu operation

window appears.

Reference

Refer to "2. Automatic Operation" in Chapter 1, Volume 2, for the details

of the main menu bar.

1OM-1505

2. Operation Window : Chap.2

2-71002-002

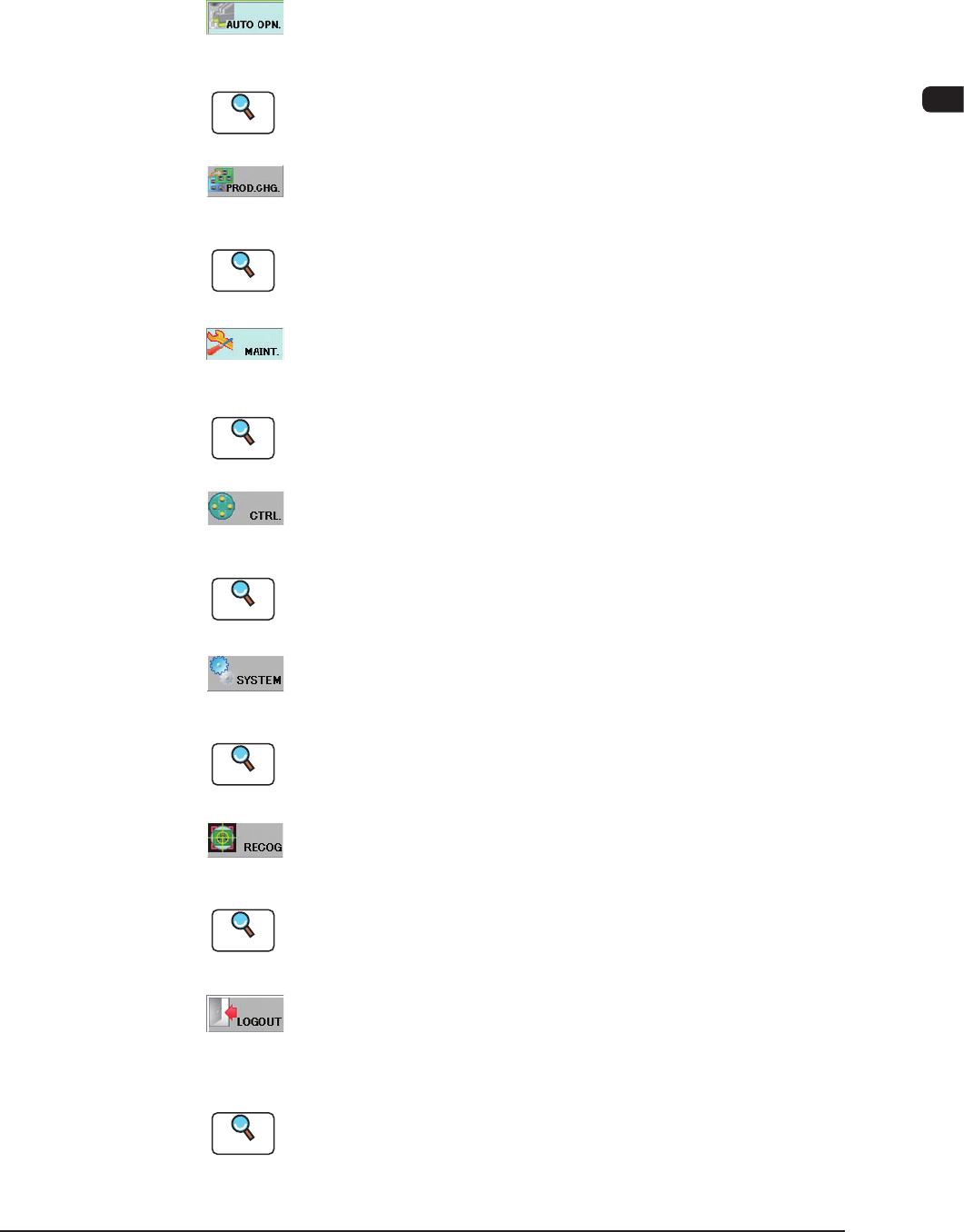

[5] Common Menu Bar

The common menu buttons are arranged on the bottom of the touch screen.

When each of the common menu buttons is pressed, the corresponding

operation window appears.

[AUTO OPN.] Button

Pressing this button opens the "AUTO OPN" window.

Reference

Refer to "Volume 2: Chapter 1 Automatic Operation" for the "Automatic

Operation" window.

[PROD.CHG.] Button

Pressing this button opens the "PRODUCT CHG." window.

Reference

Refer to "Volume 2: Chapter 3 PROG.CHG." for the "PROG.CHG."

window.

[MAINT.] Button

Pressing this button opens the "MAINT" window.

Reference

Refer to "Volume 3: Chapter 1 MAINTENANCE" for the "MAINT."

window.

[CTRL.] Button

Pressing this button opens the "CTRL MENU" window.

Reference

Refer to "2.4 Control Menu" for the "

CTRL MENU

" window.

[SYSTEM] Button

Pressing this button opens the "SYSTEM" window.

Reference

Refer to "Volume 3: Chapter 2 SYSTEM" for the "SYSTEM window.

[RECOG.] Button

When this button is pressed, the recognition image window is displayed.

Reference

Refer to "2.5 RECOG" for the "Recognition" window.

[LOGOUT] Button

When this button is pressed, the operation window is closed and the "Top"

window is returned.

Reference

Refer to "4.1 LOGOUT" for the "LOGOUT" window.
