SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) 01/01 Issue 2.7 Installing the Retrofit Kit 71 0RXQWLQJWKH1HZ 'XVW&RY HUD QG&ODPSLQJ6K HHW0H WDO RQ…
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.7 Installing the Retrofit Kit 01/01 Issue
70
.H\
1. 2 socket hex head cap screws M6
2. 1 socket hex head cap screw M6 on support link

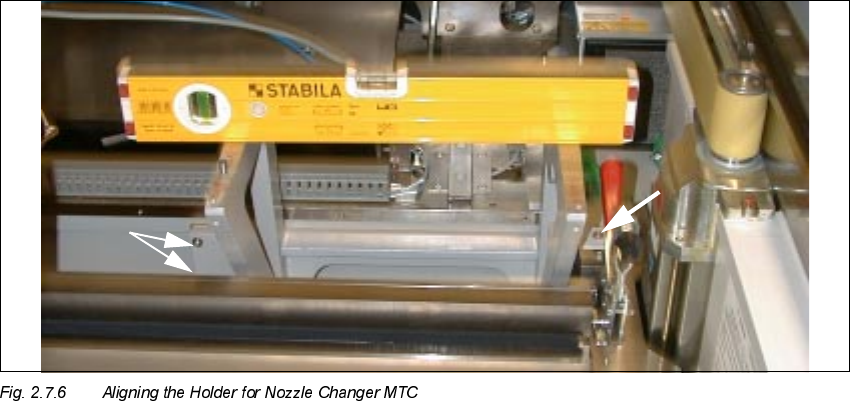

Å Place the spirit level on the contact surface of the carrier for the nozzle changer MTC, as shown
above.
Å If necessary, loosen the fastening screws again and use the spirit level to align the holder for
nozzle changer MTC:
With the holder in this position, first tighten the 2 screws (see Fig. 2.7.6 -> Pos. 1) and then the
screw for Pos. 2.
SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option)
01/01 Issue 2.7 Installing the Retrofit Kit
71
0RXQWLQJWKH1HZ 'XVW&RYHUD QG&ODPSLQJ6K HHW0H WDORQ/+DQG5+
.H\
1. New dust cover, Item no. 00356051-01 (complete, incl. clamping sheet metals)
2. Screws to fasten the dust cover (long metal part): 4 socket hex head cap screws M3
3. "Clamping sheet metal, right": Fastened with 2 socket hex head cap screws M3.
Mount the "Clamping sheet metal, left" on the RH side in a corresponding manner (not shown).
Å Use the new dust cover from the retrofit kit (Item no. 00356051-01) with 2 long slots for immers-
ing the nozzle changer holder and mount it as follows:
Å First remove the RH clamping sheet metal (shown from the installation position: see Fig.
2.7.7) from the new dust cover (2 socket hex head cap screws M3).
Å From the outside and bottom, insert the long part of the new dust cover in such a manner
that the vertical tubes of the nozzle changer holder dip into the slots (see Fig. 2.7.7 -> 1).
Å Fasten the LH clamping sheet metal to the machine frame with the 2 socket hex head cap
screws M3.
Å Fasten the side wall of the dust cover to the machine frame with the 4 socket hex head cap
screws M4 (see Fig. 2.7.3 -> 2).
Å Insert the RH clamping sheet metal (see Fig. 2.7.7 -> 3) from above. Use a magnetic Allen
wrench, size 2.5, to insert the two M3 screws. Tighten the (half rounded head) screws.
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.7 Installing the Retrofit Kit 01/01 Issue
72
,QVWD OOLQJ1HZ1R]]OH&KDQJHU07&DQG6KRUW1HZ(PSW\7DSH'XF W
.H\
1. New nozzle changer MTC for 6-segment revolver head
2. Screws to fasten the nozzle changer: 5 socket hex head cap screws M5
3. Electrical and pneumatic connection of the nozzle changer MTC
(on the bottom of the nozzle changer)
