SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) 01/01 Issue 2.8 Installing t he MTC 93 Å T o measur e / calibra te the n ew nozzl e changer , select the ICON " Nozzle cha …
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.8 Installing the MTC 01/01 Issue
92
Å Select "Nozzle changer, head functions -> "Change configuration".
The following screen will appear:
NOTE:
- 9 -series magazines must be defined with 9-series nozzle type (e.g., type 920),
- 8-series magazines with an 8-series nozzle type (e.g., type 820).
Å For each magazine, select the SPECIFIED nozzle (e.g., type 920 / 820) that was previously
defined on the head -> Select "Accept" (button) to accept this nozzle as the ACTUAL nozzle.
Å For each magazine, set the "Filling level" (button) to "0" -> Select "Accept" (button) -> Check
the filling levels.
SIPLACE 80 S-25 HM 2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option)
01/01 Issue 2.8 Installing the MTC
93

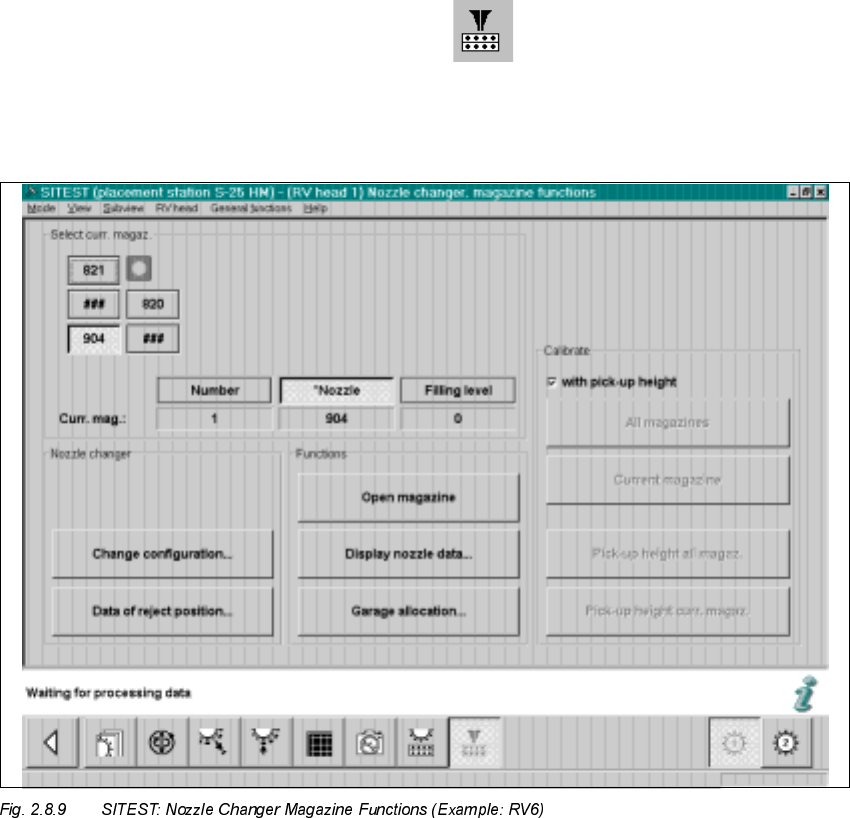

Å To measure / calibrate the new nozzle changer, select
the ICON "Nozzle changer magazine functions" .

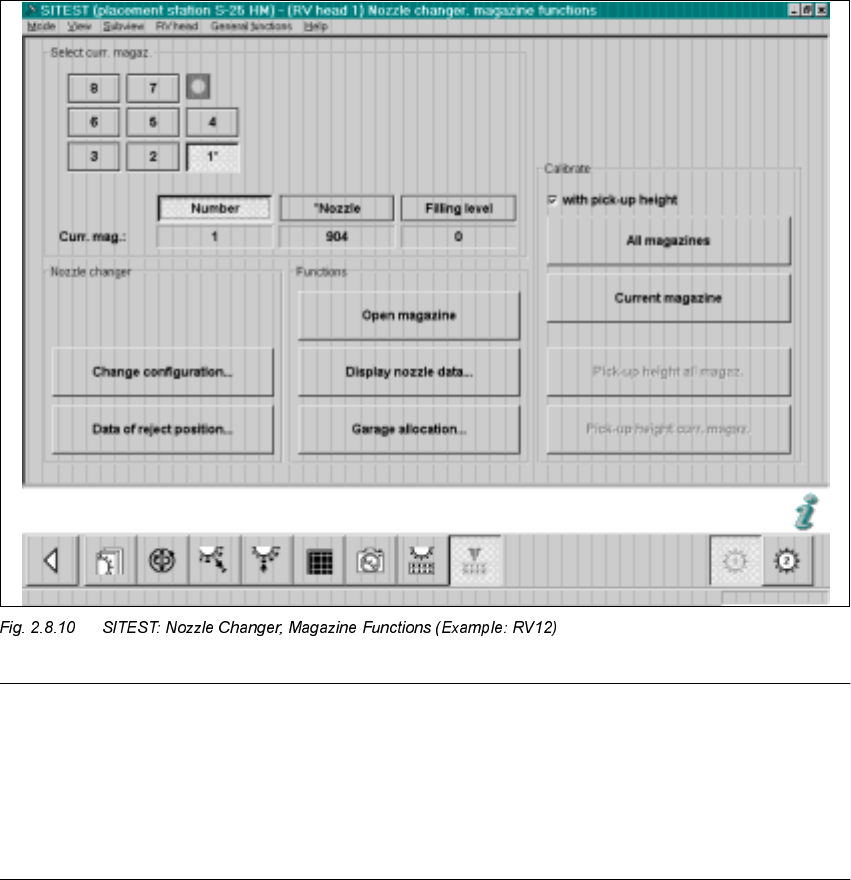

Depending on which revolver head is configured for this gantry, the screen for the relevant noz-
zle changer MTC, Fig. 2.8.9 or Fig. 2.8.10 is displayed:
2 Retrofitting Instructions: Matrix Tray Changer MTC on S-25 HM (Option) SIPLACE 80 S-25 HM
2.8 Installing the MTC 01/01 Issue
94
NOTE:
In the case of the RV12 nozzle changer the procedure is slightly more time-consuming than for
the RV6 nozzle changer: While the 6-series nozzle changer MTC must be configured complete
with nozzles, none of the magazines are configured with nozzles in the case of the RV12-nozzle
changer. It is only necessary to insert a random 9-series nozzle on the 12-segment revolver head.
Thereafter calibration is simply performed.
Å Calibrating the 12-series nozzle changers:
Å Magazines: Define no nozzles = all boxes under "nozzle" at the operator interface
with " --".
Note: In contrast to the representation earlier, the counting method for the magazines is
from right to LEFT.
Å Calibration of the RV6-nozzle changer:
Å If necessary, check the magazine configuration with nozzles and the filling level "0" (but-
tons) again .
