Part Registration
<Gap1 Start> column
Set the first empty lead in the lead group.
There are no leads after the lead on the starting number.
<Gap1 Miss> column
Set the first empty lead in the lead group.
As many leads as the number of miss are missing.
<Gap2 Start> column
Set the second empty lead in the lead group.
There are no leads after the lead on the starting number.
<Gap2 Miss> column
Set the second empty lead in the lead group.
As many leads as the number of miss are missing.
<Gap3 Start> column
Set the third empty lead in the lead group.
Set the third empty lead in the lead group.
<Gap3 Miss> column
Set the third empty lead in the lead group.
As many leads as the number of miss are missing.
<Gap4 Start> column
Set the fourth empty lead in the lead group.
There are no leads after the lead on the starting number.
<Gap4 Miss> column
Set the fourth empty lead in the lead group.
As many leads as the number of miss are missing.
7-74
Advanced Chip Shooter DECAN S2 Administrator’s Guide
7.1.4.3. Placing HDMI Connector
When placing the HDMI Connector, register the part data and teach the placement point of
the corresponding part. It cannot be used for the equipment without the fix camera.
Part Data Registration
Move the head that picked up the part to the center of the fix camera using the
teaching box as shown in the following figure.
Move the gantry so that the pin position into which the part is inserted can be
placed on the cross hair of the SMVision window. Set the accurately taught
position to the center of the part.
1: Part Center
Click the <Lead Parameter & Group> button and change the Rad and Tan values
of the lead center among the lead parameters. At this time, perform adjustment so
that the lead end does not get placed on the horizontal line in parallel to the bright
area of the part.
7-75
Part Registration

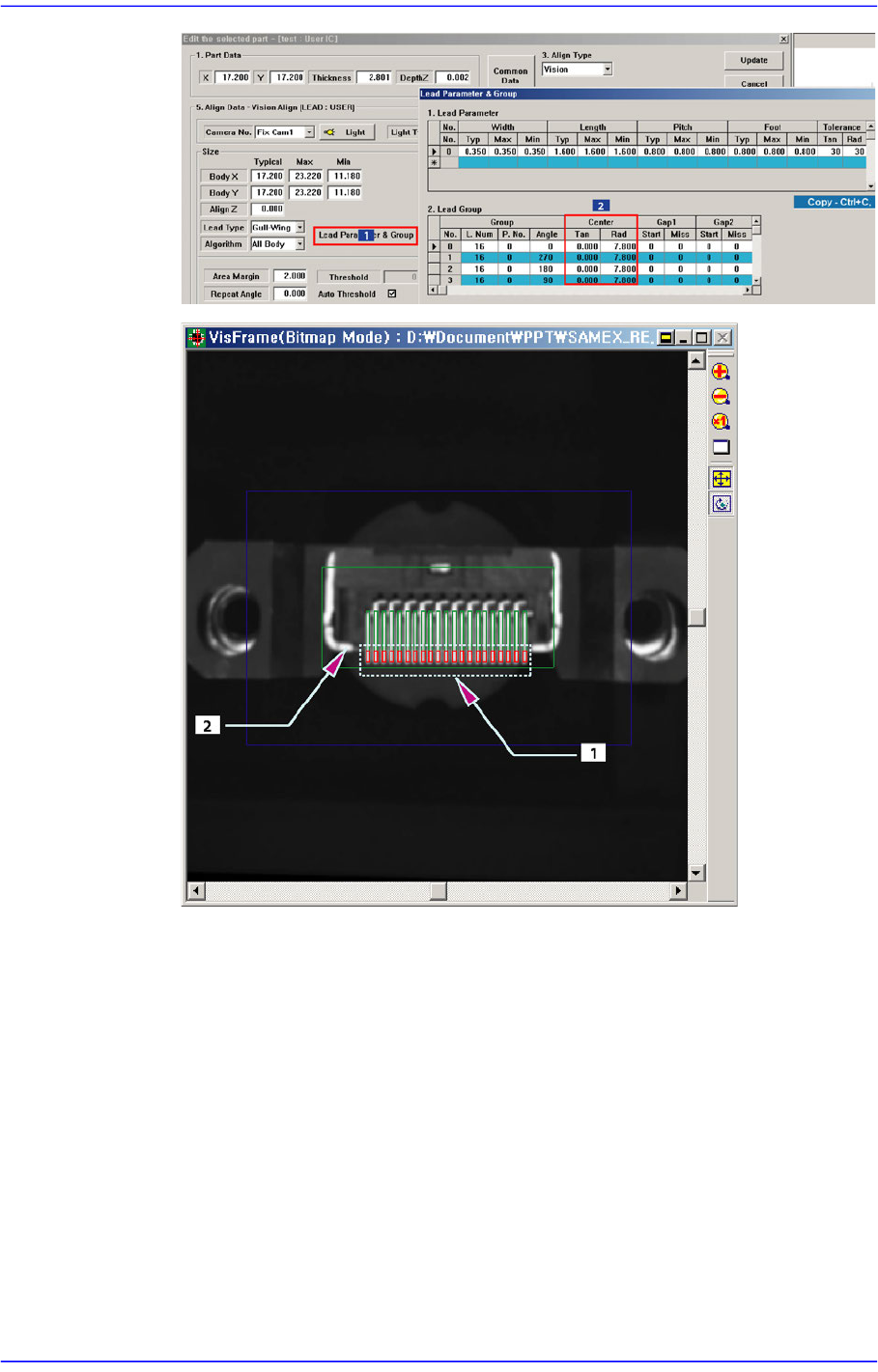

1: Lead End
2: Bright Area
