Preface
xi
The placement Speed
The following data concerns the speed of placement for each part. The actual cycle time
can vary depending on the size of PCB, frequency of the nozzle replacement, etc.
The pick and place cycle time
Tablei.2The pick and place speed
Memo In actual placement, the conditions that determine the cycle time may
vary depending on many factors such as the type of components, size
of PCB, placement position, etc. For more detailed information,
please contact our business department or the local agent.
FS Head
Upward vision
MEGA FOV 45
mm (Rear)
IC, Connector
Less than □32 mm
Greater than Lead Pitch :
0.4 mm
Less than □42 mm
Greater than Lead Pitch :
0.5 mm
BGA, CSP
Less than □16 mm
Greater than Ball Pitch : 0.4
mm
Less than □32 mm
Greater than Ball Pitch : 0.5
mm
Less than □42 mm
Greater than Ball Pitch : 1.0
mm
Maximum Height
Flying vision 10 mm
Upward vision 15 mm
Classifi
cation
Speed Remarks
Chip
92,000 CPH (1608)
Simultaneous Pickup Standard Fly Vision
Advanced Chip Shooter DECAN S2 Administrator’s Guide
xii

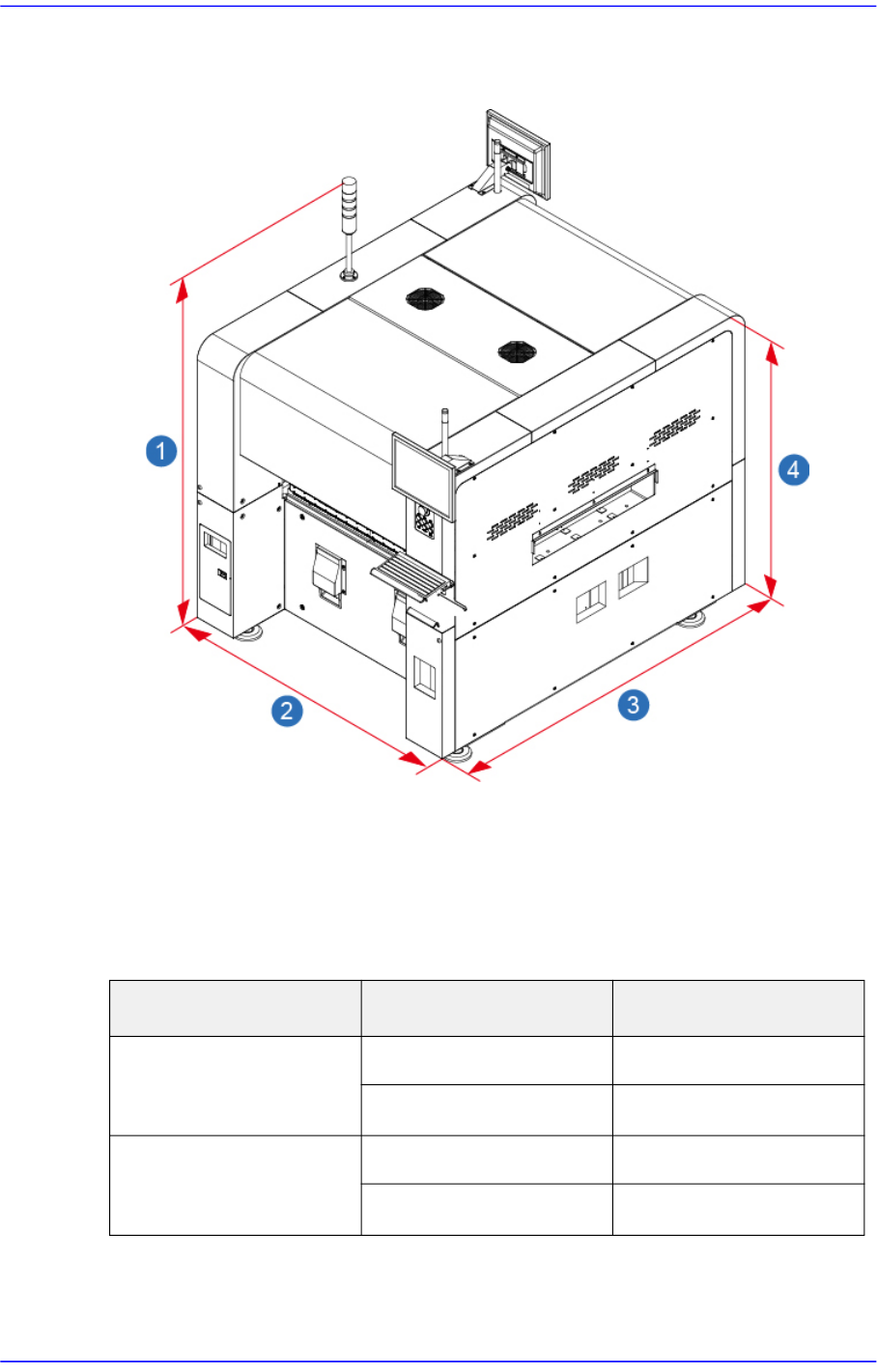

Size and mass of the machine
Height (Under the condition that the height of the PCB upper surface is 900 mm)
1: Up to the upper surface of signal light (1,995 mm)
2: Length (1,430 mm)
3: Width (1,740 mm Including front / rear cover)
4: Up to the upper surface of cover (1,485mm)
Mass (The mass which does not include the Docking Cart and Feeder.)
Type Mass (kg) Height of Conveyor
DECAN S2
(Standard)
1,800 900mm
1,860
950mm
DECAN S2
(Docking Option)
1,770 900mm
1,830
950mm
Preface
xiii
About Warranty
The warranty is issued to cover the following machine faults and malfunctions.
The warranty terms and conditions agreed to at the purchase of the product precedes
the general terms above.
What is covered by
the warranty
Hanwha Precision Machinery Co., LTD. provides free warranty
services within the warranty period if the product fails to operate
properly under normal operating conditions due to defective materials
or problems originating from the manufacturing process.
Time period of the
warranty
The term of this warranty shall expire for any of the following cases.
Warranty expires 24 months after shipment or 24 months after
installation.
However, if there is more than one term of expiration of the warranty
period, the terms that come later will be applied.
What is not
covered by the
warranty
Product warranty does not cover the following cases.
If the stored data is lost due to damage to the HDD or SSD
(regular backup is recommended.)
When data is damaged due to system malfunction or virus
infection due to the execution of a program not related to the
operation of the product
Natural changes over time or natural wear from the use of the
product (discoloration of paints or coats, wears on consumable
parts, etc.)
Sensory conditions that do not affect the quality and functions of
the product (operating noise from the controller or motor, etc.)
Defects due to ambient conditions (moisture, impurities, dust on
the machine, oil mist, etc.).
Malfunctions caused by misuse
Natural disasters such as earthquakes, storms, flooding, lightning,
accidents, or fire
Unauthorized modification of the product
Failure to back up the data stored in the machine.
When using non-genuine parts or accessories
Lack of proper repairs or maintenance work(Includes the use of
non-specified lubricants)
Adjustment of the product by unauthorized parties
