13-9 Production Setu p Set the options related to placement. <ANC before PCB load> check bo x Selected so that the PCB stands by after replacing the nozzle before the PCB is fed. <Prefetch Parts> check bo…
13-8
Advanced Chip Shooter DECAN S2 Administrator’s Guide

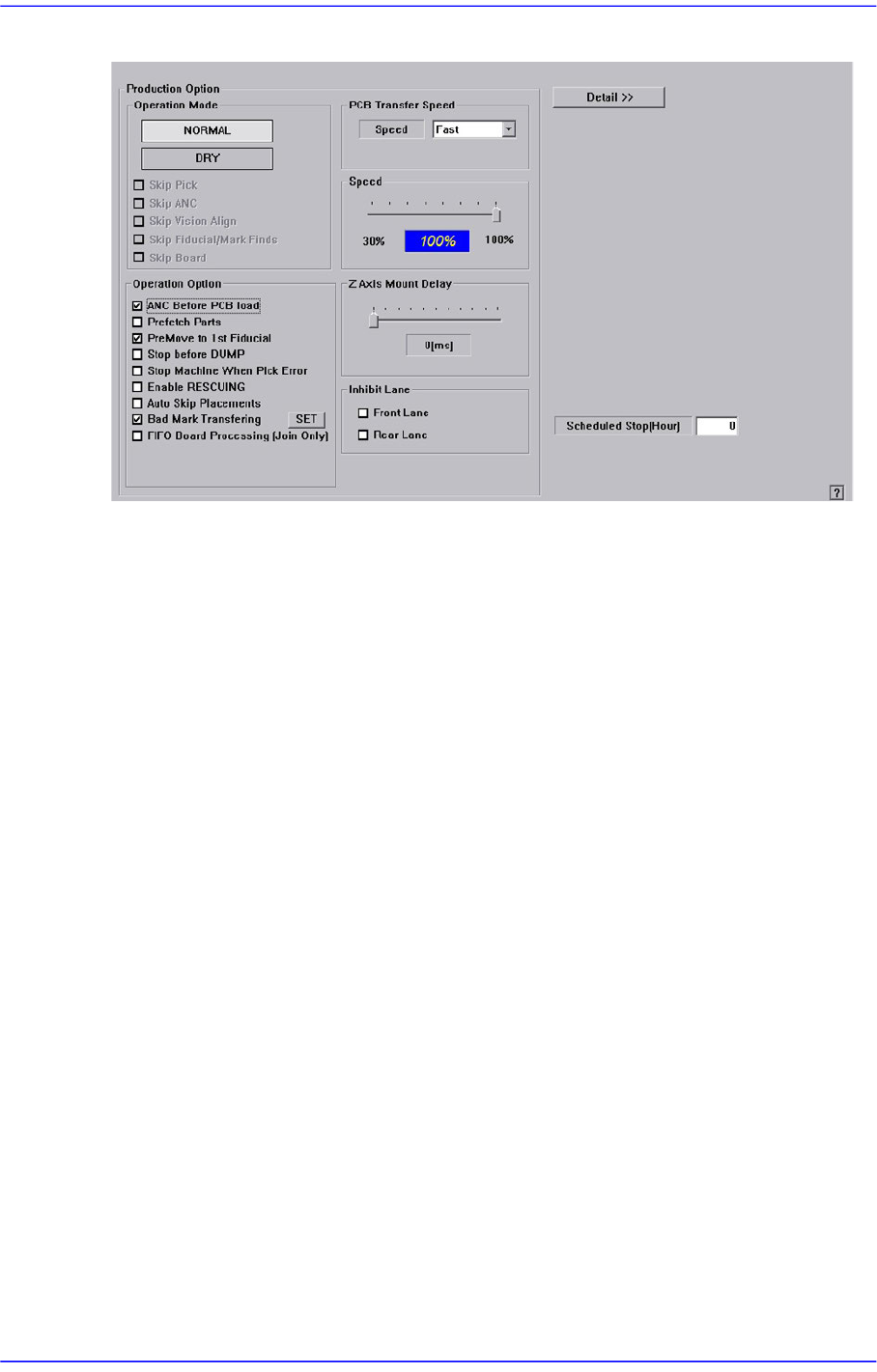

Figure13.4 “Option Setting” tab dialog
<Operation Mode> group
Set the operation mode. Available modes are as follows.
Normal Mode
Operates normally.
Dry Mode
Without picking up or placing the actual parts, perform the work by selecting the
virtual conditions as shown below. This menu, which is authorized for the service
user, cannot be used unless login is not performed.
<Skip Pick> check box
Perform the work without picking the parts. Finish the work once all work
steps are completed.
<Skip Pick> check box
Perform placement without changing a nozzle.
<Skip Vision Align> check box
Perform the work without vision recognition of the parts. Finish the work once
all work steps are completed..
<Skip Fiducial/Mark Finds> check box
Perform the work without recognizing the fiducial mark on the PCB. Finish
the work once all work steps are completed.
<Skip Board> check box
Perform the work without feeding the PCB into the working area on the
conveyor.
<Operation Option> group
13-9
Production Setup
Set the options related to placement.
<ANC before PCB load> check box
Selected so that the PCB stands by after replacing the nozzle before the PCB is
fed.
<Prefetch Parts> check box
In the case of the equipment with dual gantries, when the corresponding gantry
cannot work continuously due the shortage of parts in the feeder that has supplied
parts to any one of the gantries, it selects the function to improve the productivity
temporarily with another gantry performing the work instead.
For this function the <Auto Skip Placements> check box shall be selected in the
<Operation Option> group. This function can be used in the SM411 model.
<PreMove to 1st Fiducial> check box
While the PCB is being put into the working station, MMI move the fiducial
camera to the fiducial mark position and have it stand by.
<Stop before DUMP> check box
Selected so that the machine stops before dumping the part to the dump box when
a part recognition error occurs.
<Stop Machine When Pick Error> check box
There is a PCB in which small chips are placed underneath the large part such as a
shield cap.
In cases where the machine is equipped with a dual gantry that works on such
PCB, since each gantry performs work individually, a chip must be placed first.
However, even though the chip cannot be mounted since an error occurred while
picking it up, a situation occurs in which the rear gantry must place the shield cap.
As such, if the rear gantry places the part that is placed on a part such as the shield
cap earlier than the front gantry, the part underneath cannot be placed. Therefore,
when a pickup error occurs, this function stops the machine immediately.
<Enable RESCUING> check box
In the case of the equipment with dual gantries, when the corresponding gantry
cannot work continuously due the shortage of parts in the feeder that has supplied
parts to any one of the gantries, it selects the function to improve the productivity
temporarily with another gantry performing the work instead.
For this function the <Auto Skip Placements> check box shall be selected in the
<Operation Option> group. This function can be used in the SM411 model.
<Auto Skip Placements> check box
Even when a specific part has run short during automatic production, placement is
continuously performed on the remaining placement points, generating a warning
message.
13-10
Advanced Chip Shooter DECAN S2 Administrator’s Guide
Caution This function allows the placement to be simply performed
continuously. If interference is expected in the future
between the skipped part and the nearby placed parts while
performing placement, release this function.
<FIFO Board Processing(Join Only)> check box
If the part placement on the PCB which was performed first on the dual lane
conveyor is not completed, do not perform placement on the PCB on the other
lane. This may be used to improve the balancing in the line. However, the line
productivity owing to this may actually vary depending on the operation condition
<Bad Mark Transferring> check box
This function is used when a scanner made by D-TEK is used. For more details
regarding this, contact us.
<Self Board Fiducials> check box
When the machine operation mode is 'Join', select this check box in order to
increase the part placement accuracy by having the front and rear gantries
recognize the fiducial marks on the PCB respectively.
<Soft Ground> check box
When the machine is installed at a location of soft ground, selecting this check box
will reduce the vibration and noise that occurs due to instantaneous acceleration of
the XY axes.
<PCB Transfer Speed> combo box
Used to adjust the PCB feeding speed. When the PCB is heavy, if it is selected at too
high speed, the conveyor belt may not feed the PCB sufficiently with the belt rotating
while slipping. The default selection is Middle. Adjust the speed appropriately, if
necessary.
Fast: high speed
Middle: medium
Slow: low speed
<Speed> slide bar
Select the driving speed of the XY axis driving motor.
<Inhibit Lane> group
When it is not used, select the workstation. Then the PCB is not loaded on the
corresponding workstation.
