System Setup
Start state.
3. Define the rule for naming files when using automatic saving.
(Machine Type and Version_Unit Information_Creation Date_E-Auto_File
Index.tmr)
Ex) SM411V1.047_Undefined_20080317_103705_E-Auto_0.tmr
4. Save the Telemetry file in the Log directory.
5. Of the Telemetry files automatically saved in the Log directory, only the five
most recent files are kept and older files are deleted automatically.
When performing works including measurement with the Telemetry being
finished forcedly, press the <Upload> button to change the state to the Stop state
and minimize the Telemetry screen and then perform the work.
2nd Stage
When an EMG level error occurs, save the log automatically and stop/start the
system automatically.
Define the rule for naming files when using automatic saving using the details
of the error.
(Machine Type and Version_Unit Information_Creation Date_E-Auto_File
Index.tmr)
Since the automatic Telemetry saving function may decrease the systems’
performance, use an option to turn off the corresponding function when faced with this
problem.
Memo The telemetry file can be saved up to 100 files.
<Scale> option button group
Able to setup the system of unit (mm/inch/mil) used by MMI of the equipment.
<Confirm before Move> option button group
Determines whether to display the confirm window prior to movement.
<None> option button: when this button is selected, does not display the confirm
message box when the movement command is transferred to the equipment.
<Z axis> option button: If this button is selected, when the movement command is
transferred to the equipment, displays the confirm message box if the command is
for Z-axis movement.
<XY, Z axis> option button: If this button is selected, when the movement
command is transmitted to the equipment, displays the confirm message box if the
command is for XY, and Z axes movement.
<Use OLP DB> check box
15-50
Advanced Chip Shooter DECAN S2 Administrator’s Guide
Selected when synchronize the part DB of each machine in the inline composed of
several machines.
Selecting this check box will allow the part DB to be shared between machines by
transmitting the part DB of the current machine to the T-OLP of the T-Solution.
<Show Backup Pin> check box
When using the function for sequential changing in the T-Solution, select this check
box to enable the backup pin dialog box.
<Use 1D Barcode JobChange> check box
It is possible to automatically download the corresponding PCB program by scanning
the barcode of the reel list printed in the T-Solution.
<1D Barcode Scan wait time(sec)> check box
When recognizing the 1D barcode using the scanner, sets the time in seconds taken
until the 1D barcode is recognized.
<Use File Backup> button
Backs up the modified system file and restores the MMI file if a problem occurs
during machine operation.

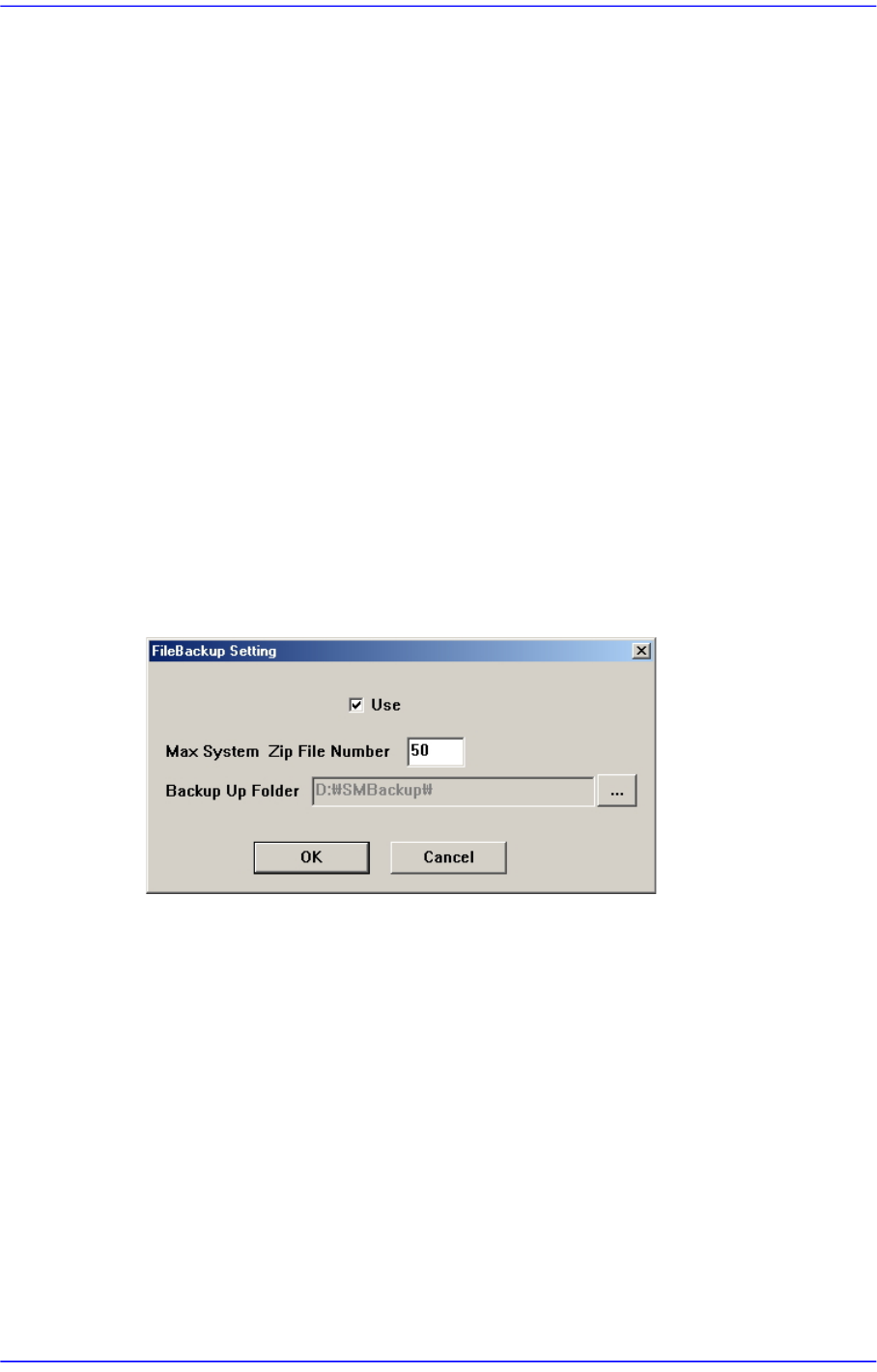

Figure15.16 “FileBackup Setting” dialog box
<Use> check box
Checking this check box will allow the file backup function to be used.
<Max System Zip File Number> edit box
Sets the maximum number of backup files.
<Backup Up Folder> edit box
'Sets the path for MMI file backup.
<Use Auto Error Report> button
Used to back up the MMI file manually when the user shuts the machine down. The
user can back up the MMI file manually only when the machine is in the idling state.
15-51
System Setup
Figure15.17 “Error Report” dialog box
<Use> check box
Checking this check box will allow the file backup function to be used.
<Path> edit box
Sets the path for MMI file backup.
<Ignore Restriction Pitch> check box
Ticking this check box will override any constraints on the Feeder Pitch settings of a
part.
When setting the Feeder Pitch of a part, the following restrictions are set by default.
Parts of 1005 or less (the Y size of a part is less than 0.65mm)
Feeder Pitch: Only 2mm or less can be selected
When an unavailable Pitch is selected, the following warning window appears.
Parts of 1608 or more (the Y size of a part is more than 0.65mm)
Feeder Pitch: Only 4mm or less can be selected
When an unavailable Pitch is selected, the following warning window appears.
