18-4
Advanced Chip Shooter DECAN S2 Administrator’s Guide
Board/Hour
Indicates the number of parts that are expected to be placed in an hour based
on the Previous Cycle Time (sec/board).
<- Build Time>
Indicates the required time in the “second” unit from the time the backup table
moves up after the most recently produced PCB was fed to the work station to the
time the backup table moves down after the PCB is placed.
<- Transfer Time>
Indicates the required transportation time per PCB.
<Operation Status> group
Display the information for operating time.
<Run Time>
Indicates the total time of placement time and wait time. (Run =Place +Wait)
(Run =Place +Transfer +Wait)
<- Place Time>
Indicates the time of installation from turning on the power of the equipment
to the present time.
<- Transfer Time>
Indicates the total time of PCB transportation from turning on the power of the
equipment to the present time.
<- Entry Wait>
Indicates the total time the PCB waits until the current time for placement
after the machine is turned on.
<- Exit Wait>
Indicates the total time that the PCBs have been worked completely waits
until the current time for transfer to the next machine after the machine is
turned on.
<Stop> Time
Indicates the time equipment was in stop status from turning on the power of the
equipment to the present.
<Run Stop Count>
Indicates the machine stop count during automatic production.
<Stop>
Indicates the machine stop count performed by the user during automatic
production.
<Error Stop>
18-5
Production Information Management
Indicates the count of machine stop performed by an error during automatic
production.
<Print To File> button
Saves the placement information related with PCB production in the assigned folder
(C:\ SmartSM\Pdinfo) in text file(*.txt) format.
<PPM<->%> button
Converts the indicated unit. (PPM<->%)
<Reset> button
Initializes all the indication information.
18-6
Advanced Chip Shooter DECAN S2 Administrator’s Guide
<Close> button
Closes the screen.

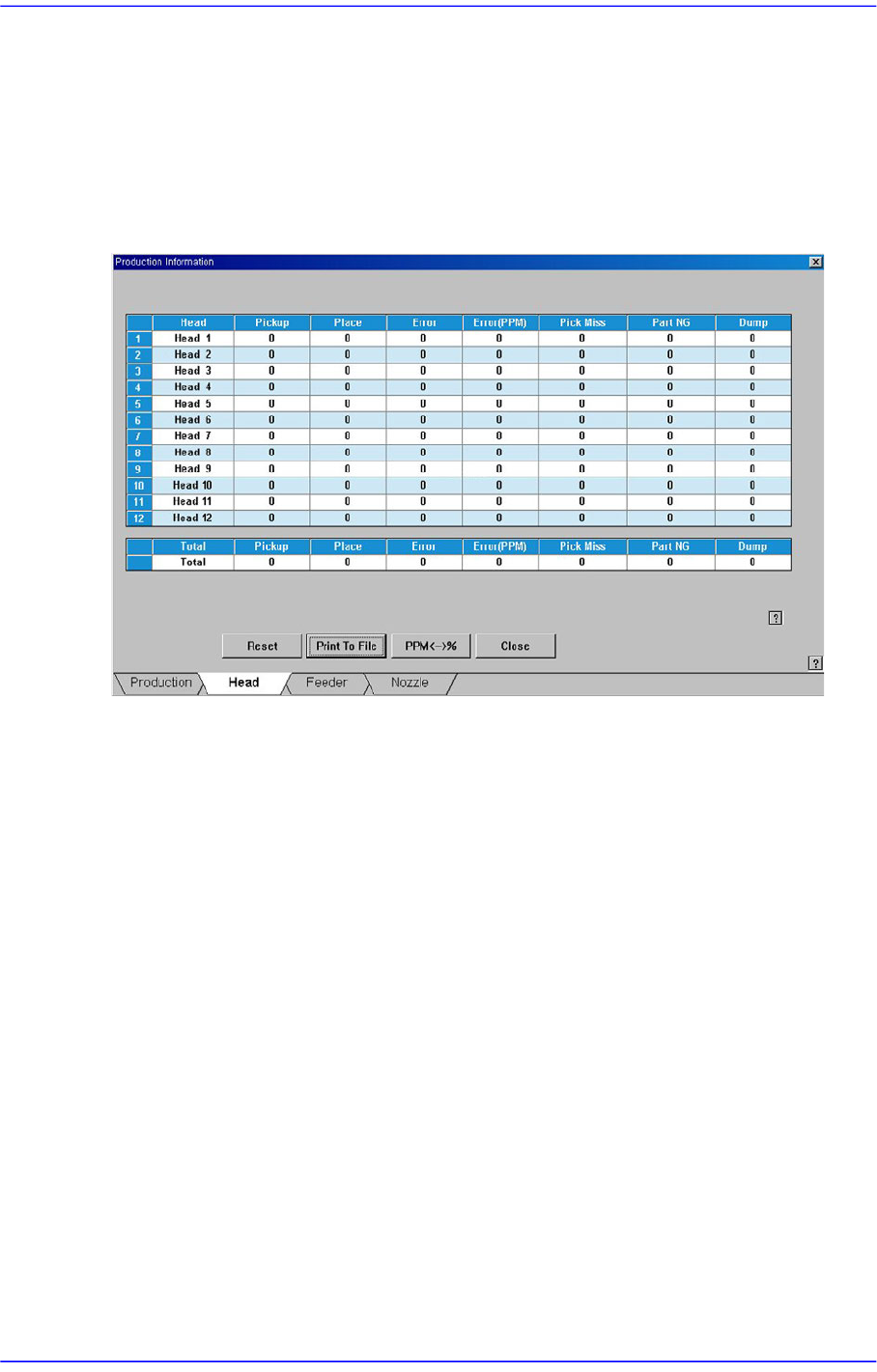

18.1.2. Head
Displays the operation data for each head. Shows the overall statistics information related
with placement.
<Head> column
Displays the total head number.
<Pickup> column
Displays the total number of components picked up.
<Place> column
Displays the total number of components placed.
<Error> column
Indicates the number of part placement failures after recognizing the picked up parts
using ‘Vision’.
<Error (PPM)> column
Recognize the picked part by using the vision system and indicate the non-placement
error in PPM unit.
<Pick Miss> column
Indicates the number of part pickup failures.
<Part NG> column
Indicates the number of part recognition failures using ‘Vision’ after pickup of parts.
