Advanced Chip Shooter DECAN S2 Administrator’s Guide

 Periph.

Perform setups related to the user defined dump box, tray feeder and peripheral

equipment.

 Light

Executes light mapping.

 Calib.

Perform complete calibration for the equipment.

 Pref.

Sets various options necessary for equipment operation.

 Device

Manages data related to the Tape, Stick, and Nozzle.

3-1

File Shortcut Menu

Chapter3. File Shortcut Menu

The <File shortcut> menu is composed of the following seven submenus: New, Open,

Save, Save As, Merge, Error MsgBar Show/Hide, Windows Tools, and Exit.

Figure3.1 File Menu and Submenus

Warning Except the PCB file, deleting or moving a system file or data

file arbitrarily could lead to the operation failure of MMI

program.

Except the PCB File, do not delete or remove a system file

or data file arbitrarily.

3-2

Advanced Chip Shooter DECAN S2 Administrator’s Guide

3.1. New [Ctrl+N]

<New> command is used to create a new PCB file. When the <New> command is

selected, the following dialog box is displayed.

Figure3.2 “New PCB File” dialog box

 <Copy data from an existing PCB file> check box

Used to copy certain data from an existing file and create a new file. When this box is

not checked, default data is used to create a new file. When this box is clicked on, the

<Items to Copy> dialog box is displayed.

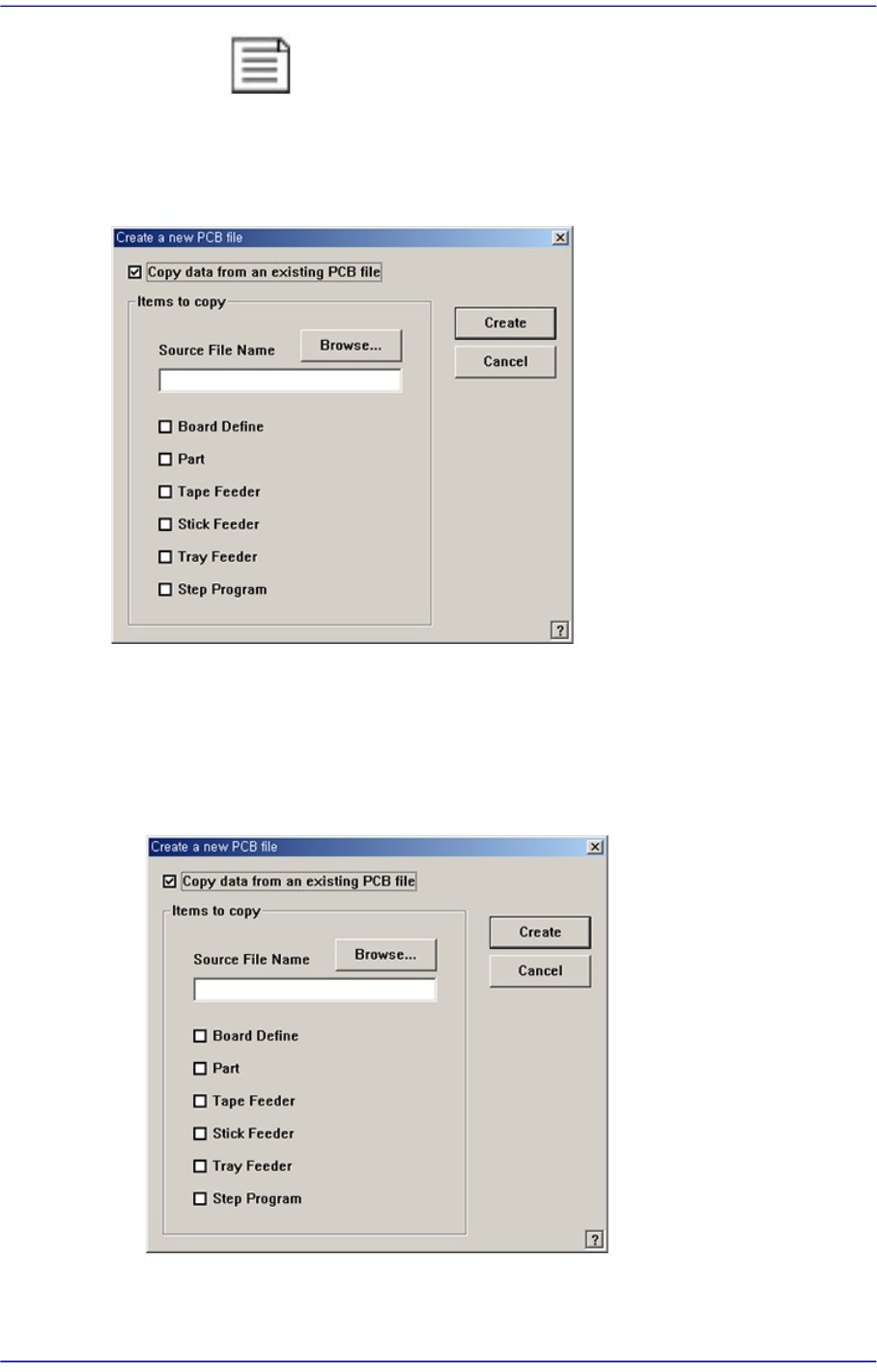

Figure3.3 “ Create a new PCB file” dialog box

 <Browse...> button

Used to create a new PCB file from existing files. When this button is clicked on,
