DIVISIO 4000 Series

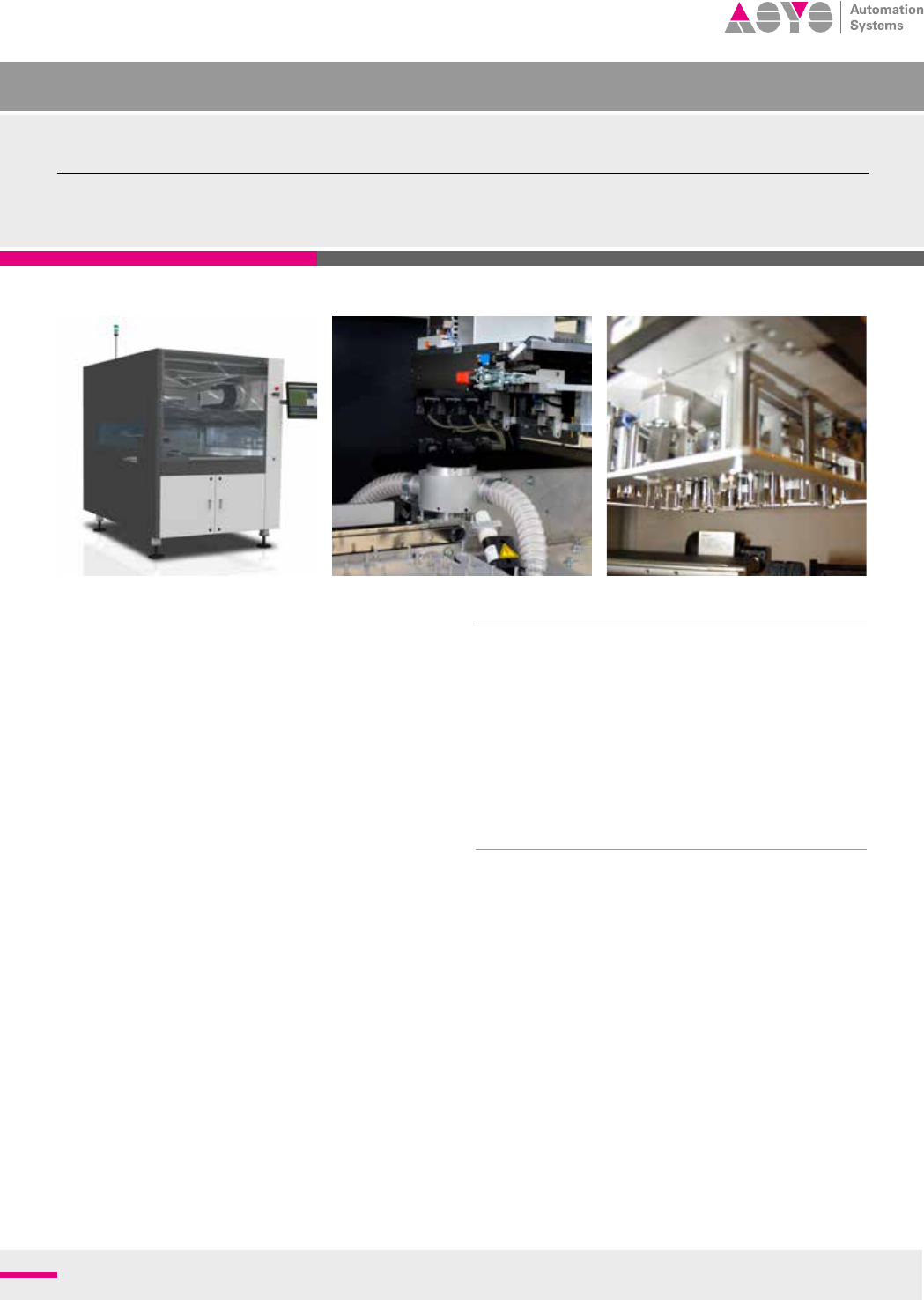

DIVISIO 4000
Automatic Inline Depaneling System
Options
_ Spindle or saw
_ Oine programming
_ ASYCAM CAD data conversion
_ Dust extraction
_ Camerasystem
+ Fiducial recognition
+ Cut inspection
+ Bad mark recognition
+ Code read
_ MES interface
_ Customized transport modules
Description
The DIVISIO 4000 is a unit for high volumes and a small
product mix. Arriving panels are transferred to a conveyor
where they are lifted up and then picked up by the gripper
adapter. The cutting tool (spindle or saw) is mounted in a
fixed position into the unit and the panel then travels over it. A
double spindle can also be installed to increase productivity.
The unloading conveyor can either be a flat belt conveyor, a
double belt conveyor, product carrier, shuttle or a combina-
tion of them.
Features
_ Linear motors for highest dynamics and accuracy
_ Tool coding
_ Automatic router-bit exchange
_ Quick change adapter system
_ Spring loaded hold down clamp assembly
_ SIMPLEX HMI oers comfortable operation
_ Ionization unit
_ ESD spindle

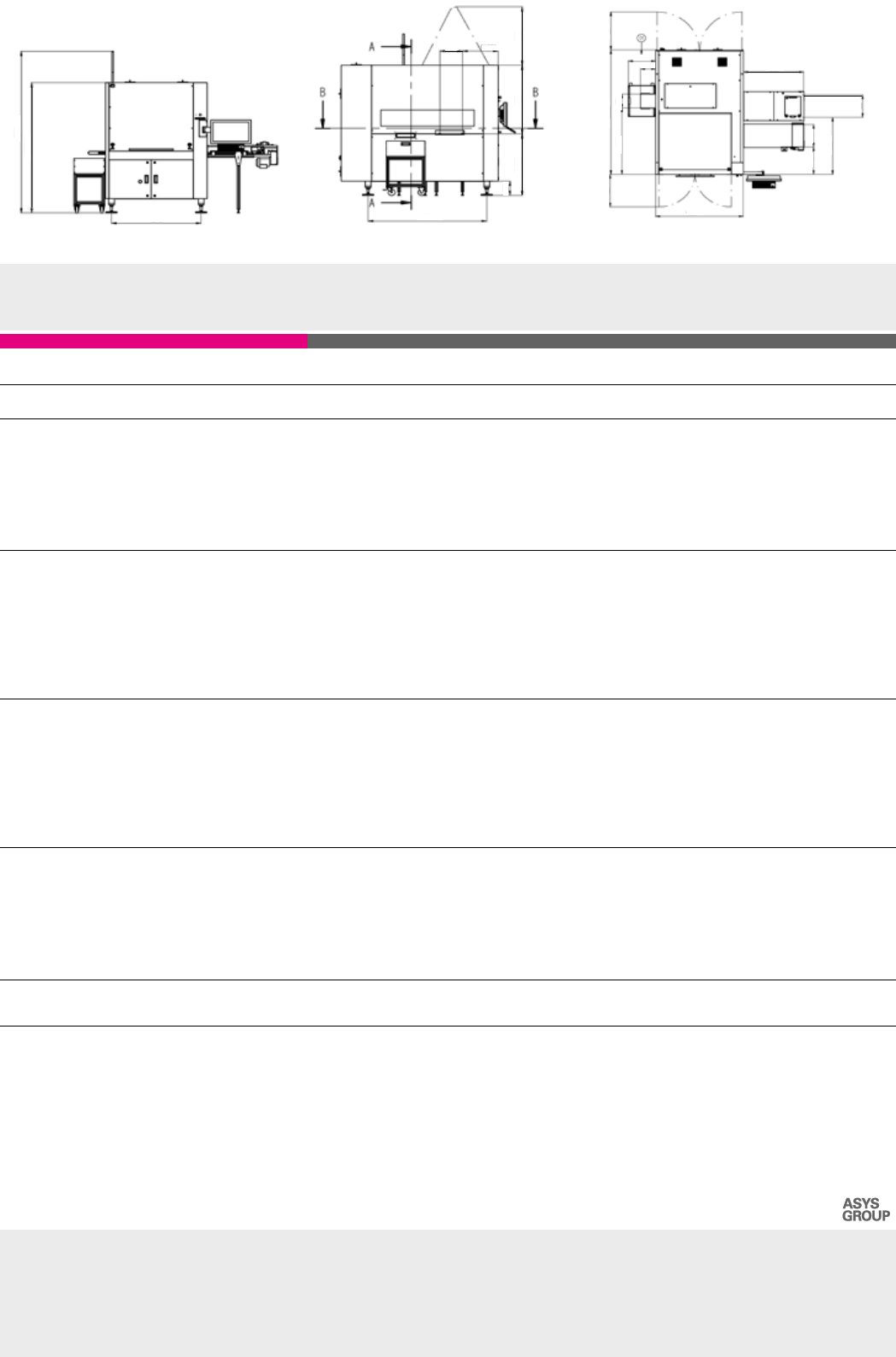

2500
2008
1276
1684
TH 950 1058 903
FA 508
320
220
2228,5
583
1189 250
250
1450
1000
492
1022
400
400
450
681
Subject to change without notice.
Some general descriptions and performance characteristics may
not be applicable to all products. Technical specifications are
subject to change without notice. Only features and technical
data provided in purchasing contract are legally binding.
Printed in Germany
ASYS Automatisierungssysteme GmbH
Benzstrasse 10
89160 Dornstadt, Germany
Tel (+49) 7348 9855 0
Fax (+49) 7348 9855 91
info@asys.de
For more information visit
www.asys-group.com
DIVISIO 4000
Routing and/or sawing
Machine Configuration
Transport height
Max. transport width
Interface
Transfer direction
Operating side
Fixed rail
850mm ±50mm
320mm
Siemens, SMEMA
From left to right
Front of the machine
Front of the machine
Panel Dimensions
Panel length
Panel width
Panel thickness
Panel weight max.
PCB weight max.
Component height, spindle-side
Component height, gripper-side
up to 360mm
up to 320mm
0.8 to 4.5mm
4kg
1.5kg
8mm; partial 18mm (other height on request)
40mm
Installation Requirements
Power supply
Power supply system
Fuse protection
Connection type
Power consumption (without suction)
Air supply
Air consumption
400V, 208V 50/60Hz, ±10%
3L + N + PE
3x C32 A
Fixed connection
0.9kW
6bar
120Nl/min
Machine Description
Length x Width x Height
Weight
Positioning
Repeatability
Noise Level
1448 x 2229 x 2008mm
1250kg (standard equipped)
±0.015mm (20°C ±1°C)
±0.005mm (20°C ±1°C)
< 75dB(A) (possible deviations due to
material mix of the panel)
Upgrades
Machine networking via IC Net
