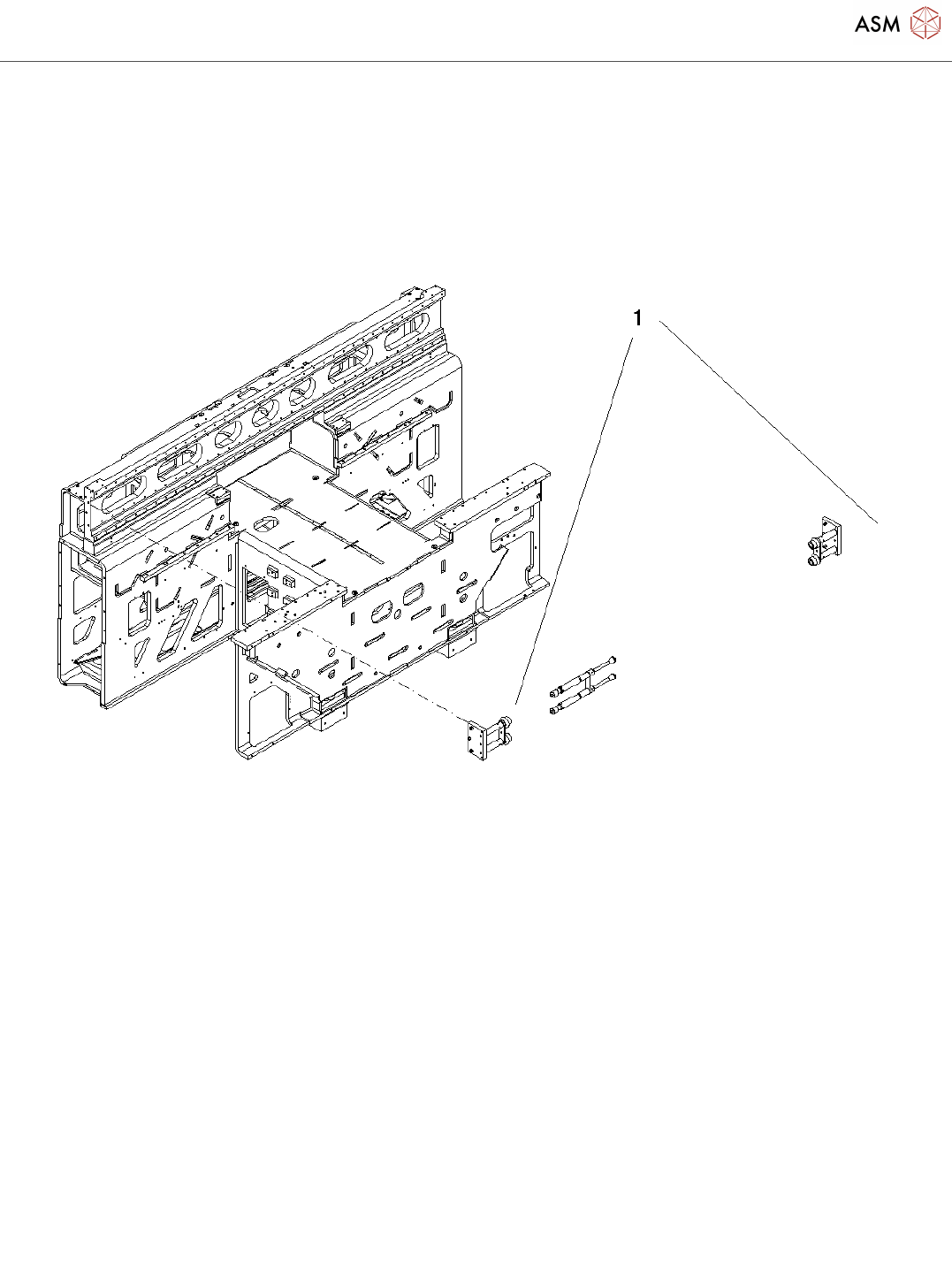

Y-Buffer Speed
Page 1 / 3 18.11.2021

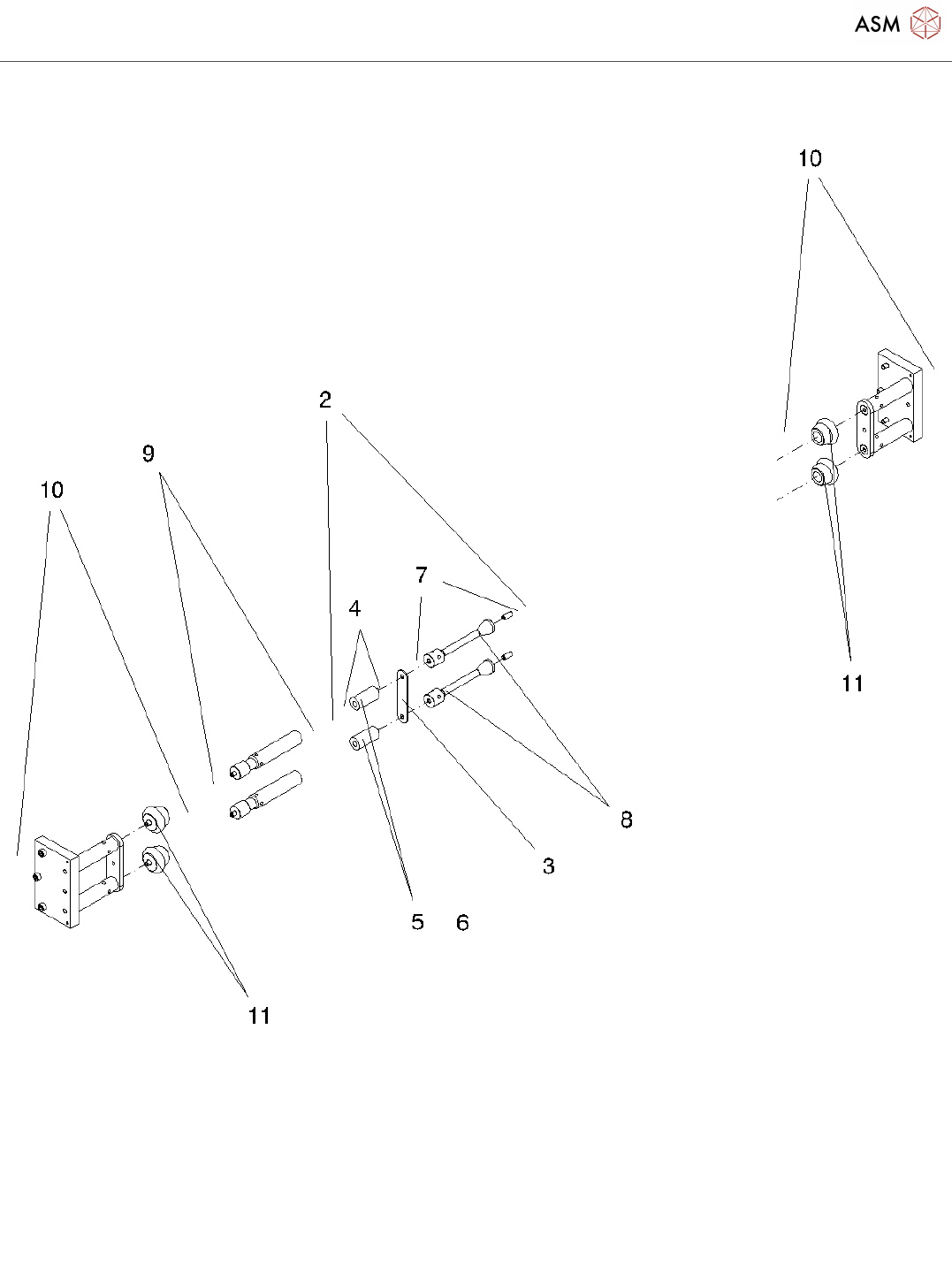

Y-Buffer Speed
Page 2 / 3 18.11.2021
Y-Buffer Speed
Page 3 / 3 18.11.2021
Pos. Item no. Description Part marking
1 03116885-01 TOTAL ASSEMBLY Y BUFFER SPEED
2 03100564-01 BUMPER GANTRY
3 03005574-02 REFLECTOR
4 03051730-01 BUFFER COMPL.
5 00301040-01 ELASTOMER SPRING 25*10,5*50
(90 SHORE A)
SPARE PART
6 00305650-01 SLEEVE SPARE PART
7 03100589-02 ASSY, CENTER STOP, Y AXIS SX4AS
8 03100588-02 CENTER STOP Y AXIS SX4AS
9 03032016-01 ASSEMBLY CENTRE STOP Y-AXIS X-
XS
*
10 03114631-01 BASE ASSEMBLY Y BUFFER INSIDE
TX
11 03064208-01 BUFFER ACE TA40-16 SPARE PART
