2OM-1751 6-86 (10) When the teaching is completed, press the [Complete] button. F2F96 1303-001 7.3 "COMP RCG" T est Window
2OM-1751
6-85
(9) When the corner and edge teaching operation is completed, check the data
and press the [Fixed] button.
F2F94
(9-1) Press the [Modify] button.

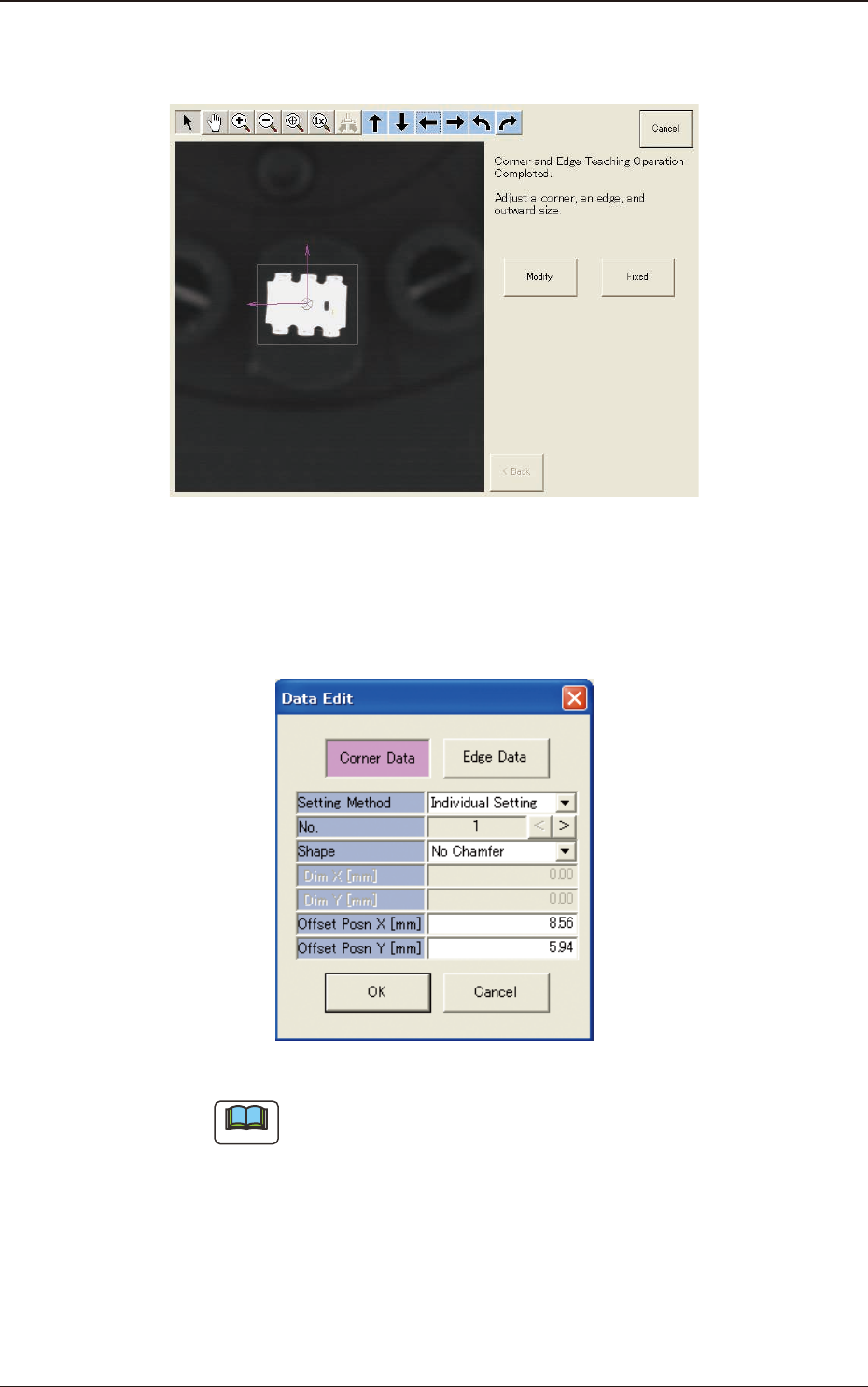

(The following "Data Edit" window appears. The data parameters can be
corrected for each corner data or edge data item.)
F2F95
Note
The indicated data may contain some fractional parts in the values. At the
end of the teaching operation, these fractional parts are truncated.
(9-2) When the component size is not the same as the outward length, correct the
outward length on the outward length graphic image to match.
(9-3) After the modication is completed, press the [Fixed] button.
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-86

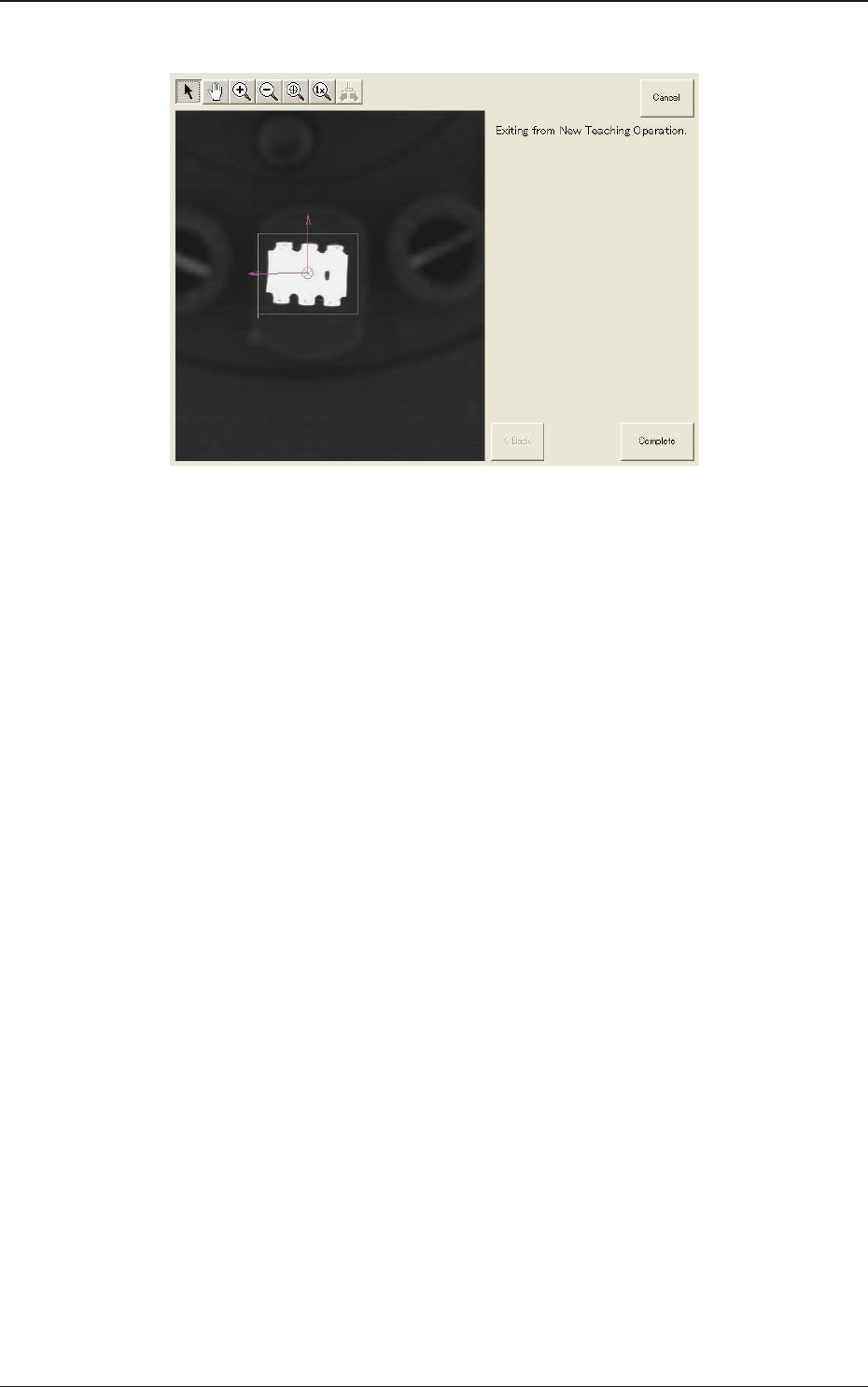

(10) When the teaching is completed, press the [Complete] button.
F2F96
1303-001
7.3 "COMP RCG" Test Window
2OM-1751
6-87
7.3.7.3 BGA/CSP Components
Note
The descriptions in this manual are based on a component whose electrode type
is "Simple (electrodes arranged in equal pitches)".
Procedure
(1) Select [Area Array] and [Simple] in this order and select the type of the
electrodes.
F2F97
F2F98
1303-001
7.3 "COMP RCG" Test Window
