2OM-1751 1-48 1303-001 4.2.7 T ape Pocket Recog When the [Pocket Recognition] button is pressed on the "Operation Mode" tab sheet, the following tab sheet appears. This function recognizes the pocket edge secti…
2OM-1751
1-471303-001
[4] Fdr In/Out
"Enable" or "Disable" can be selected to determine whether or not the feeder
offset (B) data should be cleared automatically when the feeder is installed
or uninstalled.
Fdr Offset (B) Auto Clear
Disable
Select this button not to clear the feeder offset (B) data automatically when
the feeder is installed or uninstalled.
Enable
Select this button to clear the feeder offset (B) data automatically when the
feeder is installed or uninstalled.
[5] Start with installed Fdr only
Disable
When pressed, automatic operation with installed feeder only is available.
Enable
When pressed, automatic operation with installed feeder only is disabled.
[6] In-use Fdr in/out
Disable
This button is selected when the "in-use feeder in/out" function is not used.
Enable
This button is selected when "in-use feeder in/out" function is used.
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-481303-001
4.2.7 Tape Pocket Recog
When the [Pocket Recognition] button is pressed on the "Operation Mode" tab
sheet, the following tab sheet appears.
This function recognizes the pocket edge section, nds the pocket center and
feedbacks the result to the feeder offset (B) value.
[6]
[2]
[3]
[4]
[5]
[8]
[9]
[10]
[11]
[7]
[1]
[12]
[13]
[15]

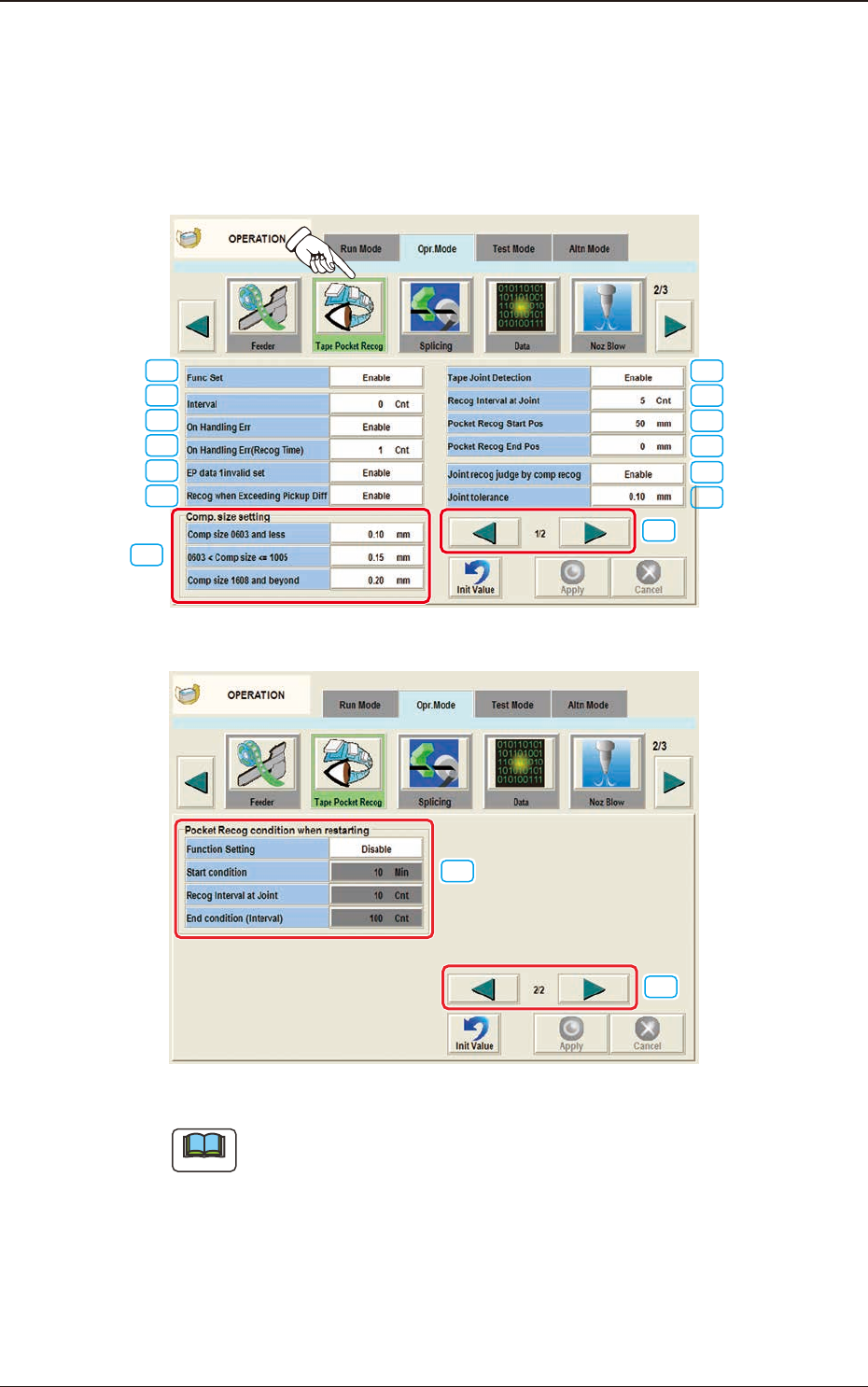

"Tape Rocket Recog" Tab Sheet (1/2) F2A33
[15]
[14]
"Tape Rocket Recog" Tab Sheet (2/2) F2A34
Note
(a) This function can be used for the components (size: 2012 or less) packaged
in a paper tape.
(b) In the case that the actual component size is out of the range of
±
25% of the
component size set in the component library, the "Machine Information"
window appears.
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-491303-001
4.2 "Opr.Mode" Tab Sheet
[1] Func Set
"Enable" or "Disable" can be selected to determine whether or not the
automatic teaching function should be used for the feeder pocket recognition.
[Disable] Button
Select this button not to use the automatic teaching function for the feeder
pocket recognition.
[Enable] Button
Select this button to use the automatic teaching function for the feeder pocket
recognition.
When the [Enable] button is selected for "Func Set" (automatic teaching
of feeder pocket recognition) in the "Tape Pocket Recog" group box, the
following buttons become available.
[2] Interval
When this button is pressed, the "Interval" window opens, enabling you
to specify the number of automatic teaching operations to be performed
periodically according to the number of tape feeding times for the feeder
pocket recognition.
[3] On Handling Err
One of the following buttons can be selected to determine whether or not
an automatic teaching operation should be performed on the feeder pocket
recognition after a pickup error has occurred.
Disable
Select this button not to perform an automatic teaching operation on the
feeder pocket recognition after a pickup error has occurred.
Enable
Select this button to perform an automatic teaching operation on the feeder
pocket recognition after a pickup error has occurred.
Note
This function is not available unless the "On Handling Err (Recog Time)"
is set to "1" or more.
[4] On Handling Err (Recog Time)
Set the feeder pocket recognition times when the "On Handling Err" has
been set to "Enable".
