2OM-1751 1-55 1303-001 4.2.9 Data When the [Data] button is pressed on the "Opr. Mode" tab sheet, the following window appears. [2] [1] F2A36 [1] T emp Comp Lib Save Mode One of the following options can be sel…
2OM-1751
1-541303-001
Tape Length
The condition for displaying the alarm for splicing, is set based on the
remaining tape length.
PCB Count
The condition for displaying the alarm for splicing, is set based on the
number of producible PCBs.
[Count] Button
When this button is pressed, it becomes possible to set the number of PCBs
(PCBs that can be produced) as a condition to issue a splicing warning
message.
[4] "Fdr Tape Joint Detection" Group Box
Fdr tape jt detect. Snsr
"Enable" or "Disable" is selected for the joint seam detection sensor.
Set the joint Auto. Skip.
"Enable" or "Disable" is selected for the "Set the joint Auto. Skip", in this
text box.
Skip LG(Front)
The skip start position from the joint is set in this text box.
Skip LG(Rear)
The skip end position from the joint is set in this text box.
Frd Tape Joint Detection ErrStop
When an error (E3) is caused in the tape feeder, the machine is stopped.
Reference
Refer to "SIGMA-G4/G5 Tape Feeder Instruction Manual" for the derails
of the error codes for the tape feeder.
Skip Func after comp missing det
"Enable" or "Disable" for the Skip after "No Component" detected, is
selected in this selection box.
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-551303-001
4.2.9 Data

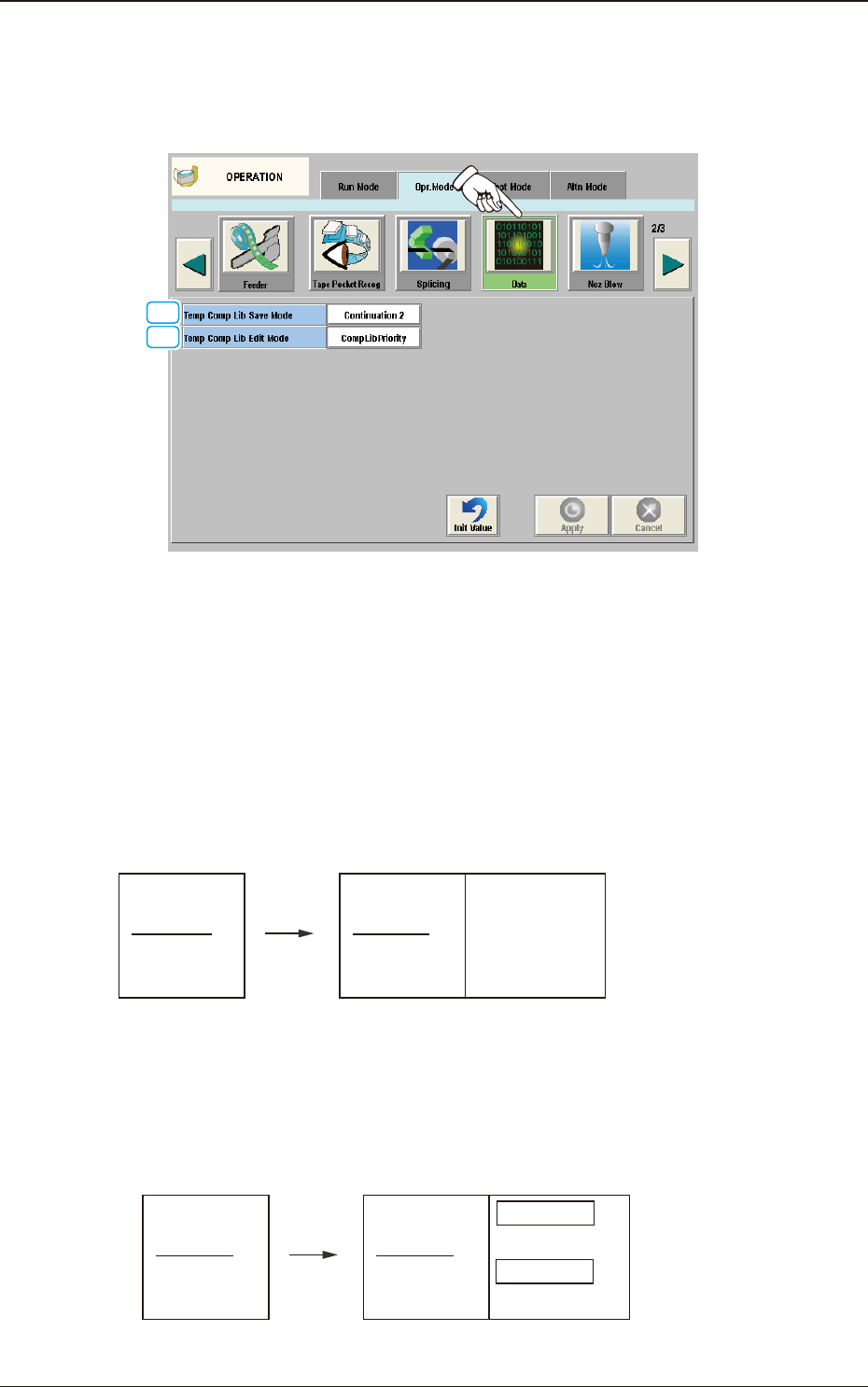

When the [Data] button is pressed on the "Opr. Mode" tab sheet, the following
window appears.
[2]
[1]
F2A36
[1] Temp Comp Lib Save Mode
One of the following options can be selected for saving the carrier data.
[Standard] Button
When selected, the data saving operation continues only when the component
data is perfectly consistent.
(Standard)
(Before Changeover)
101 AAA
102 BBB
103 CCC
104 DDD
(After Changeover)
All are initialized because there is a
difference in 102.
101 AAA
102 DDD
103 CCC
104 DDD
Initialized
Initialized
Initialized
Initialized
Simplified Packaging
Direction Change Function
F2A37
[Continuation 1] Button
The system keeps on saving only the component data that has the same ID.
(Continuation 1)
(Before Changeover)
101 AAA
102 BBB
103 CCC
104 DDD
(After Changeover)
The 102 data is initialized because
there is a difference.
The 104 data is cleared because
it is not used.
The other data is continued.
101 AAA
102 DDD
103 CCC
104
Continued
Initialized
Continued
Cleared
Simplified Packaging
Direction Change Function
F2A38
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-561303-001
Continuation 2
The system keeps on saving the data when the component data has the same
ID and is not used.
(Continuation 2)
(Before Changeover)
101 AAA
102 BBB
103 CCC
104 DDD
(After Changeover)
The 102 data is initialized because
there is a difference.
The 104 data is sustained because
it is not used.
The other data is continued.
101 AAA
102 DDD
103 CCC
104
Continued
Initialized
Continued
Continued
Edited Data
F2A39
[2] Temp Comp Lib Edit Mode
The changing method for the edited data is selected in this text box.
Standard
The edited data is maintained.
Comp Lib Priority
When selected, this button initializes the pieces of data having the changed
IDs to be those in the component library data.
4.2 "Opr.Mode" Tab Sheet
