4.2.10 Noz Blow
This function is used to prevent the nozzle clogging.
Using this function can extend the nozzle maintenance interval.

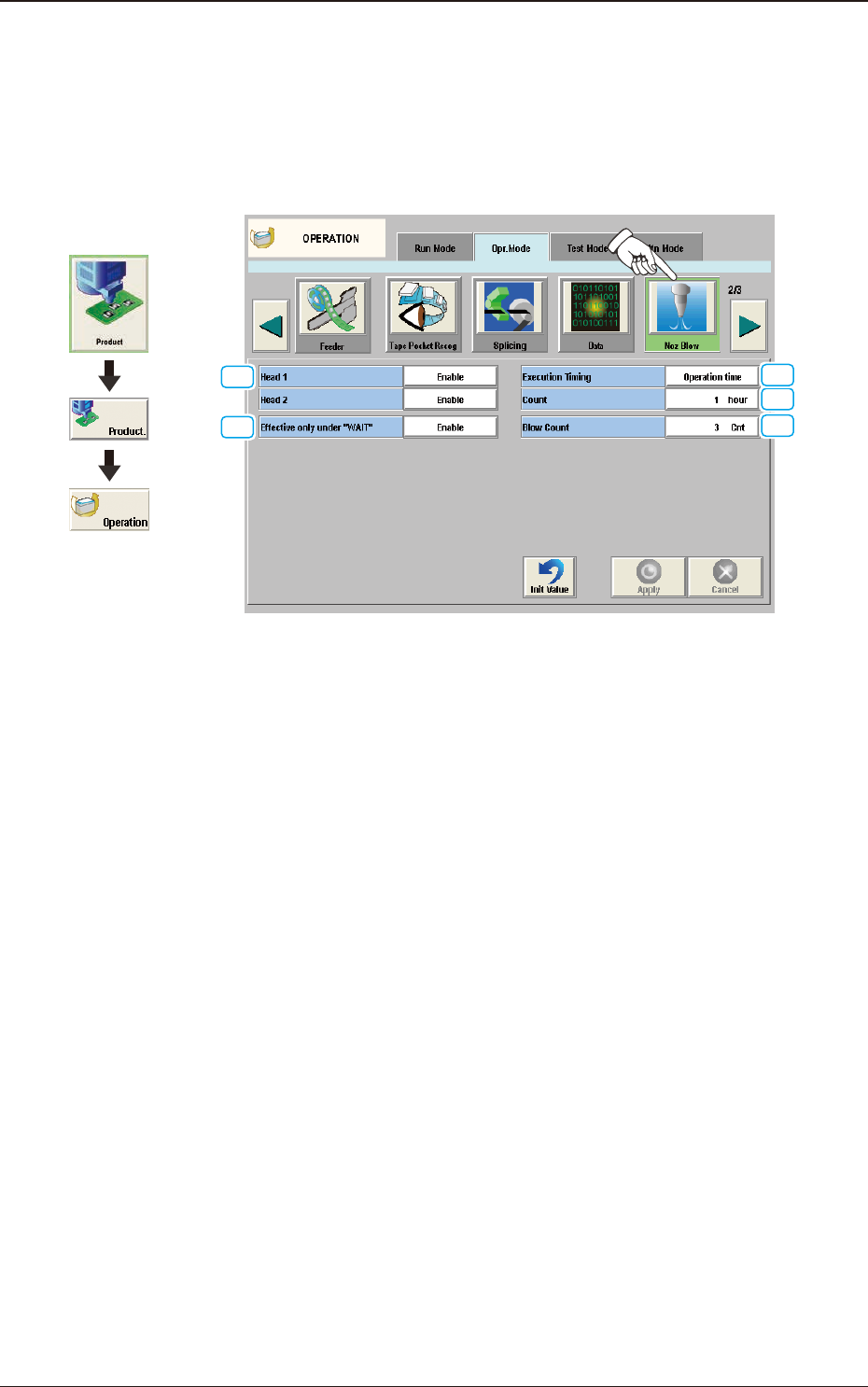

When the [Noz Blow] button is pressed on the "Opr. Mode" tab sheet, the
following window appears.
[2]
[1]
[4]
[3]
[5]
F2A40
[1] Head 1, Head 2
Disable
When this button is selected, the nozzle air blowing function is not activated.
Enable
When this button is selected, the nozzle air blowing function is activated.
[2] Effective only under "WAIT"
Disable
The nozzle air blowing function is used during the Machine (STANDBY)
mode.
Enable
The nozzle air blowing function is used based on the set timing.
Graphic
Development
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-581303-001
[3] Execution Timing
Specify the timing to execute the air blowing.
Operation time
Select this button to specify the timing of the execution based on the running
time.
PCB Count
Select this button to specify the timing of the execution based on the number
of PCBs.
[4] Count
The set value is designated based on the item selected in executive timing.
When the [Run Time] is selected, the interval from the automatic operation
start to the air blow execution is set based on time.
When the [PCB Counter] is selected, the interval from the automatic
operation start to the air blow execution is set based on the completed
number of PCBs.
[5] [Blow Count] Button
Specify the number of blowing times.
4.2 "Opr.Mode" Tab Sheet
2OM-1751
1-591303-001
4.2.11 Flux spread

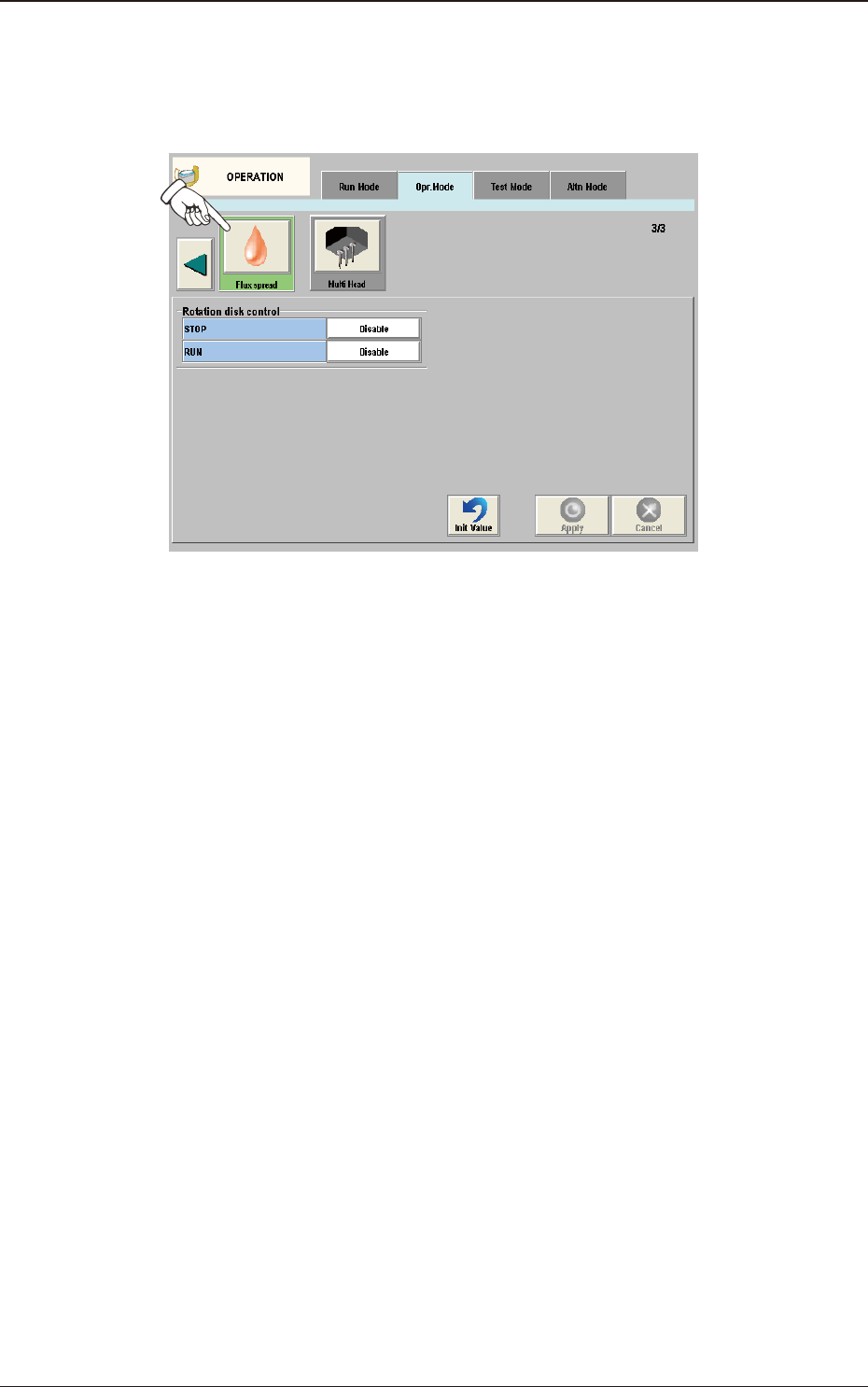

When the [Flux spread] button is pressed on the "Opr. Mode" tab sheet, the
following window appears.
F2A41
It is set when the ux application unit (option) is used.
4.2 "Opr.Mode" Tab Sheet
