2OM-1751
2-11303-001
1. Outline of Pattern Program
[1]
[2]
[3]
[4]
F2B1
Graphic
Development
1. Outline of Pattern Program
2OM-1751
2-21303-001
[1] Pattern Program Menu
The "Pattern Program Menu"window is provided with the following eight
menu items. When each button is pressed, the corresponding window
appears.
Windows Description
Common SET
Note
This window is used for dual transfer (Option).
PCB
Using these parameters, the PCB size and reference, etc. are set in this
window.
Reference
Refer to "3.2 PCB" for the details.
Operation
Using these parameters, the PEC recognition mark used in the PEC
recognition operation, is set in this window.
Reference
Refer to "3.3 Operation" for the details.
Control
Using these parameters, the automatic operation is controlled.
Reference
Refer to "3.4 Control" for the details.
PL Head/Nozzle
Using these parameters, the nozzle is placed on the specied position
(Placement Nozzle/Head No.) in the head.
Reference
Refer to "3.5 PL Head/Nozzle" for the details.
CMPNT PL
Using these parameters, the component IDs (component types) to be
arranged in each fdr No. (Feeder No.), are set.
Reference
Refer to "3.6 CMPNT PL" for the details.
Placement
Using these parameters, the components in the component arrangement
data are set to place them on the specied coordinate position and in the
specied direction.
Reference
Refer to "3.7 Placement" for the details.
HDLG/PL
Reference
Refer to "3.8 HDLG/PL" for the details.
T2B1
[2] Edited Data Display Area
The data items selected in the pattern program menu are displayed in this
area.
1. Outline of Pattern Program
2OM-1751
2-31303-001

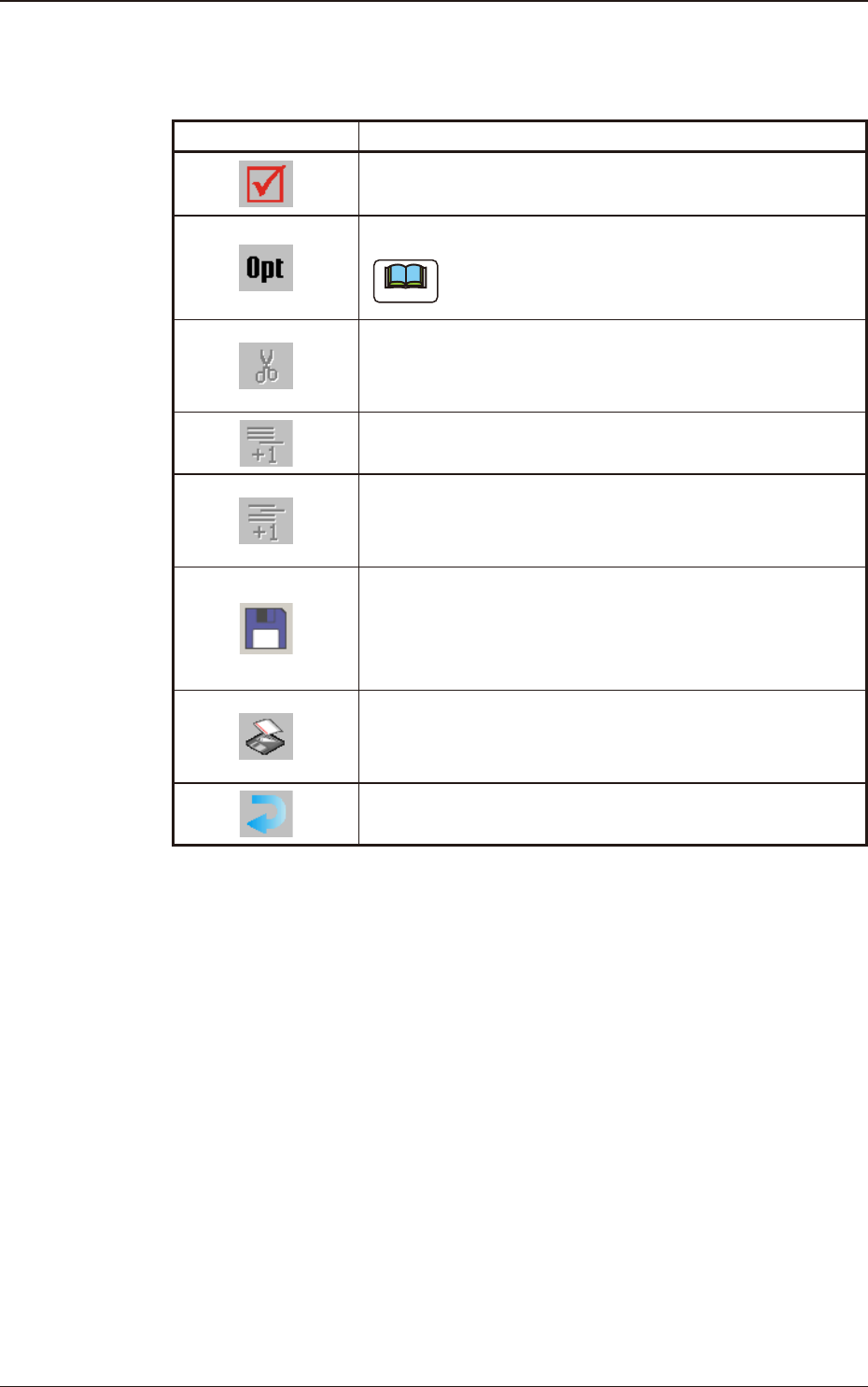

[3] Tool Bar
The operation commands that can be executed in the data edit window, are
collectively displayed as icons.
Icons Description
When selected, the data is checked.
Whether or not the data is completed, is checked.
When selected, the data is optimized.
Note
When pressed, the machine components are searched.
When selected, the data within the selectable range is
cutout.
When selected, an empty line is added to the last portion.
An empty line is added to the last line.
When selected, an empty line is added to the cursor
position.
An empty line is added to any position.
When selected the current le is saved.
The le currently in the course of editing, is saved.
In the case of new le, the le is to be saved with a new
name.
When selected, the le is saved with a new name.
The le currently in the course of editing, is saved with a
new name.
When selected, the window is returned.
The "Product." window is returned.
T2B2
[4] Data Edit Window
The ten-key pad or list selection buttons appropriate for the data selected in
the pattern program menu, are displayed in this window.
[AC] Button :
When pressed, the data in the course of the entry operation,
is cleared.
[BS] Button :
When pressed, a backspace is given to the data in the course
of the entry operation.
[Bk.] Button
[Fr.] Button :
When pressed, the displayed window is changed.
[Set] Button :
When pressed, the entered numerical value or selected item
is set.
