2OM-1751
2-321303-001

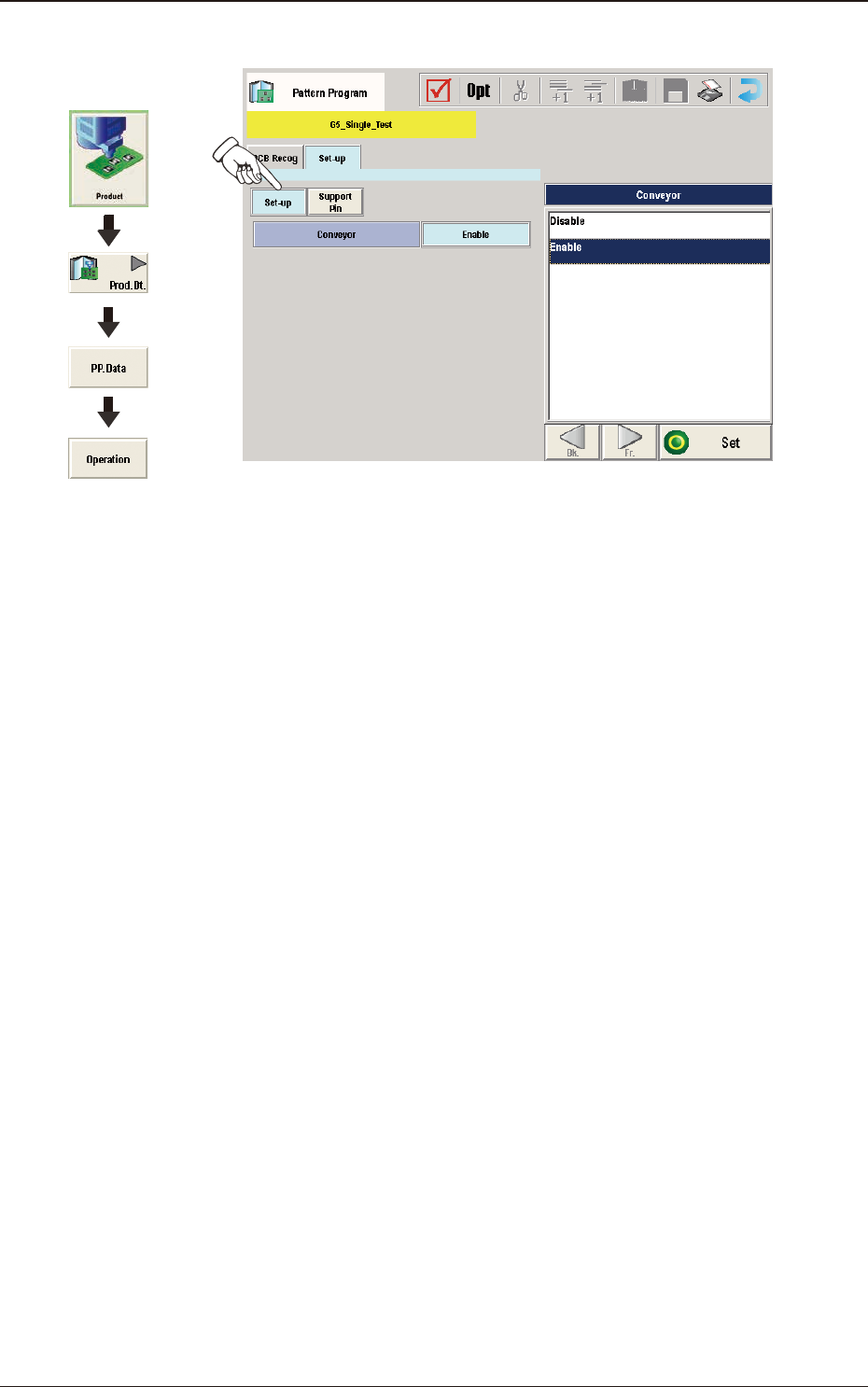

(C04) Set-up Data
F2B24
(C04_01)
Conveyor
Using these buttons, whether or not the conveyor width is setup in the pattern
program change operation, is set.
Graphic
Development
3.3 Operation
2OM-1751
2-331303-001

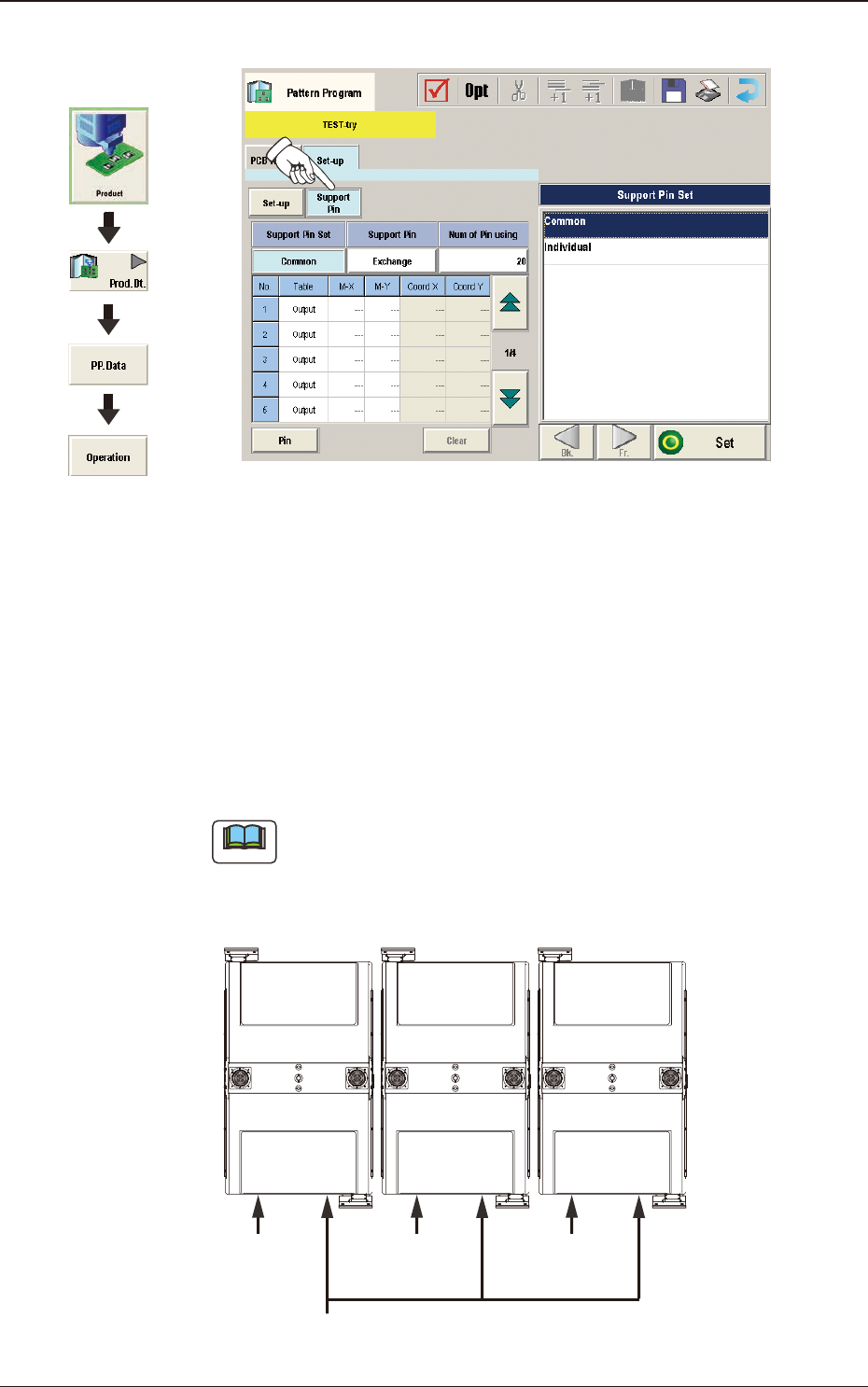

(C05) Support Pin Data
F2B25
(C05_01)
Support Pin
Using the selection buttons, select "Common" or "Individual" to set.
Common
When selected, it is set as the line common data.
Individual
When selected, it is set as the machine individual data.
Note
When the line consists of two or more machines and the line common data
is set up, the data is shared by all the machines (SIGMA-G5) in the line.
However, when the machine individual data is set up, each machine has its
own individual data to be set.
Line Common Data
Machine Individual
Data
Machine Individual
Data
Machine Individual
Data
F2B26
Graphic
Development
3.3 Operation
2OM-1751
2-34
(C05_02)
Support Pin
Using this selection button, it is set whether or not the support pins are setup
automatically in the pattern program change operation.
(C05_03)
The number of Pin using
The number of pins to be used in the automatic operation is set in this
selection box.
•
Data Input Range
1 to 20 pins
(C05_04)

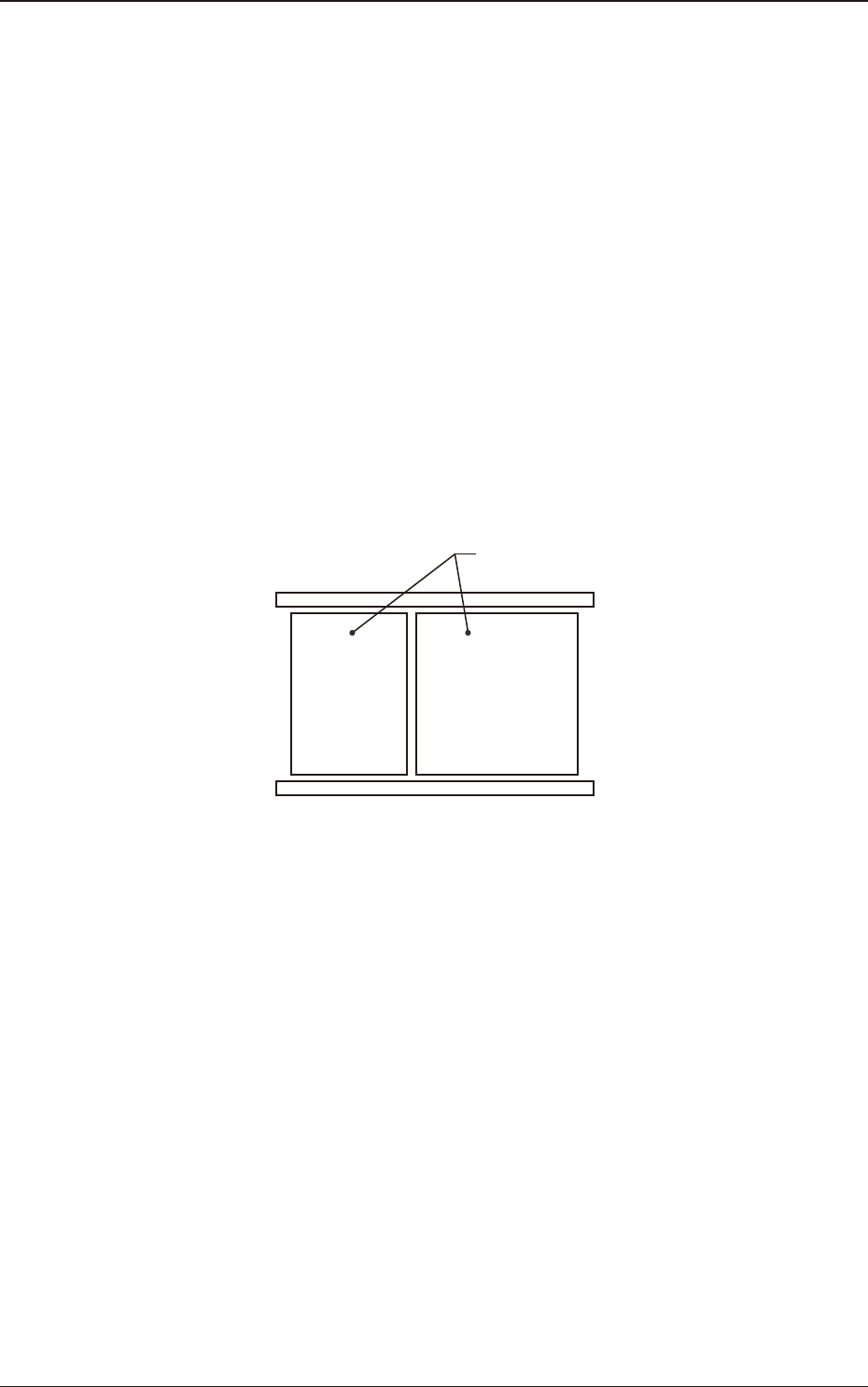

Table
Using this selection box, it is set that the backup base where the support pins
are placed, is in the output or input.
Input Output
Backup Base
F2B27
1303-001
