2OM-1751 2-36 1303-001 3.4 Control (D01) Control Data When the [Control] tab is pressed in the "Control" window, the following tab sheet appears. F2B30 (D01_01) Placement Mode "Product" or "Pass&…
2OM-1751
2-351303-001
(C05_05)
M-X, M-Y
Using these selection boxes, the support pin placement coordinates (M-X,
M-Y) are setup.
Coord X, Coord Y
The set support pin coordinates are displayed in these data boxes.
•
Data Input Range
Input
M-X
: 1 to 30
M-Y
: 1 to 50
Output
M-X
: 1 to 30
M-Y
: 1 to 50
Y
X
Input Output
F2B28
Note
When the [Pin] button is pressed, the "Support Pin" dialogue box is opened
and the support pin positions can be checked.
When the [Clear] button is pressed, the support pins with the selected Nos.
are cleared.
F2B29
3.3 Operation
2OM-1751
2-361303-001
3.4 Control
(D01)
Control Data
When the [Control] tab is pressed in the "Control" window, the following tab
sheet appears.
F2B30
(D01_01)
Placement Mode
"Product" or "Pass" is selected for the placement mode in this pane.
Normally, "Product" is selected.
Product
: When selected, the placement operation is performed.
Pass
: When selected, the PCB is passed without placement.
Note
When the pattern program set to "Pass", is setup on the Pattern Program
Data, the vacuum pump is automatically turned OFF.
Graphic
Development
3.4 Control
2OM-1751
2-371303-001
(D01_02)

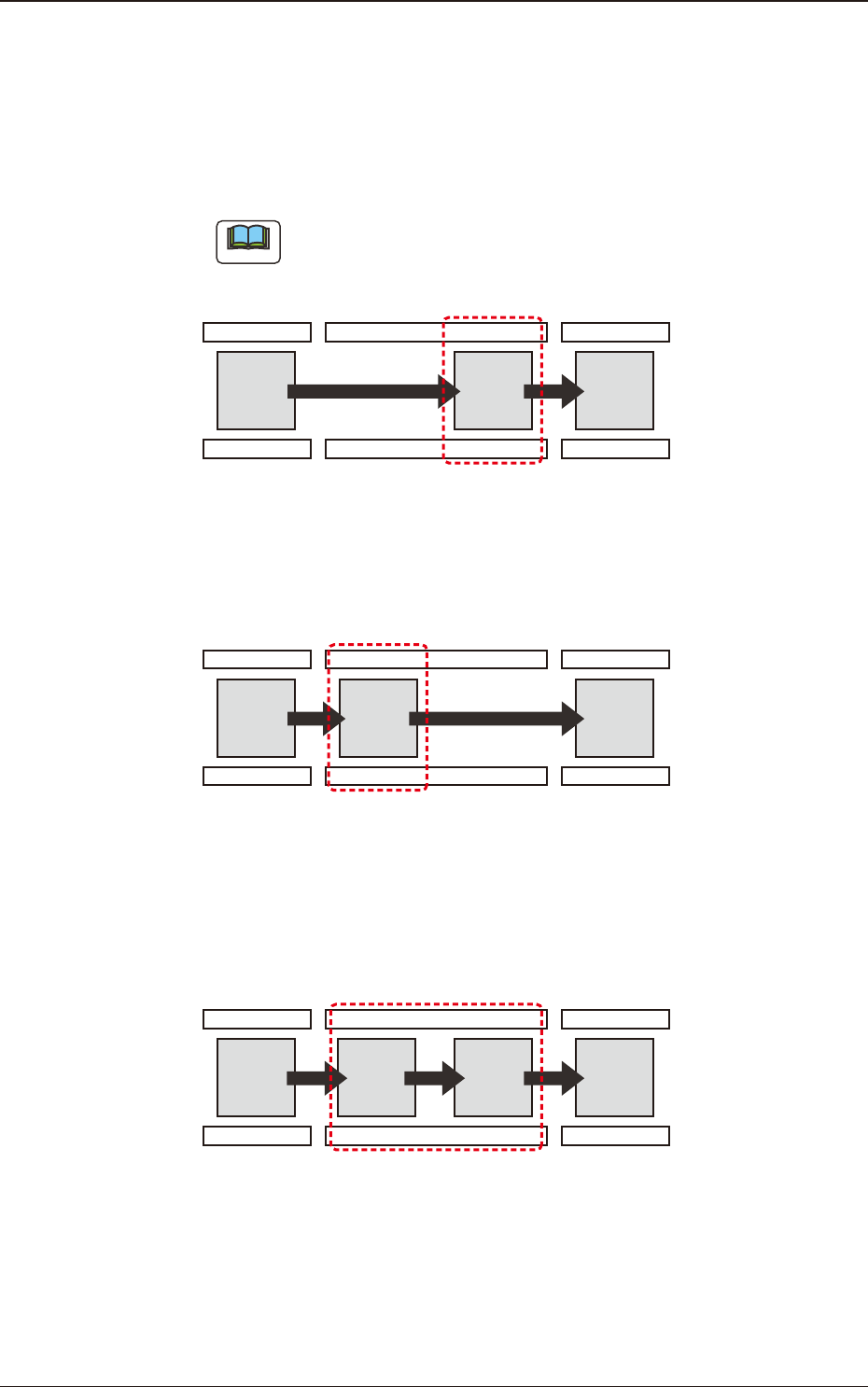

PCB Finishing Position
The PCB Finishing Position is selected in this text box.
Output
The component placement is performed on the downstream side.
Note
For the PCB with the size of 260 mm or more in the X-direction, the
components are to be placed in the downstream side.
Process Position
F2B31
Input
The component placement is performed on the upstream side.
Process Position
F2B32
Sequential
The component placement is performed on the upstream and downstream
sides successively.
Process Position
F2B33
3.4 Control
