2OM-1751 2-50 (E02) Nozzle Stk 1, 2 data When the [Nozzle Stk 1] or [Nozzle Stk 2] tab is pressed on the "PL Head/ Nozzle" window, the following tab sheet appears. F2B41 (E02_01) Nozzle Stk 1, 2 Address Stk T y…
2OM-1751
2-491303-001
3.5 PL Head/Nozzle

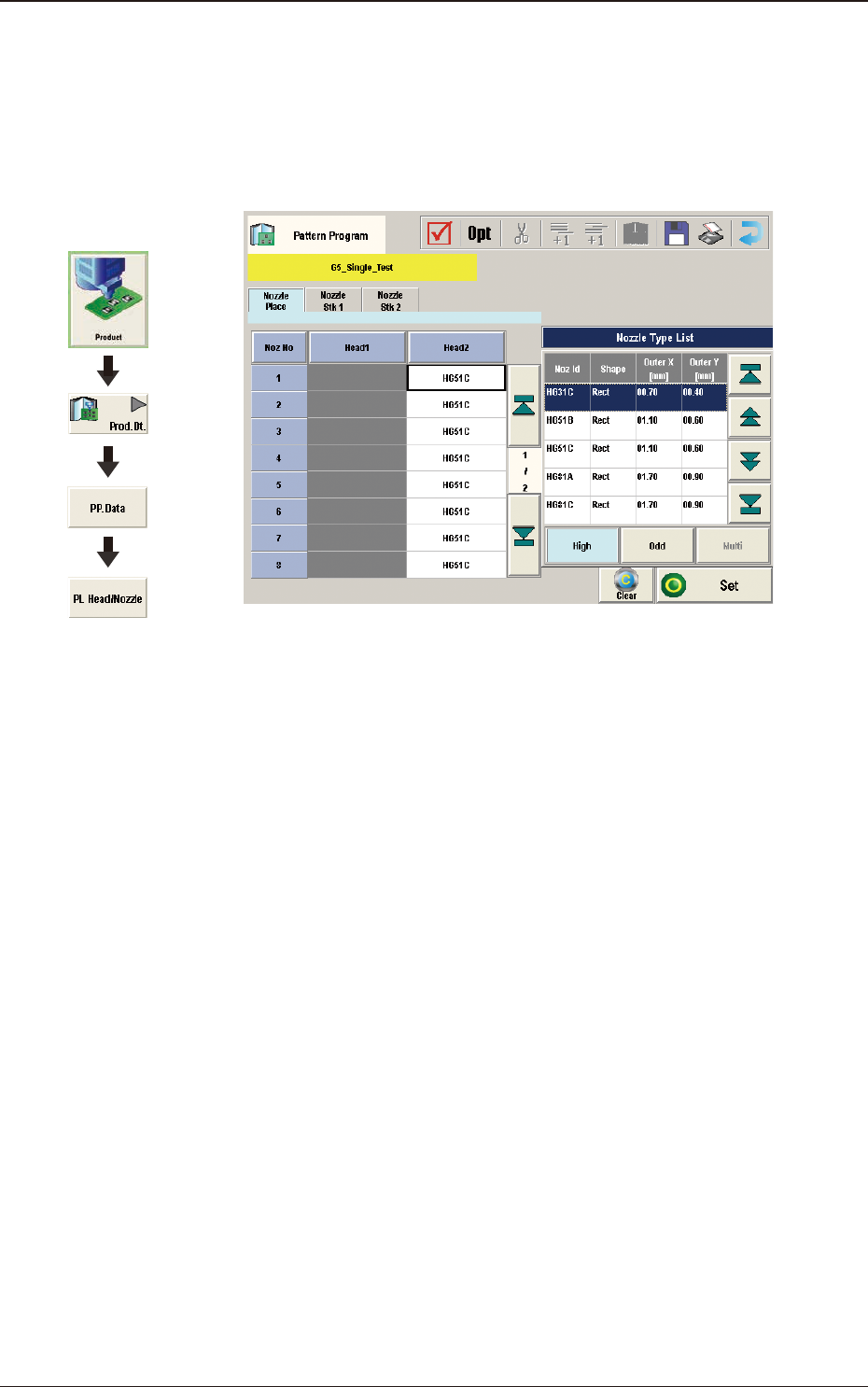

(E01) Nozzle Place Data
When the [Nozzle Place] tab is pressed in the "PL Head/Nozzle" window,
the following tab sheet appears.
F2B40
(E01_01) Nozzle Place
Head1 and 2
Nozzle No. 1 to 15
This data is used to allocate the nozzles to the specied positions (Nozzle
Allocation Nos.) on the heads.
Graphic
Development
3.5 PL Head/Nozzle
2OM-1751
2-50

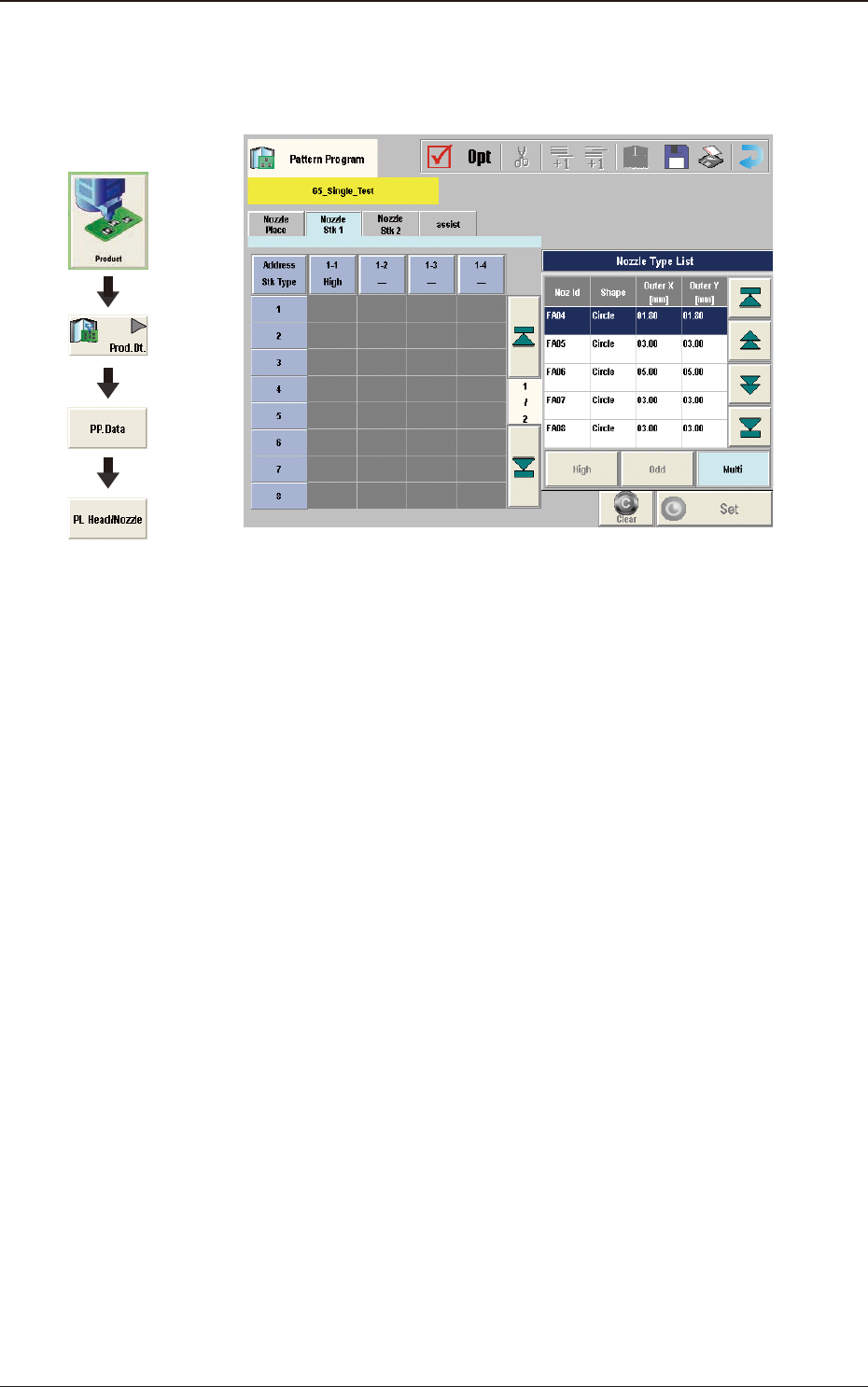

(E02) Nozzle Stk 1, 2 data
When the [Nozzle Stk 1] or [Nozzle Stk 2] tab is pressed on the "PL Head/
Nozzle" window, the following tab sheet appears.
F2B41
(E02_01) Nozzle Stk 1, 2
Address Stk Types 1 to 15
Using these parameters, the nozzles are housed in the specied positions
(address stocker type) in the nozzle stocker.
High
: 1 to 15
Multi
: 1 to 9
1303-001
3.5 PL Head/Nozzle
Graphic
Development
2OM-1751
2-511303-001
3.6 CMPNT PL
(F01) CMPNT PL Data
When the [Block 1] or [Block 2] tab is pressed on the "CMPNT PL Data"
window, the following tab sheet appears.
F2B42
(F01_01)
Fdr No.
Shown are the feeder Nos. in the placement feeder location data.
Block 1
: 101 to 150
Block 2
: 201 to 250
(F01_02)
Component ID
Set component IDs in the text boxes.
Graphic
Development
3.6 CMPNT PL
