2OM-1751 2-56 (G01_01) Un Select one of the following tabs (placement data groups) in one pattern program. U01 : First Placement Data Group U02 : Second Placement Data Group ↓ Un : Up to 99 placement data groups can be s…

2OM-1751

2-55

[2] [Edit] Button

When this button is pressed, the P-Data or O-Data is edited.

When the data to be edited is selected and the [Edit] button is pressed, the

"Data Setting" window appears.

F2B44

Reference

Refer to (G03) or (G04) for each item to be set.

[3] Placement Data Group Select Button

Using this button, the placement data group is selected.

[4] Placement Data Select Button

Using this button, the placement data is selected.

1303-001

3.7 Placement

2OM-1751

2-56

(G01_01)

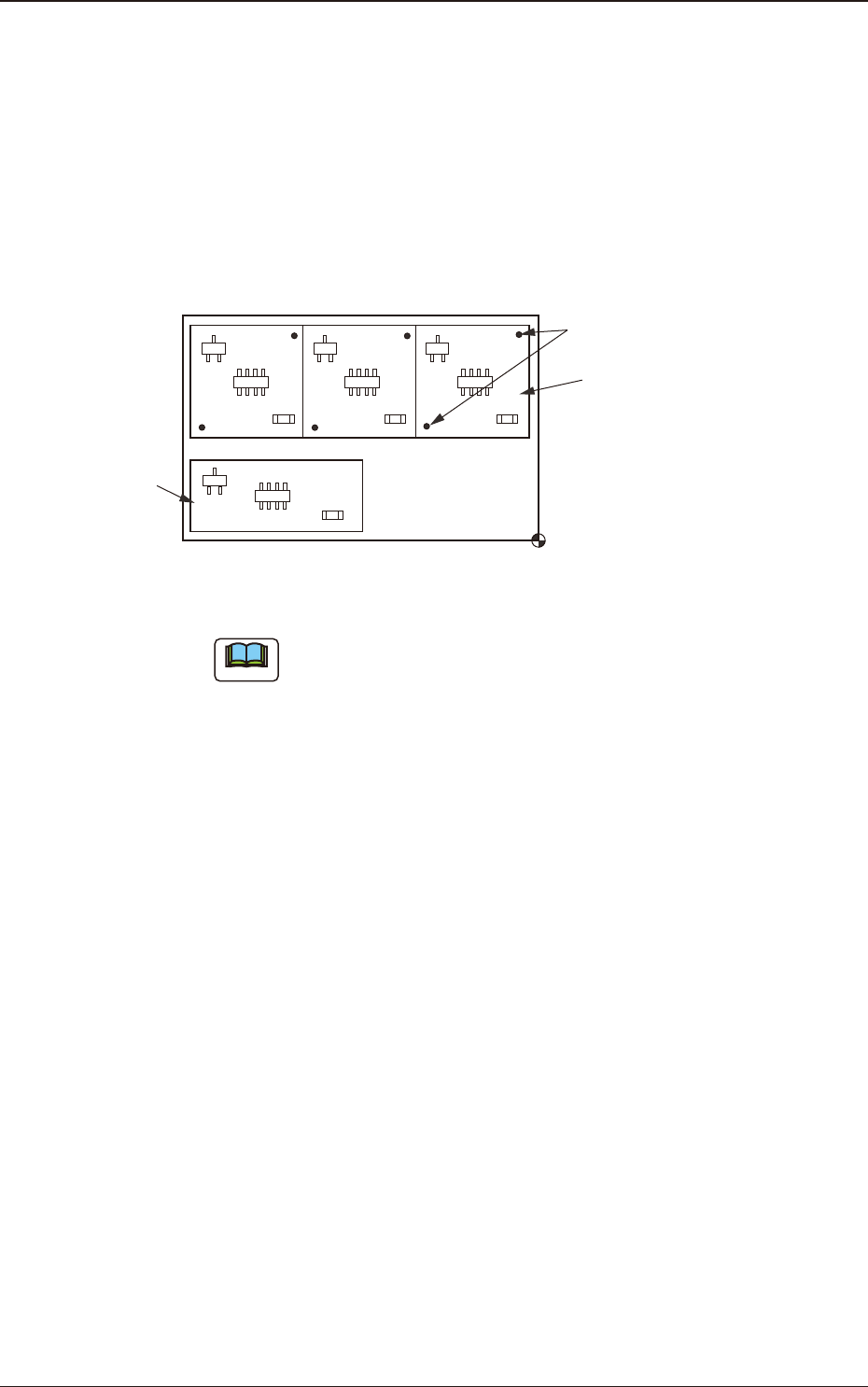

Select one of the following tabs (placement data groups) in one pattern

program.

U01

: First Placement Data Group

U02

: Second Placement Data Group

↓

: Up to 99 placement data groups can be specied.

U02

U01

Placement Coordinate

Reference

Fiducial Marks

F2B45

Note

(a) Use "U01" in normal cases.

(b) The operation and feeder location data are used commonly.

1303-001

3.7 Placement

2OM-1751

2-57

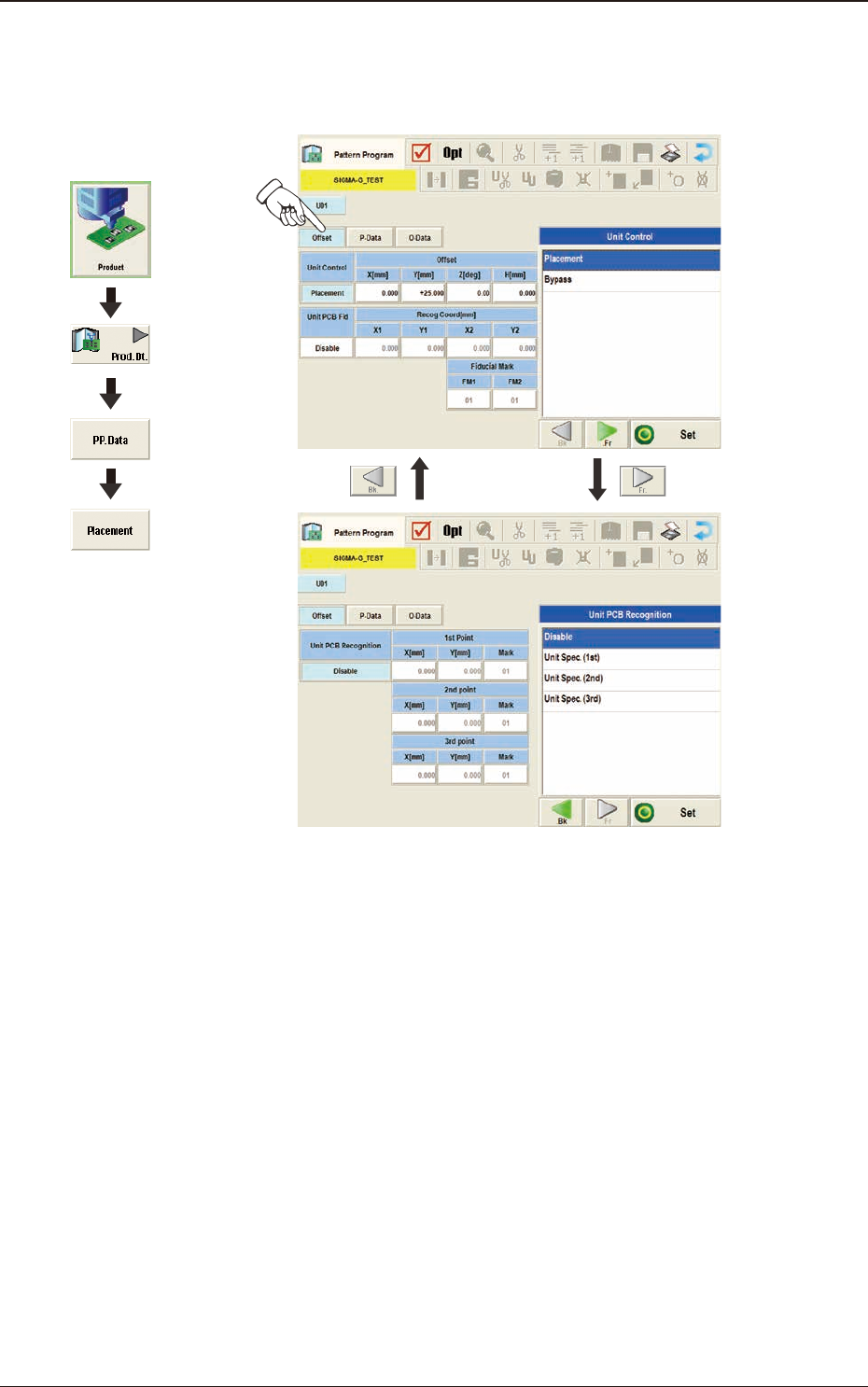

(G02) Offset

When the [Offset] button is pressed in the "Placement" window, the

following tab sheet appears.

F2B46

(G02_01)

Unit Control

Select one of the following options to determine whether the selected

placement data should be used.

In normal cases, select "Placement".

Placement

: The placement data of the selected unit (group) becomes valid.

Bypass

: The placement data of the selected unit (group) becomes

invalid.

1303-001

3.7 Placement
